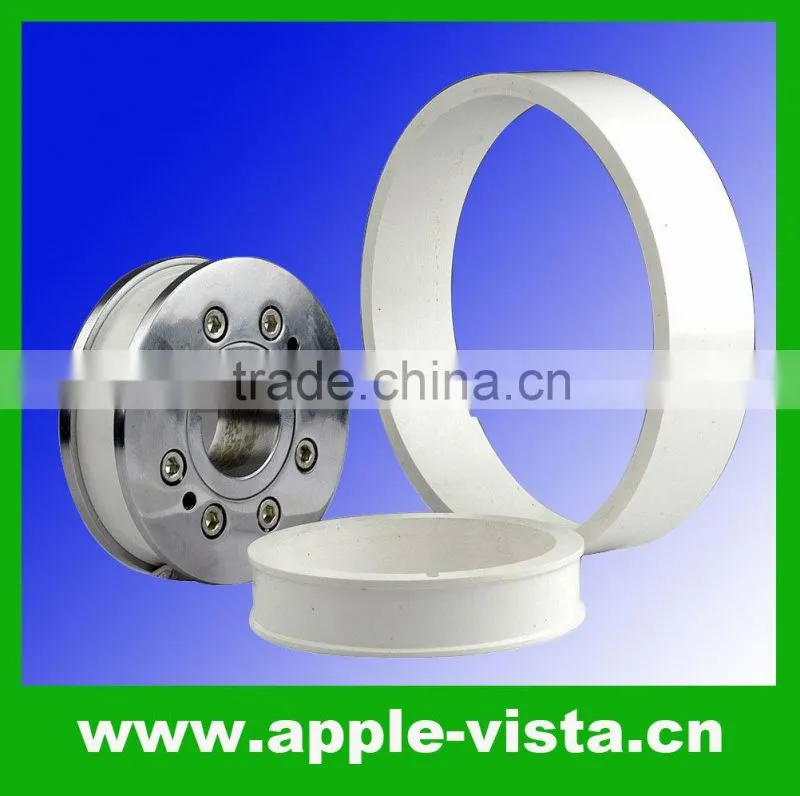

White Zirconia Pulley for Wire Cable Drawing Machine, Ceramic Rings for Wire Cable Drawing, Assembled Cone Capstans

US$ 19.8 - 298 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

AVW210020

Shenzhen Apple Vista Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AV

Model Number AVW210020

Specifications

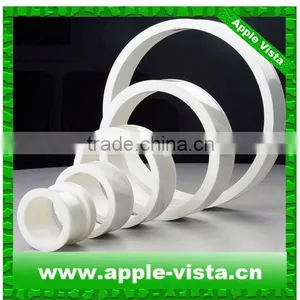

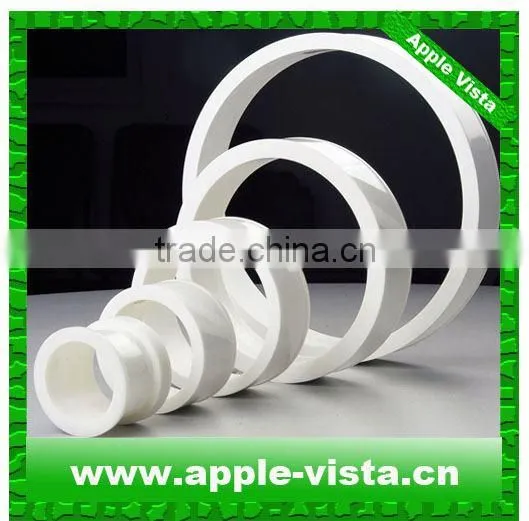

Zirconia pulley
1.Zirconia ceramic
2.High hardness, stability
3.Excellent wear resistant
4.Diamond fine polished

Item:	Wire drawing zirconia pulley/rings
Pulley material	Zirconia ceramic/ zirconium oxide
Structure:	/
Forming method	Sintering
Dimension	Customized/ODM
Process:	Diamond fine polishing working surface
Application	For ferrous/nonferrous, fiber wire drawing.
Feature	High hardness, good wear/corrosion resistance,
	well thermal endurance, excellent polishability,etc.
Serve Life	Durable
Sample	Yes
Place of origin	China

CERAMIC PROPERTIES:
* Outstanding hardness/ strength
* Well Surface Finish
* High Corrosion Resistance
* High fracture toughness
* Low coefficient of thermal expansion
* Low heat conductivity

ZIRCONIA CERAMIC PERFORMANCE PARAMETER FOR REFERENCE:
Density: 5.5-6.05 g/cm3
Bending strength: 1100 Mpa
Fracture toughness: 12 Mpa.m1/2
Hardness: 88-90 HRA
Modulus of elasticity: 220 Gpa
Coefficient of linear expansion: 6.5-11.2 x10-6/k
Minimal residual unbalance of up to: ≤0.8 Gmm/kg
Unbalance reduction rate: ≥85%

Here We supply wire drawing pulleys: Cones, Guides pulleys, Rings, Rollers, multi grooved rollers, etc. Spraying material: Chrome oxide ceramic, Tungsten carbide, etc. Sintering material: Zirconia ceramic, Alumina ceramic, etc. To offer you the most suitable pulleys, kindly advise the following info: 1, Your drawing/design? 2, Pulley material? 3, Wire material? 4, Qty for each size? 5, Wire machine's brand? 6, Other requirements?(e.g.: polishing grade, hardness, etc.) Thank you for your time!
