Russian Zirconia Ring for Big Wire Drawing Machine; Industrial Ceramic Assembled Cone Pulley

US$ 98 - 298 MOQ: 2 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Type:

Ceramic Rings

Application:

Industrial Ceramic

Shenzhen Apple Vista Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Type Ceramic Rings

Application Industrial Ceramic

Material Zirconia Ceramic

Model Number AVL-2012004

Brand Name AVL

Specifications

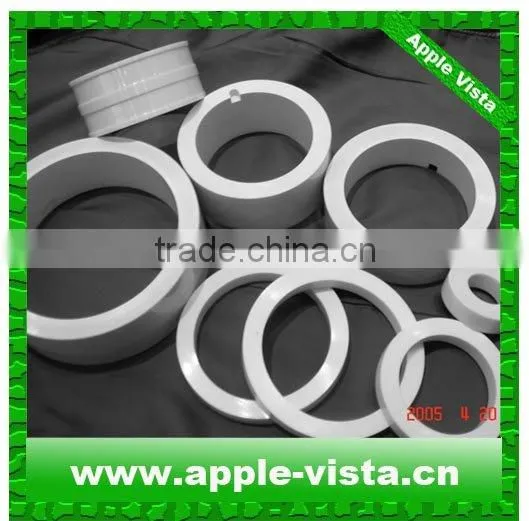

Zirconia rings
1.High purity zirconia ceramic
2.Diamond fine polished
3.Wear/corrosion resist
4.Customized

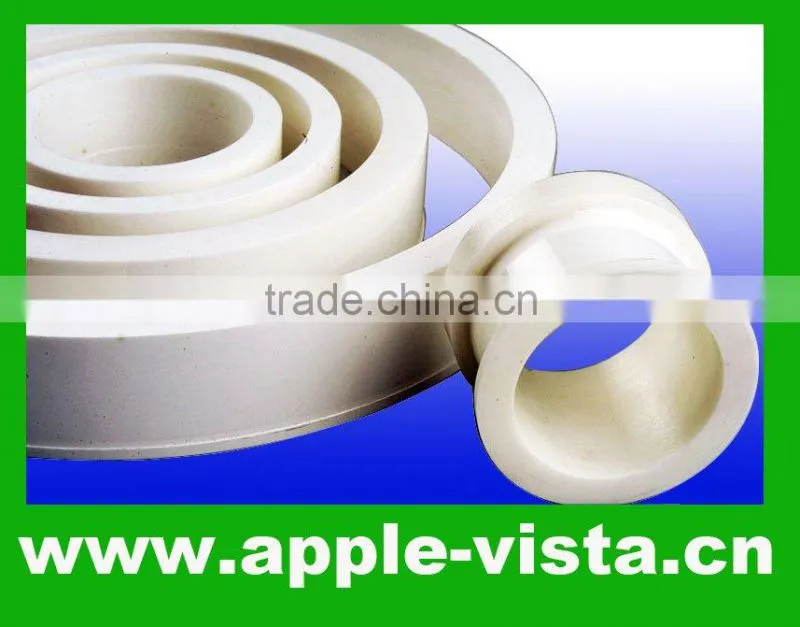

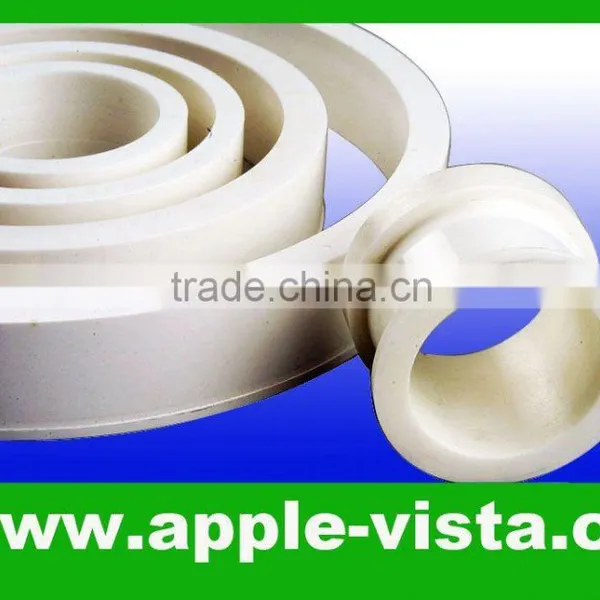

Russian zirconia ring for big wire drawing machine; industrial ceramic assembled cone pulley

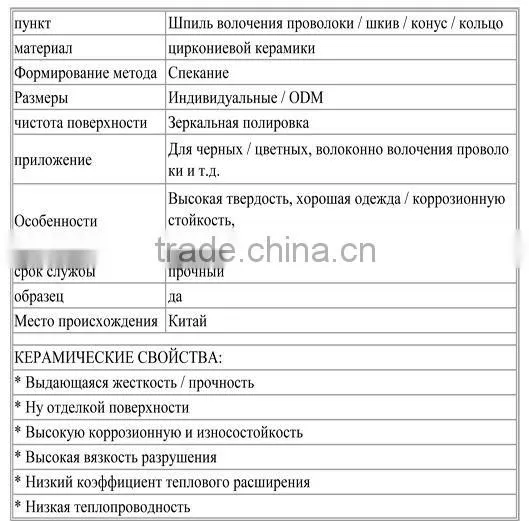

Item	Wire drawing ring for big wire drawing machine
Material	Zirconia ceramic
Forming method	Sintering
Dimensions	Customized/ODM
Surface finish	Diamond fine polishing
Application	For ferrous/nonferrous, fiber wire drawing.
Features	High hardness, good wear/corrosion resistance,
	well thermal endurance, excellent polishability,etc.
Service Life	Durable
Sample	Yes
Place of origin	China

CERAMIC PROPERTIES:
* Outstanding hardness/ strength
* Well Surface Finish
* High Corrosion Resistance
* High fracture toughness
* Low coefficient of thermal expansion
* Low heat conductivity

ZIRCONIA CERAMIC PERFORMANCE PARAMETER FOR REFERENCE:
Density: 5.5-6.05 g/cm3
Bending strength: 1100 Mpa
Fracture toughness: 12 Mpa.m1/2
Hardness: 88-90 HRA
Modulus of elasticity: 220 Gpa
Coefficient of linear expansion: 6.5-11.2 x10-6/k
Minimal residual unbalance of up to: ≤0.8 Gmm/kg
Unbalance reduction rate: ≥85%

We supply ceramic wire drawing pulleys: Cones, Capstans, Rings, Rollers, etc. Spraying material: Chrome oxide ceramic, Tungsten carbide, etc. Sintering material: Zirconia ceramic, Alumina ceramic, etc. To offer you the most suitable items, kindly advise the following info.: 1. Your drawing/design? 2. Pulley material? 3. Wire material? 4. Qty for each size? 5. Wire machine's brand? 6. Other requirements?(e.g.: polishing grade, hardness, etc.) Inquries are welcome.
