Help CenterTungsten Carbide Wire Drawing Dies
Related Products
-
High Quality Tungsten Carbide Wire Drawing DiesUS$ 12 - 1,000MOQ: 1 Piece -
Free Shipping Wire Drawing Dies AVWDD110917US$ 5 - 200MOQ: 5 Pieces
-
Custom Square Drawing DieUS$ 19 - 1,000MOQ: 1 Piece
-
Extrusion Dies for Steel and CopperNegotiableMOQ: 2 Pieces
-
Aluminium Extrusion DiesUS$ 3.98 - 198MOQ: 5 Pieces
Specifications
can be made by your requirement,100% virgin powder
long working life
Material: Tungsten Carbide
Certificate: ISO9001
can be made by your requirement
Fetures:
1.Very high wear resistance ,hardness
2.Long life,short delivery time
3.Can offer OEM
4.Best price
5.Free shipping
6. 100% virgin powder.
7. can drawing copper, iron, steel , and other metals.
8. Can offer both blank and finishing with casting.
---------------------------------------------------------------------------------------------------

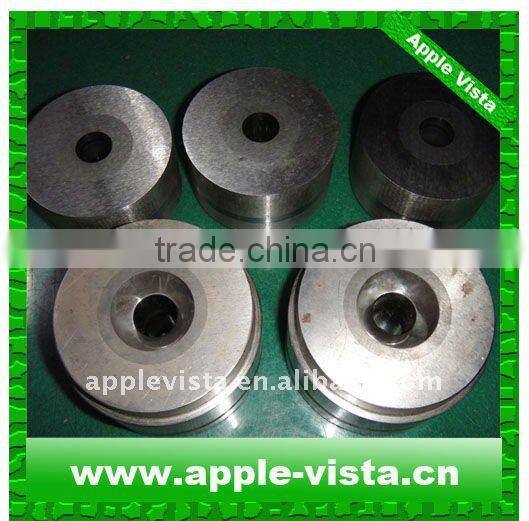

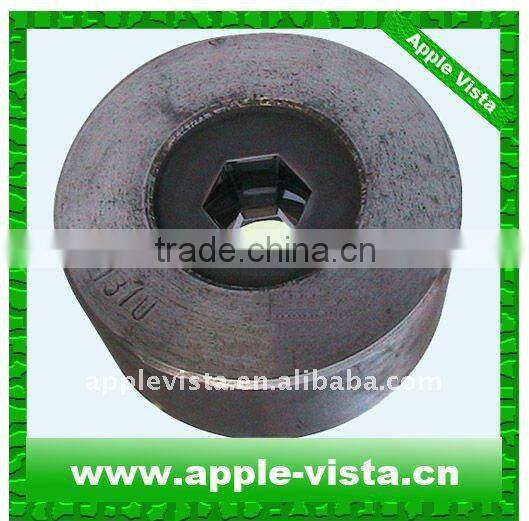

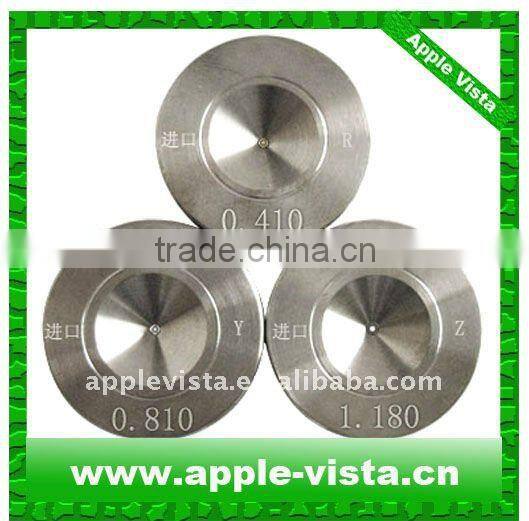

Carbide drawing dies
Tungsten carbide drawing dies are used in wire drawing industries for drawing of different materials like Mild Steel (M.S), High Carbon (H.C), Stainless Steel (S.S), Brass, Aluminum, etc. All major wire producers use tungsten carbide drawing dies. We can supply different dies, such as drawing die, punching die, extrusion die, cold heading die, which are fully finished or rough cored - cased or uncased, to meet client’s exact requirements
----------------------------------------------------------------------------------------------------
.---------------------------------------------------------------------------------------------------------
| Carbide grade for drawing dies | |||||||||||||||||||||||||||||
|

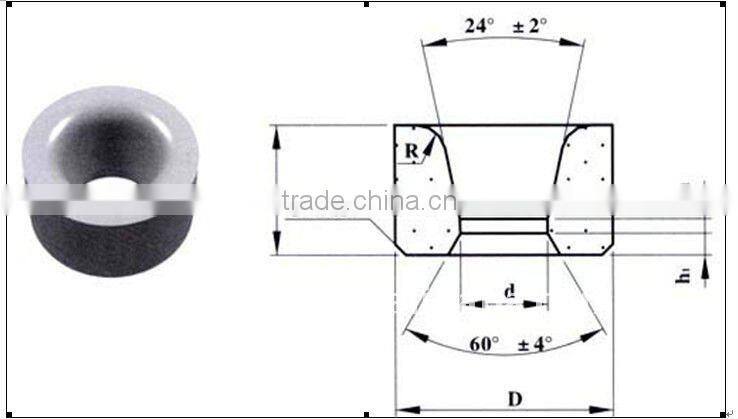

1.Structure of dies:
The hole of the wire drawing dies is made up of four parts:
*Lubricating area of the entry: There is an arc to make the wires enters to the workaround conveniently.
*The workaround: The metals come about plastic deformation while drawing, the cross section of the metals is compressed and reduced.
2. Material source:
The die materials imported from U.S.A. GE company. Each one has trade marks and certificate of company. Granularities are 351025.
3. The production and delivery will take 3-25 days.
4. Usage time: the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.
Draing Dies Parameters(unit: mm)
Hole SizeΦd |
Hole Size |
Ovality |
Casing |
Φ0.100~0.200 |
≤0.0015 |
≤0.0008 |
Φ25×8 |
Φ0.201~0.400 |
≤0.0020 |
≤0.0010 |
Φ25×8 |
Φ0.401~0.500 |
≤0.0025 |
≤0.0015 |
Φ30×10 |
Φ0.501~0.750 |
≤0.0030 |
≤0.0020 |
Φ30×10 |
Φ0.751~1.50 |
≤0.0035 |
≤0.0025 |
Φ37×12 |
Φ1.501~2.00 |
≤0.0050 |
≤0.0030 |
Φ37×12 |
Φ2.001~3.00 |
≤0.0070 |
≤0.0050 |
Φ41×20 |
Φ3.001~4.60 |
≤0.010 |
≤0.0080 |
Φ41×20 |
Φ4.601~8.00 |
≤0.015 |
≤0.012 |
Φ41×24 |
