Specifications
drawing dies blank1.good durability
2.high efficiency
3.perfect characteristics of crack proof
4.smoothness,durability
drawing dies blank,wire drawing dies,Natural Diamond Mold,Natural Diamond Wire Drawing Die,Tin titanium alloy shell mold,High-precision Polycrystalline Wire Draw,Synthetic Diamond Wire Drawing Die,Wire Drawing Die Gaojing,Polycrystalline Wire Drawing Die,CVD Wire Drawing Die,Wire Drawing Die CD,PCD Wire Drawing Die,CXD Wire Drawing Die,Wire Drawing Die SFCD,Paint mode,Extrusion Die (driven mode),Extrusion Die pressed mold drawings,Carbide circular mode,Flat side Carbide Die
---------------------------------------------------------------------------------------------------

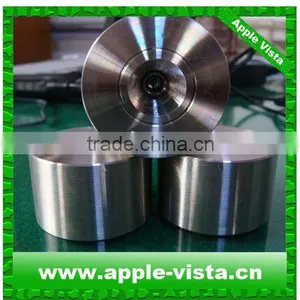

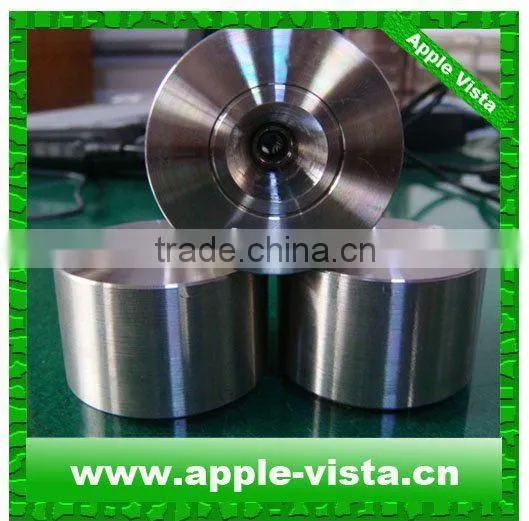

Polycrystalline Wire Drawing Dies
Polycrystalline is a kind of synthetic material which combines the advantages of perfect surface finish, minimum friction and high wear resistance. Drawing dies made of polycrystalline nibs will give good roundness of the wire drawn. And you can draw more kilograms of wire before you need to re-cut the die because the wear on the die is even and predictable, you know exactly when the die needs to be re-cut, minimizing costly scrap and maximizing product quality.
Dia of Hole: 0.05-12.00mm
Advantages:
1. good durability
2. high efficiency
3. a wide range of grain and nib sizes
4. perfect characteristics of crack proof
5. smoothness, durability predicted
Applications:
Nonferrous wire, including copper, aluminum, electromagnetic wire and stainless steel
Natural Diamond Wire Drawing Dies
Natural diamond dies produce the finest quality wire and are the most expensive. The core of a natural diamond die is made using industrial grade diamond stones that are mined from the earth. Each stone is selected, cut and sorted into a workable size.
The downside with natural diamond dies is that they wear unevenly and this has an adverse effect on the useful life of the die. The uneven wear is because of undetectable defects in the natural diamond stone.
Dia of Hole:
0.025-1.800mm
Applications:
Natural diamond dies are mostly used for final sizes and for producing very fine wires. They are also used for producing wires of excellent surface finish.
CD Wire Drawing Dies
Our technical expertise in CD enables development of the unique material used in our wire dies. Currently dies are available with blanks sizes D6 through D30. D6, D12, D15, and D18 are offered in free standing; D15 through D30 are offered with a tungsten carbide support ring. They have not only high wear resistance, hardness and thermal conductivity, but also high mechanical strength and tenacity.
Die Parameters(unit: mm)
Hole SizeΦd |
Hole Size |
Ovality |
Casing |
Φ0.100~0.200 |
≤0.0015 |
≤0.0008 |
Φ25×8 |
Φ0.201~0.400 |
≤0.0020 |
≤0.0010 |
Φ25×8 |
Φ0.401~0.500 |
≤0.0025 |
≤0.0015 |
Φ30×10 |
Φ0.501~0.750 |
≤0.0030 |
≤0.0020 |
Φ30×10 |
Φ0.751~1.50 |
≤0.0035 |
≤0.0025 |
Φ37×12 |
Φ1.501~2.00 |
≤0.0050 |
≤0.0030 |
Φ37×12 |
Φ2.001~3.00 |
≤0.0070 |
≤0.0050 |
Φ41×20 |
Φ3.001~4.60 |
≤0.010 |
≤0.0080 |
Φ41×20 |
Φ4.601~8.00 |
≤0.015 |
≤0.012 |
Φ41×24 |
,
