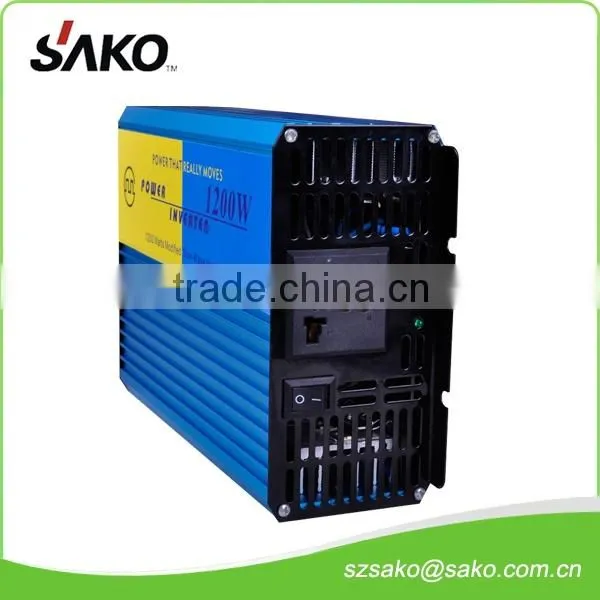

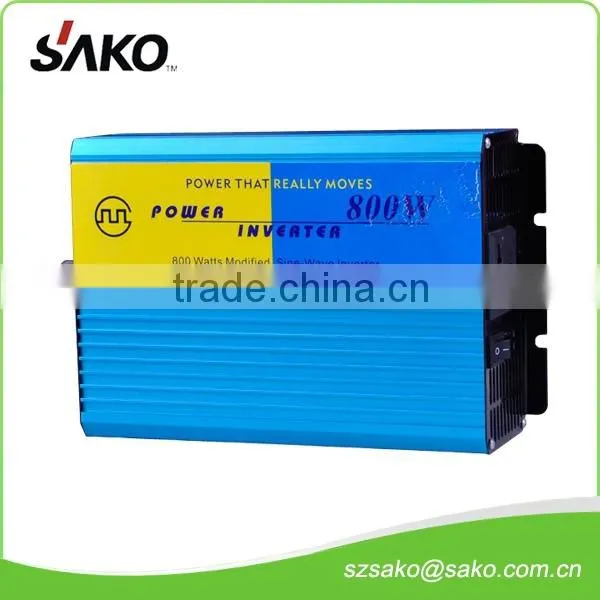

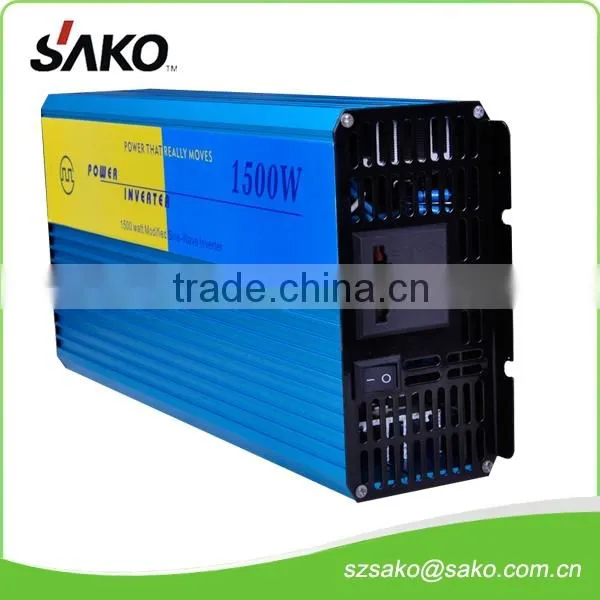

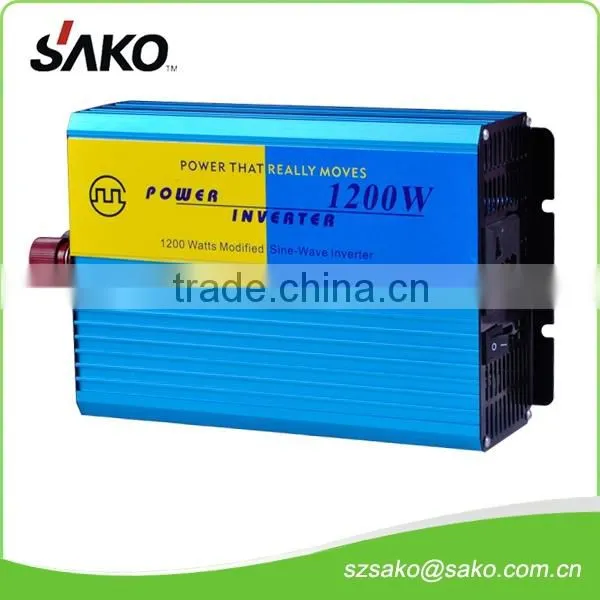

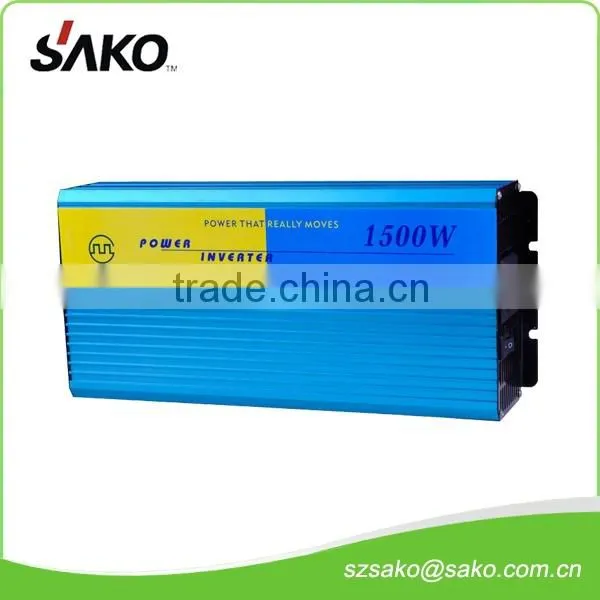

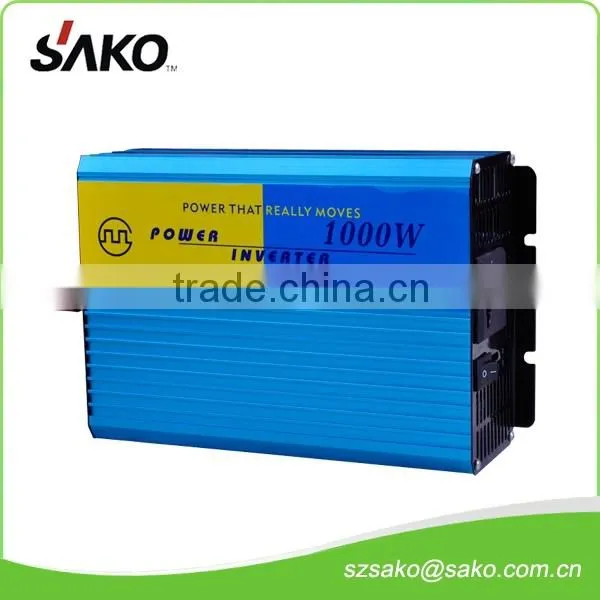

SKI Modify Sine Wave Inverter

SKI Modify Sine Wave Inverter thumbnail-1
SKI Modify Sine Wave Inverter thumbnail-2
SKI Modify Sine Wave Inverter thumbnail-3
SKI Modify Sine Wave Inverter thumbnail-4
SKI Modify Sine Wave Inverter thumbnail-5
SKI Modify Sine Wave Inverter thumbnail-6
SKI Modify Sine Wave Inverter photo-1
SKI Modify Sine Wave Inverter photo-2
SKI Modify Sine Wave Inverter photo-3
SKI Modify Sine Wave Inverter photo-4
SKI Modify Sine Wave Inverter photo-5
SKI Modify Sine Wave Inverter photo-6
US$ 10 - 150 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO or OEM brand
Model Number:
SKI-75W-5000W
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAKO or OEM brand
Model Number SKI-75W-5000W
Phase Single Phase
Protection Other, short circuit,overload,overheat
Weight 0.25-15.5KG
Output Voltage 110-120V/220-240V+/-10%
Type Other, inverter without AC charger
Application Other, Car
SAKO SKI SERIES TECHNICAL PARAMETER
MODEL Model1 Model 2 Model 3 Model 5 Model 7 Model 8 Model 9 Model 10 Model 11 Model 12 Model 13 Model 14 Model 15 Model 16
SPECIFICATION
Max Long Term Power Output (W) 75W 120W 150W 300W 500W 600W 800W 1000W 1200W 1500W 2000W 2500W 3000W 5000W
Spike Output Power (Peak) (W) 150W 240W 300W 600W 1000W 1200W 1600W 2000W 2400W 3000W 4000W 5000W 6000W 10000W
Input Voltage Range (VDC) DC 10V-14.5V or 20V-29V
Output Voltage Range (VAC) AC 110-120V / 220-240V
Output Frequency (Hz) 60±3Hz / 50±3Hz
Output Waveform Modified Sine Wave
Optimum Efficiency More Than 90.5%
No Load Current Draw (A) <=0.4A <=0.25A <=0.25A <=0.3A <=0.4A <=0.45A <=0.5A <=0.5A <=0.6A <=1.0A <=1.0A <=0.6A <=0.6A <=1.0A
Cooling Fan Yes
Input Over Voltage Shutdown (VDC) DC 14.5-15.8V or 29-31.6V
Input Under Voltage Shutdown (VDC) DC 10.0V or 20V±0.5V
Overload Shutdown Yes
Operating Temperature Range 0°C ~ 55°C Degree
Storage Temperature Range 0°C ~ 60°C Degree
Test Mark CE
Products Size (mm) 120*105*55 mm 150*105*55 mm 210*150*70 mm 310*150*70 mm 310*150*152 mm 485*210*127 mm
Products Weight N.W. (KG) 0.25 KG 0.27 KG 0.8±0.2 KG 0.9±0.2 KG 0.95±0.2 KG 1±0.2 KG 2.4±0.3 KG 2.6±0.3 KG 3.2±0.5 KG 3.5±0.5 KG 3.8±0.5 KG 7.2±0.5 KG 7.5±0.5 KG 15±0.5 KG
Qty/Carton (PCS) 50 PCS 50 PCS 16 PCS 16 PCS 16 PCS 16 PCS 6 PCS 6 PCS 4 PCS 4 PCS 4 PCS 2 PCS 2 PCS 1 PCS
Package L×W×H (cm) 47.5*29*57 cm 38*38*45 cm 35*44*42 cm 44*41.5*30 cm 54*27.5*51 cm 72*32*25 cm
Weight G.W. (KG/Carton) 15 KG 12.7 KG 14.6 KG 15.2 KG 16 KG 15 KG 15.4 KG 13.7 KG 14.2 KG 15 KG 15.5 KG 16 KG 16.2 KG
Qty In 20'FCL (PCS) 17500 PCS 6390 PCS 6370 PCS 2400 PCS 1895 PCS 705 PCS 477 PCS
