SKN-H Series H Igh Ferquency Home Inverer

SKN-H Series H Igh Ferquency Home Inverer thumbnail-1
SKN-H Series H Igh Ferquency Home Inverer thumbnail-2
SKN-H Series H Igh Ferquency Home Inverer photo-1

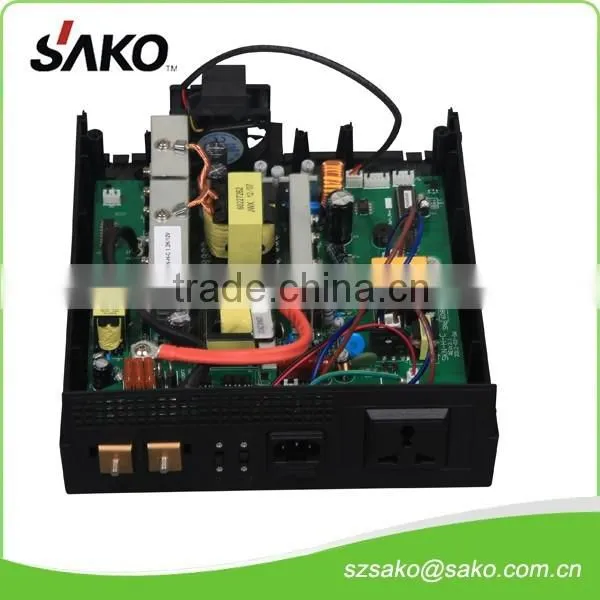

SKN-H Series H Igh Ferquency Home Inverer photo-2
US$ 35 - 85 MOQ: 200 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
500 - 2000VA
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SAKO
Model Number 500 - 2000VA
Output Power Other, >500W
Output Type Single
Size 350*128*310mm3
Weight 600VA:3.1kgs
Input Voltage 220V OR 110V
Output Voltage 220V OR 100V
Type DC/AC Inverters
Output Frequency 50/60Hz

SAKO SKN-H SERIES HIGH FREQUENCY HOME INVERTER
Micro Processsor Control
User selectable for accepting wider input voltage
Full automatic and silent operation
Automatic Line-to-Battery Switch over
Intelligent Automatic Charging Technology
Rack and Tower design
Automatic charge while AC recovery(off model charging)
High Efficient DC-to-AC conversion.minimizing energy loss
Over load,short circuit protection
Low battery protection
Cool start
Isolated output
Compatibility with generators
Multi-function  LED Display Design and buzzer alarms.
Application for Fan, light ,TV and office Appliances

Feature
Modified Sine Wave Inverter/Charger System
The Desirable Long Backup Power Solution For Home And Office Appliances.


MODEL
 SKN-H600 SKN-H1000 SKN-H1000 SKN-H1500 SKN-H2000
SPECIFICATION
DC INPUT
Input Voltage(Vdc) 12 12 24 24 24
Input DC Range(Vdc) 10~15 20~30
AC Bypass
Input AC Range(Vac) 110/120VAC or 120/230/240VAC
90-145VAC or 170-280VAC(Narrow Range)
50-145VAC or 90-280VAC (Wide Range)
Input Frequency(Hz) 50/60 HZ
Bypass Output Voltage(Vac) SAME AS INPUT AC
Bypass Output Frequency(Hz) SAME AS INPUT Frequency
Charge Current(A) 10A+/-2A
Charge Floating Voltage(V) 14.2 V+/-0.2V 28.4+/-0.4V
Over Charge Voltage(V) 14.8V±0.4V Charge stop 29.6 V±0.8V Charge stop
AC  Efficiency > 95%
Transfer Time(ms) Typical 15-20ms
AC OUTPUT (INVERTER)
Capacity(VA) 600 1000 1000 1500 2000
Output Power(W) 360 600 600 900 1200
Output Voltage 110/220VAC
Output Frequency 50/60HZ
Output Current(A) 2.7/1.6 4.5/2.7 4.5/2.7 6.8/4.1 9.1/5.5
Voltage Precision(VAC) 110/220±10%
Frequency Precision(HZ) 50/60Hz±0.5%
Wave  modify sine wave
Power Factor(PF) 0.6
Inversion Efficiency >85%
Over load capacity >120% +/-15% of rated R load, and fault after 20 seconds
PROTECTION
Protection over load/ short circuit protection
  Over charge , discharge protection
AMBIENT
Noise(dB) <=40 (1 mter)
Temperature -15~50 degree
Humidity 0~90% ( no condensation)
Sea Level(m) <=1500
DIMENSION
Package L×W×H(mm) 347*123*315mm/1pcs                 395*335*560mm/carton.6pcs
Weight(Kg) 3.095 3.595 3.26 3.75 3.9
