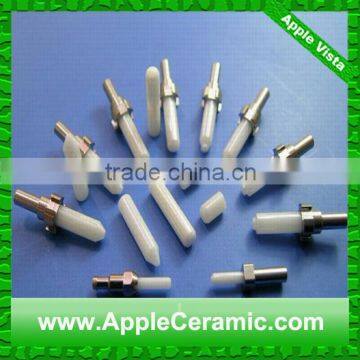

Standard ST SC LC Type Ceramic Tube for Fiber Optic Component

Standard ST SC LC Type Ceramic Tube for Fiber Optic Component thumbnail-3

Standard ST SC LC Type Ceramic Tube for Fiber Optic Component photo-1

Standard ST SC LC Type Ceramic Tube for Fiber Optic Component photo-2

Standard ST SC LC Type Ceramic Tube for Fiber Optic Component photo-3

US$ 0.8 - 10,000 MOQ: 30 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

AV-2015031713, SC,LC,ST,SC/FC/ST Ferrule,SC/FC.......

Contact Supplier Request Quote Chat Now

Shenzhen Apple Vista Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name AV

Model Number AV-2015031713, SC,LC,ST,SC/FC/ST Ferrule,SC/FC.......

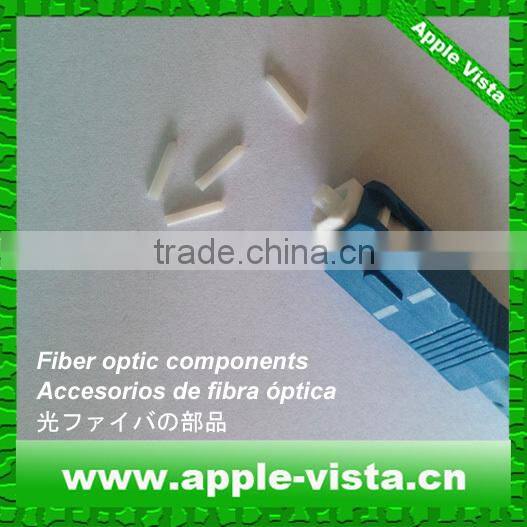

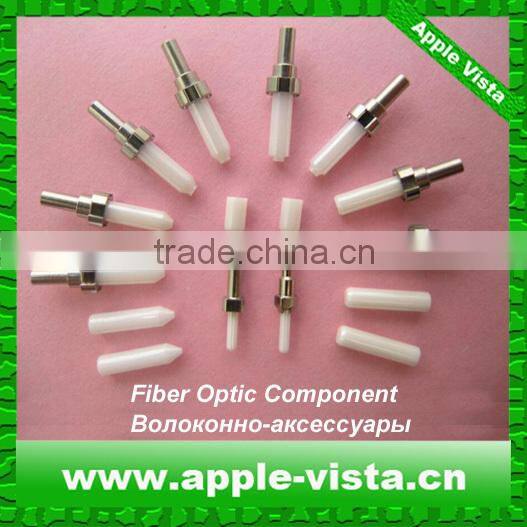

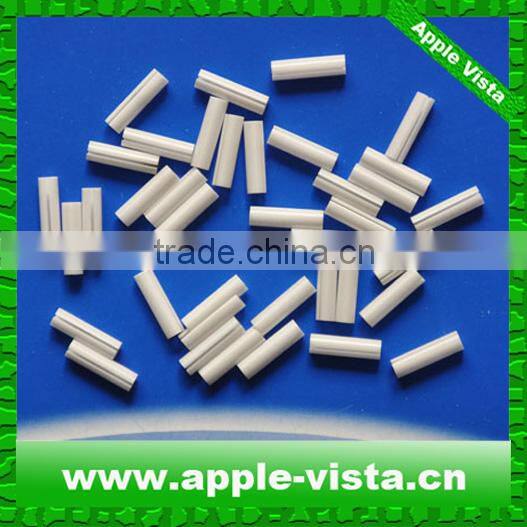

Standard ST SC LC type ceramic tube for Fiber Optic Component

Product Description

ceramic ferrule Feature

1.Good Concentricity and Dimensional accuracy.

2.High Strength and Endurability,Good Anti-aging Performance.

3.Low Insertion Loss and High Pull Out Performance.

4.Optimized for SC, FC, ST connector
5.High quality and performance
6.High precision for concentricity, I.D., O.D.
7.Low insertion loss
8.High reliability by using zirconia
9.Compliant with RoHS and Telcodia-GR-326-CORE
10.SC ferrule SM & MM available

Brief Introduction

Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.

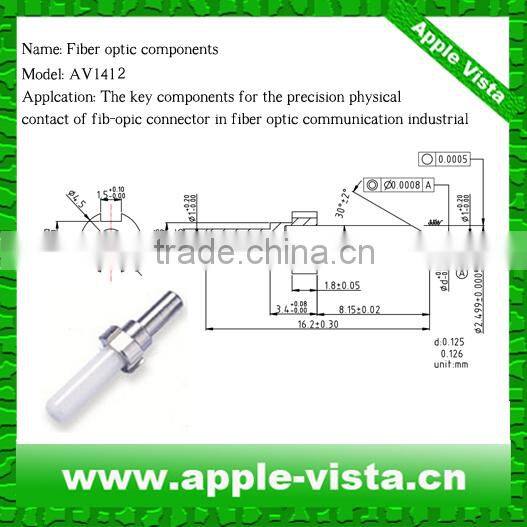

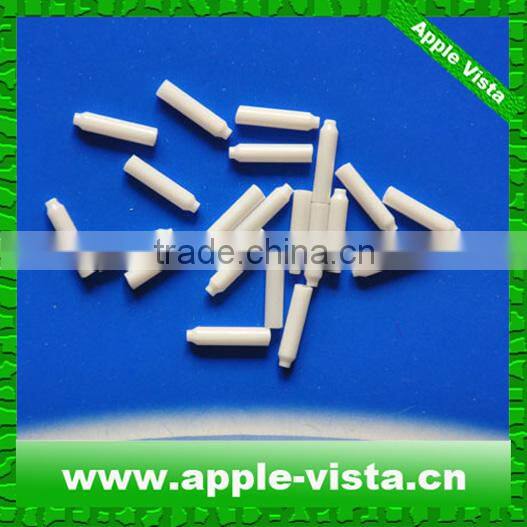

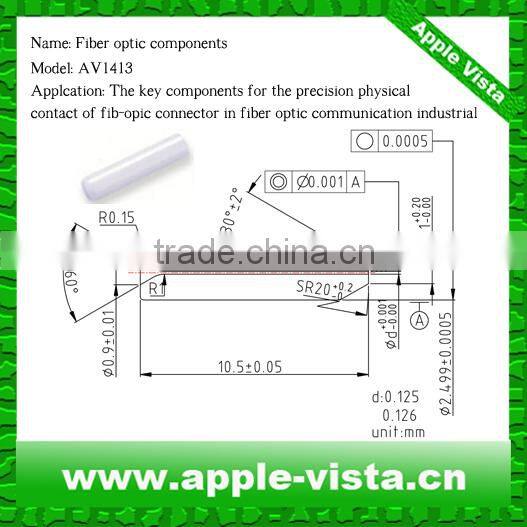

Non-standand Ceramic Ferrules O.D.: 0.7- 3.5mm; I.D.: 0.08- 0.515mm; Length:3.0-27.0mm. We can also produce other customized ferrule.

Materail
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu

All fiber stubs and receptacles are customizable.

Application

1) SC,FC, ST, MU,LC Connectors

2) WDM

3) CATV, LAN, FTTX

4) Data Network

5) Telecommunication

6) Used in the active and passive components

Technical parameters

Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9
