Specifications
Anilox rollers1.good transitivity of printing ink
2.long effective life time
3.stable printing quality
4.customized

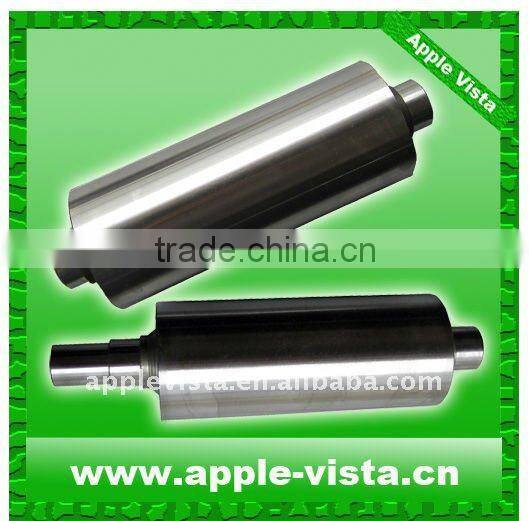

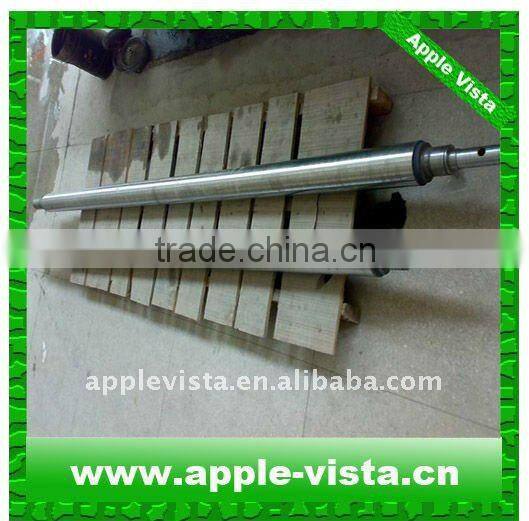

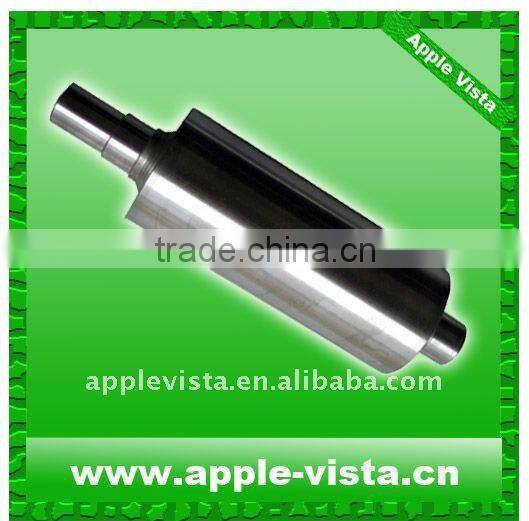

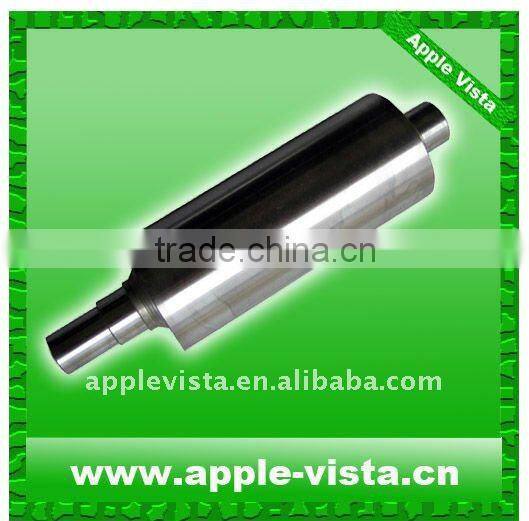

Excellent ceramic coating anilox rollers
Ceramic coating anilox rollers,Printing machinery rollers,Flexo Printing Machine rollers,Flexo Printing Machinery rollers,Flexo Machinery rollers,Flexo Machines rollers,Printing Machines rollers,Flexographic Printing Machine rollers,Paper Printing Machine rollers
Film Printing machine rollers,Plastic printing machine rollers,aluminium foil printing machine rollers,tube printing machine rollers,sheet roll printing machine rollers,packaging machine rollers,packing machine printer rollers,printing equipment rollers
Specifications
Coating Ceramic Anilox Roller
1.Screen angle 1-89 degree
2.Diameter range 25-500 mm
3.LPI can be 80-2000
Coating Ceramic Anilox Roller
Specifications and Parameters
1. Screen count range : 80-2000 LPI
2. Maximum width : 3800mm 4250mm ( with axis)
3. Diameter range :25-500 mm
4. Screen angle : 1-89 degree

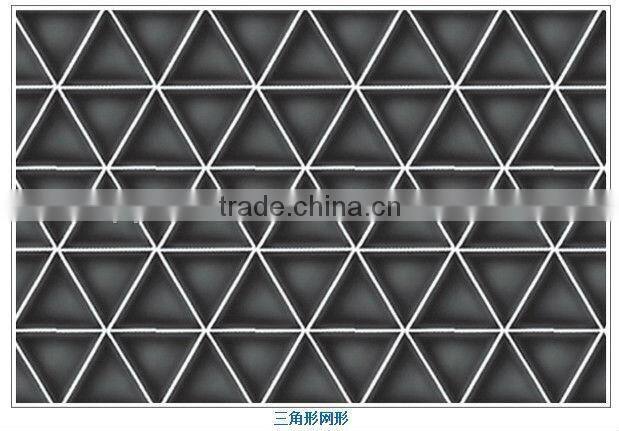

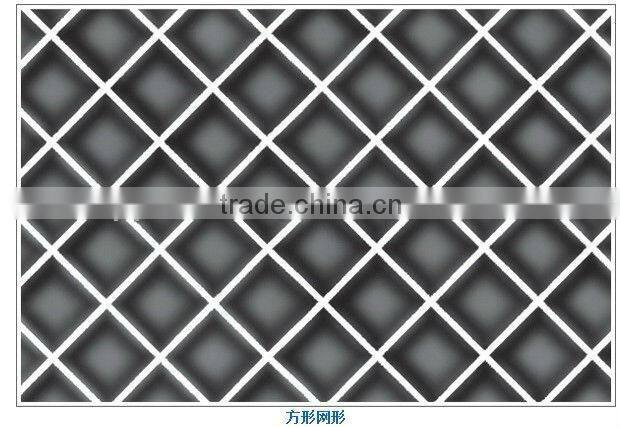

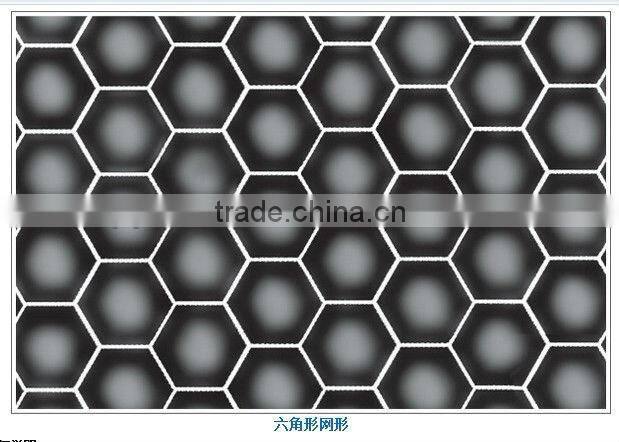

5. Cell shape : hexagon , quadrangle and line , etc and the many morn cell shapes may meet your requirement .
Main Features
1. Anti-fraying , Anti-corrosive , Thermostability, Long-life service and cost-sacing .
2. The cell engraved by ALE fiber laser engraving machine , has a large quantity of ink-containing .
And the cell has a regular shape and a smooth cell-wall and cell-bottom . Thus , not only can the ink in the cell release quickly , but also it can easily to clean .
3. Taking strict process of plasma-sprayed ceramic layer , guarantees the porosity , the thickness and the uniformity of the layer .
4. Combined with the super-alloy stainless steel layer to ensure the solid combination of the ceramic layer and the roller base . So , it can present the corrosive substance of the printing ink to plug into the roller base effectively .
5. Providing all the products the cell-volume detecting report to ensure the accuracy of the cell’s ink-containing .
Processing Flow
Based-roller Processing → Sandblasting Treatment → Nickel-chromium Alloy Coating →
Chromium Oxide Ceramic Layer → Carborundum Grinding → Carborundum Polishing
→Laser Engraving → Polishing and Cleaning
Application
1. Flexographic Printing, Lithography Printing , Gravure Printing
2 .Flexible Packing
3. Label , Envelope , Paper Forms , Handbag
4. Corrugated Box
5. Plastic Film, Coated Paper Products, Glazing
6.Wallpapers , Wooden-patterned Paper , etc .
