JUNLIN QUALIGTY XK-450HL Rubber&plastic two roller open Mixing Mill
1.introduction of two roll rubber open mixing mill:
1.Rubber kneader with completely sealed condition,materials are mixed or plasticated under certain pressure,controllable temperature ,which makes high production effciency and obtains excellent quality.
2.Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.
3.Surface where is contacted with the materials are all platedwith hard chromium and polished,which is corrosion-resistantand wear-resistant.
4.Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.
5.Feeding from back door on the frame (or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the frond rotors to discharge and is easy for changingpigments and cleaning the chamer.
6.Programmable logic controller (PLC) is adopted in theelectric-control system,which has reliable control function andalarm function,and interlock safety-protection function and itis procded with serial interface of net.
2.Features of two roll rubber open mixing mill
1.The roll is made of chilled cast iron of vanadium and titanium alloy,so the surface is hard and wearable;the internal processing can make the temperature of the roll surface well proportioned.
2.This machine has overload protection devices,and the major components can't be damaged because of over loading.
3.Perfect emergency stop device can ensure the safety of personnel and equipment.
4.Stock pan is easy to clean up with dislodging device.
5.The transmission system adopts higher hard tooth flank dual axis reducer,which has compact structure,low noise and high efficiency.
6.Human nature designed operating system reduces labor intensity.
3.Paramaters of two roll rubber open mixing mill:
Type |
Xk-160 |
Xk-250 |
Xk-300 |
Xk-400 |
Xk-450 |
Xk-560 |
Xk-660 |
Working diameter of rolls(mm) |
160 |
250 |
300 |
400 |
450 |
560 |
660 |
Working length of rolls(mm) |
320 |
620 |
750 |
1000 |
1200 |
1530 |
2130 |
Front roll surface speed(m/min) |
8.95 |
14.1 |
15.1 |
18.65 |
24.26 |
27.72 |
28.6 |
Friction ratio |
1:1.35 |
1:1.17 |
1:1.27 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.24 |
Max.nip(mm) |
4.5 |
8 |
8 |
10 |
15 |
15 |
15 |
Capacity per.batch(kg) |
1-2 |
8-15 |
15-20 |
18-35 |
25-50 |
35-50 |
165 |
|
Motor power (kw) |
5.5 |
18.5 |
22 |
37 |
55 |
90 |
245 |
Overall dimension(mm |
1380*860 *1320 |
3400*1500 *1800 |
3580*1550 *1695 |
4350*1850 *1785 |
5200*2380 *1840 |
5845*2284 *1978 |
7465*3662 *2080 |
4.Picture of two roll rubber open mixing mill:
Our service:
One year guarantee for whole machines
24 hours technical support by email
Calling or door - to -door service.
Provide videos for each machine.
we will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled.

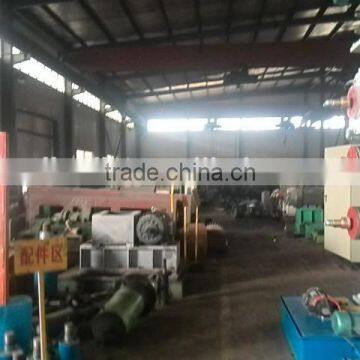

Our workshop and factory:
High quality turning mill
Welcome to send inquiry and visit us to check the quality!
