Home > Products > Flange Adapter & Couplings > Stainless Steel Quick Locking Pipe Coupling

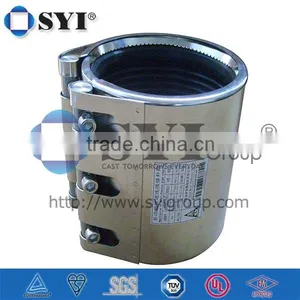

Stainless Steel Quick Locking Pipe Coupling
- 1500 Ton / Tons per Month
- Xingang
- T/T Credit Card
Product Details
Material: | Stainless Steel | Technics: | Other, stamping | Type: | Coupling |
Place of Origin: | Shanxi, China | Brand Name: | SYI | Connection: | Other, coupling |
Shape: | Equal | Head Code: | Other, round |
Packaging Details
Standard export wooden case, wooden pallets or 100% as per your requirements
Product Description
Welcome to SYI Group
quick pipe clamp - SYI Group
About Our SYI quick pipe clamp - SYI Group :
SYI is keeping on designing the series of coupling products for pursuing the better performance and easier operation.
New design and patterns could be developed based on customers' requirement.
O.D | Out-dia range (mm) | Length (mm) | Setting Gap W (mm) | Working Pressure | (N.m.) | Weight (kg) | |||
(mm) | short | long | short | long | Mpa | short | long | ||
42 | 42-44 | 57 | 15±10 | 30±25 | 2.5 | 5-10 | 0.3 | 0.5 | |
48.6 | 47-49 | 57 | 100 | 15±10 | 30±25 | 2.5 | 5-10 | 0.32 | 0.5 |
60 | 59-62 | 80 | 139 | 20±15 | 45±40 | 2.5 | 5-10 | 0.7 | 1.2 |
76 | 75-78 | 80 | 139 | 20±15 | 45±40 | 2.5 | 5-10 | 0.73 | 1.3 |
89 | 88-92 | 107 | 203 | 25±20 | 60±55 | 1.6 | 15-20 | 1.4 | 2.7 |
108 | 106-110 | 107 | 203 | 25±20 | 60±55 | 1.6 | 15-20 | 1.6 | 3.1 |
114 | 112-116 | 107 | 203 | 25±20 | 60±55 | 1.6 | 15-20 | 1.6 | 3.4 |
140 | 137-143 | 116 | 203 | 30±25 | 60±55 | 1.6 | 25-30 | 2.5 | 4.8 |
159 | 157-170 | 116 | 203 | 30±25 | 60±55 | 1.6 | 25-30 | 2.9 | 5.6 |
168 | 166-170 | 116 | 203 | 30±25 | 60±55 | 1.6 | 25-30 | 2.9 | 5.8 |
219 | 217-221 | 155 | 255 | 30±25 | 60±55 | 1.2 | 40-80 | 6.2 | 10.7 |
273 | 271-275 | 155 | 255 | 30±25 | 60±55 | 1.2 | 40-80 | 7.2 | 10.7 |
325 | 323-327 | 155 | 255 | 30±25 | 60±55 | 1 | 80-120 | 8.5 | 14.9 |
377 | 375-381 | 155 | 255 | 30±25 | 60±55 | 1 | 80-120 | 10.2 | 15.2 |
426 | 424-428 | 155 | 255 | 30±25 | 60±55 | 0.8 | 80-120 | 11.3 | 17.6 |
480 | 476-484 | 155 | 255 | 30±25 | 60±55 | 0.8 | 80-120 | 12.1 | 18.2 |
530 | 526-534 | 155 | 255 | 30±25 | 60±55 | 0.8 | 120-150 | 13.2 | 21.5 |
About SYI Group Information :
Specialist in Municipal, Drainage & Machinery Products & Services
SYI is GroupGroup Companies have served the society for over 20 years with best Municipal, Drainage and Machinery products.
SYI is the Specialist in Municipal, Drainage & Machinery Products & Services, including pipes, fititngs,couplings, valves, manhole covers, bollards, and OEM products in different materials ,sizes and technical processes.
Our aim is to provide all of our customers with VALUE of the products in stead of only low prices!
About SYI Couplings :
Specialist in Pipeline and Construction Products & Services!
- Universal Couplings,
- Universal Flanged Adaptors,
- Straight Couplings,
- Straight Flanged Adaptors,
- Large Range Couplings
- Quick Adaptors,
- Dismantling Joints,
- Clamps,
- Couplings Products Designed By SYI.
quick pipe clamp- SYI Group
Manufacture Process & Quality Control :
- Manufacture Process:
Pattern Making | Sand Mixing | Moulding |
Pouring | Grinding & Shot Blasting | Machining |
Coating and Lining | Accessories manufacturing | Packing |
quick pipe clamp - SYI Group
- Quality Control:
quick pipe clamp - SYI Group
Couplings & Flanged Adaptors Installation Instructions :
Warning: SYI Couplings and Flanged Adaptors don't restrain axial pipe movement!
quick pipe clamp - SYI Group
We Are Certified !
More certification ... (Contact us!)
Contact SYI Group :
SYI Industrial Co., Ltd.
1. Email: info# ( # = @ )
2. Tel: 0086 351 4182605
3. Website:
You will get our quick reply!
Company Profile
About SYI Group
Specialist in Municipal, Drainage & Machinery Products & Services
SYI Group Companies have served the society for over 20 years with best Municipal, Drainage and Machinery products.
* SYI Foundry (Shanxi Yuansheng Casting & Forging Industrial Co., Ltd.) --- manufactures Manhole Covers, Gully Gratings, Surface Boxes, Tree Gratings, Bollards, Garden Benches, Cast Lamp Posts & Bases and all types of SYI/OEM municipal products and outdoor furnitures.
* SYI Pipeline Corporation --- manufactures a full range of Pipeline products and accessories like Pipes, Fittings, Universal Couplings, Flanged Adaptors, Quick Adaptors, Dismantling Joints, Clamps, Valves, and etc.
* SYI Industrial Casting Division (Shanxi Yuansheng Industrial Co., Ltd.) --- manufactures all kinds of Investment Castings / Precision Castings, Lost-Wax Castings, Resin Sand Casting, Lost Foam Castings and more.
* SYI Forging Factory (Shanxi Yuansheng Casting & Forging Industrial Co., Ltd.) --- manufactures Flanges, Forged Rings, Forged Fittings, Lifting Anchors, Drop Forgings, Cold Forgings and other Free Forging and Die Forging products.
* SYI Aluminum Division --- manufactures Aluminum Sand Castings, Permanent Mould, Aluminum Die Castings, Aluminum Extrusions and all types of aluminum products.
Since the second half of 20th century, SYI has been an OEM manufacturer of machined & un-machined castings and forgings in a variety of industries. Today, we manufacture over 1,000 products - everything from single flange to customized street lamps. SYI are continuing to refine our role as a technical expert, quality leader and fast reactor.
At Shanxi base, we have over 500,000 square meters of workshop, warehousing and production facilities. We have 6 automatic moulding machine lines, CAD machining center, professional laboratory, in-house pattern & tooling shops and most important-a group of highly experienced and technically qualified staff.
SYI regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2008 TUV certified, BSI Kitemarked, SGS certified, UL listed, FM certified and NF certified. Manufacturing "SYI" Brand products has evolved as a mark of quality!
SYI also has the capacity to assist the customer from initial design, engineering to final sample and production.
Our aim is to provide all of our customers with VALUE of the products in stead of only low prices.
