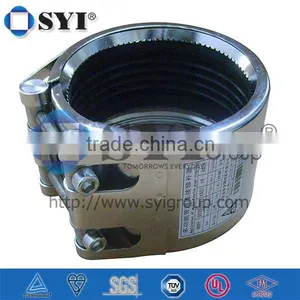

About Our SYI high pressure pipe repair clamp:
| O.D | Out-dia range (mm) | Length (mm) | Setting Gap W (mm) | Working Pressure | (N.m.) | Weight (kg) | |||
| (mm) | short | long | short | long | Mpa | short | long | ||
| 42 | 42-44 | 57 | 15±10 | 30±25 | 2.5 | 5-10 | 0.3 | 0.5 | |
| 48.6 | 47-49 | 57 | 100 | 15±10 | 30±25 | 2.5 | 5-10 | 0.32 | 0.5 |
| 60 | 59-62 | 80 | 139 | 20±15 | 45±40 | 2.5 | 5-10 | 0.7 | 1.2 |
| 76 | 75-78 | 80 | 139 | 20±15 | 45±40 | 2.5 | 5-10 | 0.73 | 1.3 |
| 89 | 88-92 | 107 | 203 | 25±20 | 60±55 | 1.6 | 15-20 | 1.4 | 2.7 |
| 108 | 106-110 | 107 | 203 | 25±20 | 60±55 | 1.6 | 15-20 | 1.6 | 3.1 |
| 114 | 112-116 | 107 | 203 | 25±20 | 60±55 | 1.6 | 15-20 | 1.6 | 3.4 |
| 140 | 137-143 | 116 | 203 | 30±25 | 60±55 | 1.6 | 25-30 | 2.5 | 4.8 |
| 159 | 157-170 | 116 | 203 | 30±25 | 60±55 | 1.6 | 25-30 | 2.9 | 5.6 |
| 168 | 166-170 | 116 | 203 | 30±25 | 60±55 | 1.6 | 25-30 | 2.9 | 5.8 |
| 219 | 217-221 | 155 | 255 | 30±25 | 60±55 | 1.2 | 40-80 | 6.2 | 10.7 |
| 273 | 271-275 | 155 | 255 | 30±25 | 60±55 | 1.2 | 40-80 | 7.2 | 10.7 |
| 325 | 323-327 | 155 | 255 | 30±25 | 60±55 | 1 | 80-120 | 8.5 | 14.9 |
| 377 | 375-381 | 155 | 255 | 30±25 | 60±55 | 1 | 80-120 | 10.2 | 15.2 |
| 426 | 424-428 | 155 | 255 | 30±25 | 60±55 | 0.8 | 80-120 | 11.3 | 17.6 |
| 480 | 476-484 | 155 | 255 | 30±25 | 60±55 | 0.8 | 80-120 | 12.1 | 18.2 |
| 530 | 526-534 | 155 | 255 | 30±25 | 60±55 | 0.8 | 120-150 | 13.2 | 21.5 |

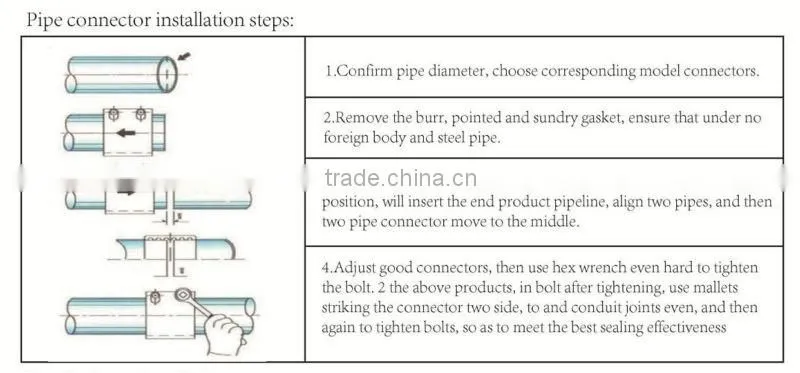

Pipe coupling Installation Instructions :
SYI is keeping on designing the series of coupling products for pursuing the better performance and easier operation.
New design and patterns could be developed based on customers' requirement.
| SYI Clamp | |
| Material: | |
|
BODY: 304/316 stainless steel
GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1
| |
| Flange: | |
| P 10 and PN16 drilling in accordance with ISO 7005-2/EN 1092-2 | |
| Working Pressure: | |
| 16 Bar or 250 PSI | |
| Use: | |
GR-L Toothes ring type pipe connection with strong seal performance and tensile to take off the ability, the ring gear type design can play in pipe connections, good anti- seismic, impact resistance, reduce nosie effect. | |
Note: The accessories for Clamp are usually supplied by assembled on the body. |
