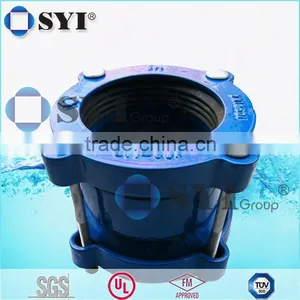

Help CenterRubber Reducing Coupling of SYI Group
Related Products
-
Uninveral Joint Coupling of SYI GroupUS$ 1 - 10,000MOQ: 1 Set -
Roller Chain Coupling Chain Sprocket of SYI GroupUS$ 1 - 10,000MOQ: 1 Set
-
PE/PVC Flange Adaptor of SYI GroupUS$ 1 - 10,000MOQ: 1 Set
-
Ductile Iron Universal Coupling of SYI GroupUS$ 1 - 10,000MOQ: 1 Set
-
Flexible Aluminium Shaft Coupling of SYI GroupUS$ 1 - 10,000MOQ: 1 Set
Welcome to SYI Group
rubber reducing coupling- SYI Group
About Our SYI Universal Flanged Adaptors of SYI Group :
| SYI Universal Flanged Adaptors SPECIFICATIONS | |
| Material: | |
|
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1 D-BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization | |
| Flange: | |
| Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2 | |
| Working Pressure: | |
| 16 Bar or 250 PSI | |
| Fluid Temperature: | |
| 0°C-50°C, excluding frost | |
| Allowed Angular Deflection: | |
| 3° | |
| Joint Gap: | |
| 19mm | |
| Coating: | |
|
Externall coatings: liquid epoxy resin painting epoxy applied by FBE according to customers' requirements |
Internall coatings: liquid epoxy resin painting epoxy applied by FBE according to customers' requirements |
| Reference Rules: | |
| Designed by SYI and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545 | |
| Use: | |
|
SYI Universal Flanged Adaptors, designed by experienced engineers in SYI in 2010 and applied the patent, with wide range tolerance on O.D. (up to 24mm), SYI Universal Couplings are suitable for jointing plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges.
The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out.
The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation.
SYI Universal Flanged Adaptors , with the further more reasonable sizes and ranges, can allow the pipes of main sizes in the most reasonable location, and the gasket can be at the perfect situation after assembled. | |
|
Note: The accessories for SYI Universal Couplings are usually supplied by assembled on the body. | |
About SYI Couplings :
Specialist in Pipeline and Construction Products & Services!
- Universal Couplings,
- Universal Flanged Adaptors,
- Straight Couplings,
- Straight Flanged Adaptors,
- Large Range Couplings
- Quick Adaptors,
- Dismantling Joints,
- Clamps,
- Couplings Products Designed By SYI.
rubber reducing coupling - SYI Group
Manufacture Process & Quality Control :
- Manufacture Process:
Pattern Making |
Sand Mixing |
Moulding |
| ||
Pouring |
Grinding & Shot Blasting |
Machining |
| ||
Coating and Lining |
Accessories manufacturing |
Packing |
| ||
rubber reducing coupling - SYI Group
- Quality Control:
rubber reducing coupling - SYI Group
Couplings & Flanged Adaptors Installation Instructions :
Warning: SYI Couplings and Flanged Adaptors don't restrain axial pipe movement!
rubber reducing coupling - SYI Group
More certification ... (Contact us!)
