Specifications
Automatic Rotary Vacuum Packing Machine for Solid/Granule Materialuce 4-8 workers
2.fill,vacuum,seal
3.Full automatic
Automatic Rotary Vacuum Packing Machine for Solid/Granule Material

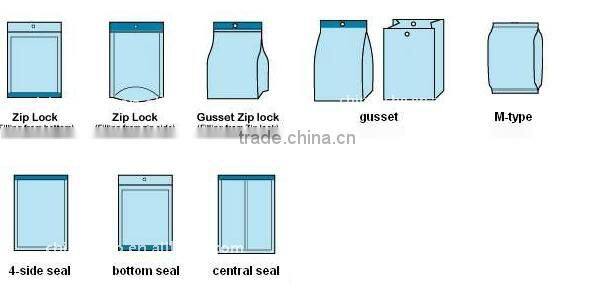

Suitable package:
| 1.flat bag | 2.Doybag |
| 3.flat bag with zipper | 4.Doybag wth zipper |
| 5. Gusset Bag | 6. Gusset Bag with zipper |
Prameters
Rotary bag given packing machine:
Model |
MR8-200R |
Packing process |
1.bag feeding 2.bag traction 3.open bag 4.air flush 5.filling 6.bag stretching 7.part sealing 8.output |
Bag material |
Laminated film bag such as PA/PE,PET/PE, |
Bag size |
80-200mm(W) |
Packing speed |
50-60per/min(the real speed should depend on the packing material nature and the weight) |
Packing range |
10-100g |
Powder |
5KW |
Application |
GRANULE |
Machine N.G |
1200KGS |
Overall size |
1140*1500*1560MM |
Air |
0.6 |
Vacuum sealing machine
Model |
Auto bag feeding vacuum machine |
Bag size range |
70-160mm(W),65-130mm(L) |
Number of degrees |
40-60per/min(real speed should depend on the packing material and bag size) |
Powder |
2KW |
Vacuum pump |
Import kind |
Operation |
Touch screen |
Drive type |
Servo |
Fitting |
Festo |
Machine material |
Stainless steel |
Air |
0.6m³/min compressed air should supplied by buyer |
Mark:
- The measurement device can adopt multi-head weigher and other device.
- The packing main machine can adopt automatic rotary packing machine or others type model.
- We also provide customize made model for large volume or bag packing.
Machine details:
1.Rotary table 2.Bag feeding magezine
3.Bag opening 4.Opening bag holding
5.Vacuum chamber
Bag samples:
The Packaging Machine will be filled with desiccant all the part and packed by film preservative film firstly to avoid moist .Then The machine will be packed by plastic bag.Faninally,the whole machine will be packed by composite material box .
1.Pre-sale services
As professional manufacturer,we act as a adviser and assistant for you to get main plan and idea to packing problem.
A elp to analyse your package problem
B.Select most suitable model
C.Train technical
2.Service during the sale
A.Provide customize made
B:Pre-check the model before shippment
3.After-sale service
A.Help to prepae the construcion scheme
B.Install and adjust machine with your productio
C.Train your workers to operate and deal sample problem
D.Help to evaluate the question which you may appear
E.Provide technical support
Echo Inc. is manufacturing and trading company which is mainly engaged in the r&d, manufacture, marketing and service of plastic & paper bag food packaging machinery with more than 20 years in China,
The aim of Echo is to give you a hand and assist you to solve your package problems with most suitable solution.
We are specialized in packing machine
1. Rotary packing machine
2. Horizontal bag making & packing machine,
3. High speed vertical packing machine,
4. Pillow packing machine,
5. Thermoforming vacuum packaging machine
6. Auto MAP tray sealer.
We provide professional packing solution and do a series of service from beginning to end.
Our strength
1. Equipment make and assemble strictly in accordance with CE, ISO9001(certification) standard in our own CNC.
2. 20 years experience in packing industrial with good after-sale service group.
3. Our professional team of research and development has got our own patent for invention.
4. Professional sales and engineer team with 24 hours hot line to do design packing project, problem consulting, solution.
5. Professional engineers group as after-service team can speak English and do overseas service.
We continually design new model and improve machines and solutions to satisfy different and stringent requirements from market.
Our professional pre-sales and after- sales service guarantee the complete satisfaction of the equipments. Welcome to work with us to win a mutual benefit future
