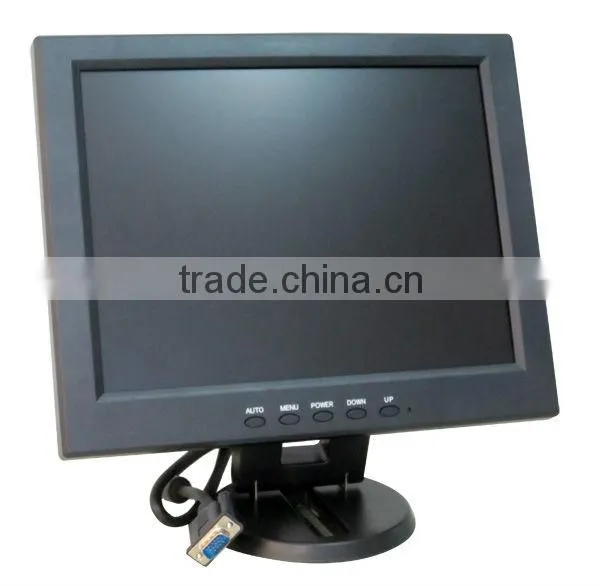

12 Inch LCD Monitor

Name: 12 Inch LCD Monitor
Brand: GSAN
SKU: 120270987

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Desktop

Screen Size:

Other, 12"

Guangzhou City Gsan Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Desktop

Screen Size Other, 12"

Response Time 8ms

Brightness 350cd/m

Interface Type D-Sub

Contrast Ratio 450:1

Resolution Other, 800*600

Widescreen No

Panel Type TFT

Pixel Pitch 0.297*0.297mm

Brand Name GSAN

Model Number monitor 12"

Place of Origin Guangdong, China

Specifications

1,12 inch lcd monitor with stand .
2, 800*600 resolution
3.factory with most competitive price

Configuration of 12 inch LCD monitor

LCD Panel Type	10.4 12.1 13.3 14.1 TFT LCD panel (optional)
Max. Resolution	1024(horizontal)768(vertical)GA
Body size	310(W)260(H)*45(D)mm
Contrast	450:1
Brightness	300CD/sm
Response Time	8MS
Viewing Angle left/right	+80°~-80° or +60°~-60°
Viewing Angle up/down	+80°~-80° or +55°~-65
Enter message Visual message	RGB analog 0.7V p-p
Synchronization	TTL Anode or Cathode
Display Mode	VGA,SVGA,XGA
Signal Connector	15-hole mini D-Block
Front Panel control buttons	Power control switch, LED indicator, OSO menu, +/ adjustment button, screen automatically set, OSO choose.
OSD Adjustment	Contrast, brightness, auto adjust, image-bit quasi, phase, Horizontal position, vertical position , enter message, Computer VGA
Power Transformer	AC:100-240V~1.8A 50-60Hz DC: 12V/2.5A
Operating Environment	Temperature:0-50degree, Humidity 20-81-0%
Storage Environment	Temperature:-20-60degree, Humidity 20-81-0%
Safety Certification	FCC(DOC),CE,VCC-I,TUV/GS,TCO’99 (optional)
