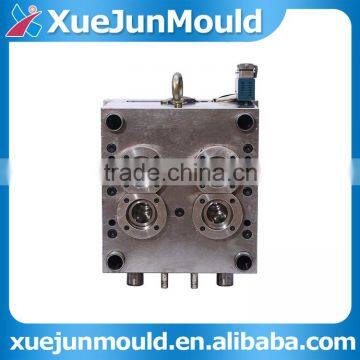

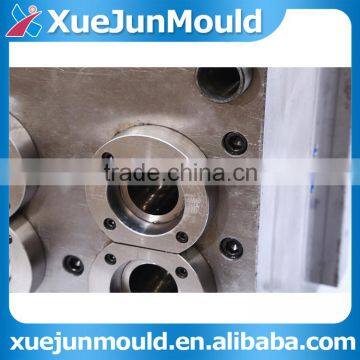

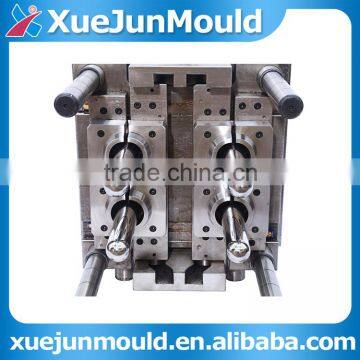

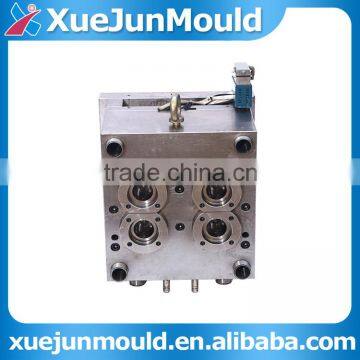

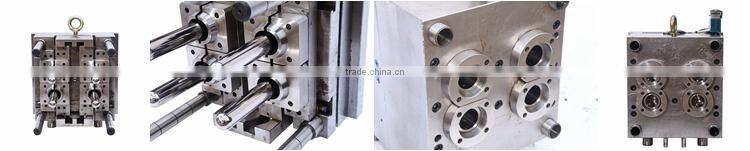

1.Pictures of product
2.Description of product
3 gallon blowing PET preform mould manufacturer | ||
Main component |
Specification and Advantages |
|
Core |
s316 steel from Sweden |
high-quality special mould steel from sweden (HRC >45) gurantee 2 million shots without any maintenance
|
Neck |
s136 steel from Sweden, HRC >60, International standard screw neck |
|
Cavity |
2316 steel from Sweden Each cavity have an independent temperature controller Each cavity self-clamp independently, ensure mould concentricity. 0.05-0.06mm |
|
Body |
P20 Steel material from Germany |
|
Hotrunner plate |
2344 Steel material from Germany |
|
Slider Plate |
wear-resistant copper |
|
specially designed cooling circuits |
Proper design reduce molding cycle time to 15 seconds( with proper water chiller and injection machine) about 3-5 shots per minute |
|
Hotrunner design |
make sure the high quality of preform products. |
|
Heater |
Anole Germany |
|
valve gated design with Automatic drop |
each cavity has its independent heating zone and temperature is measured by independent thermocouple. .(advantages: easily avoid some problems such as white or drawbench on bottom). Valve gated type without tail reduces labor force. |
|
Precessed by high presion CNC machine and numerical control loathe machine |
Lowest weight and dimensional variation thickness between max. part and min. part is not more than 0.05mm make sure that every parts can match well |
|
3.Application of product
Our products are widely used in beverage, food, edible oil, condiment, cosmetic, toiletry products and pharmaceutical industries. For beverage industry, our molds are used to manufacture water bottle, CSD bottle, hot filling bottle and aseptic bottle. We have adopted the latest CAD/CAE/CAM system to our mould design, such as UG, Pro-E that ensures the project efficiency. Also, we have advanced processing equipments like mold CAM machining center, CNC lathe, high precision electrical sparkle machine, large-sized milling machine. Your product will be through effective project management that will reduce the costs and let your products show on the market in the shortest time.
4.Production line of product

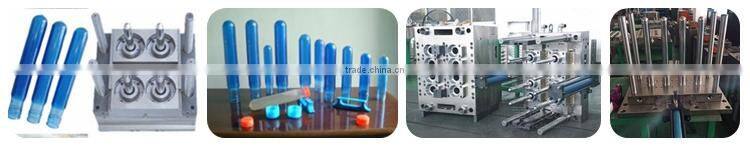

5.Hot item

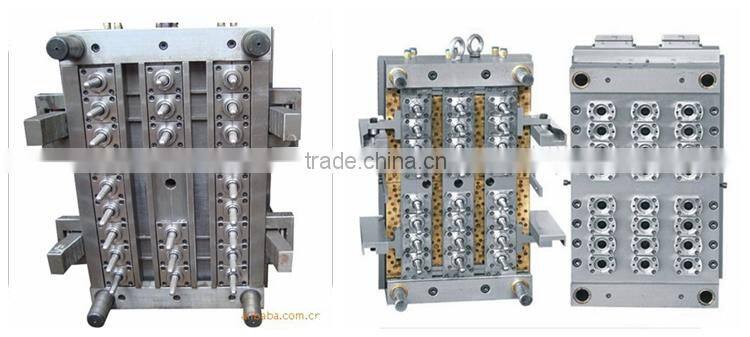

6.More product of choose
7.Packing of product
Packaging Details: |
1. Outside package: Standard wooden cases; |
Delivery Detail: |
30-45days |

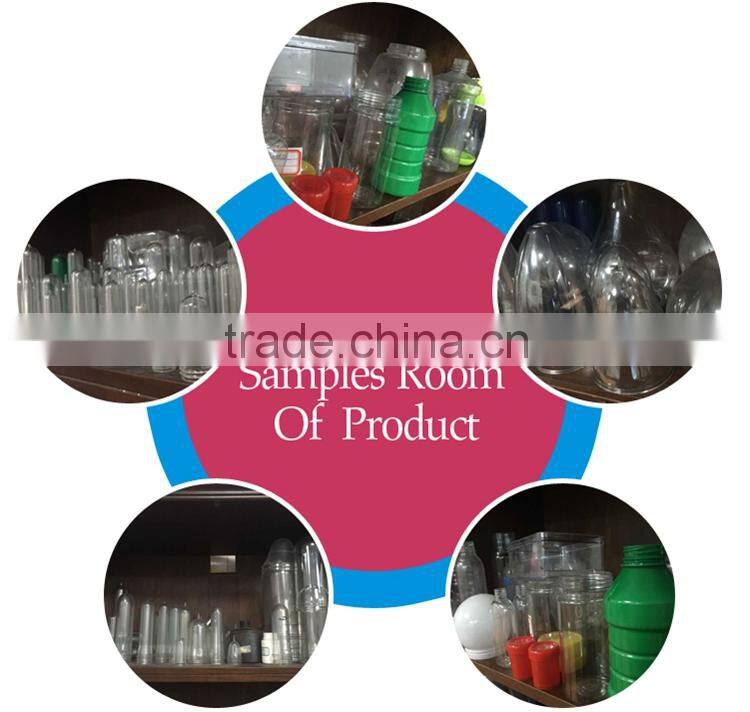

8.Sample room of product
1.Introduction of company
Taizhou huangyan Xuejun mould factory is a professional manufacturer of PET moulds,we have been devoting ourselves to the reaearch and production of bottle,perform,cap mould for many years.with strenuous improvement and innovations,It has become a famous enterprise in same line.We regularly produce PET perform moulds blowing moulds and cap moulds for a variety of products from beverages,to medical devices,cosmetics,automotive parts,household items etc.
2.Our company view
Enterprise purpose:provide high quality products and excellent service

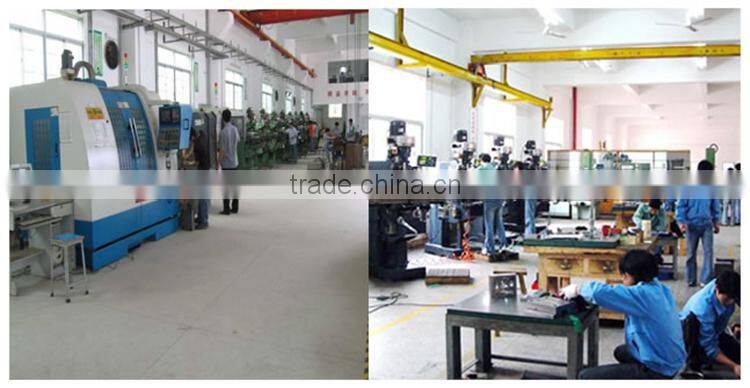

3.Workship of our company
lProject manager inspects mould 2D drawing and sign for approval of all dimensions and tooling workmanship, quality department check the drawing and confirm with stamp.
lProduct design in 3D program, If necessary Hengxin offers service for innovative product design with support of moulds flow program, product laboratory test and patent service.
lSteel material tooling and heat treatment according to the listed step on the 2D artwork detail drawing, quality department follow with inspection report.
lFinished mould components, core and cavity, slide parts dimension control, tolence inspection and material HRC hardness checking by quality department according to 2D detail drawing.
lMould assembling and quality inspection according to 2D mould assembling detail drawing.
lMould test and product dimension controlling according to 2D product drawing. Quality department make out the mould test report, product quality report, mould quality improvement report or mould quality certification.
We not only supply high quality moulds, but also provide strong R&D support. We can
n Assist your company in finalizing bottle design
n Conduct project reviews
nFeasibility studies
n Work with you to come up with best machinery solution for you operation
After-Sale Service
a) Engineer and one interpreter can be sent to customer’s factory for first running.
b) one-year after-sale technique support
TAIZHOU HUANGYAN XUEJUN MOULD FACTORY answers your questions:
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, China.You can fly to Ningbo airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
