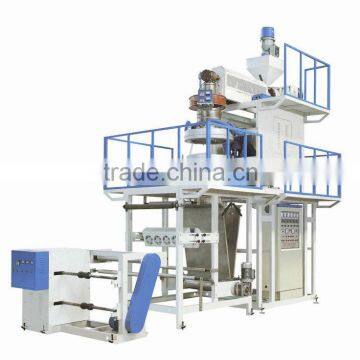

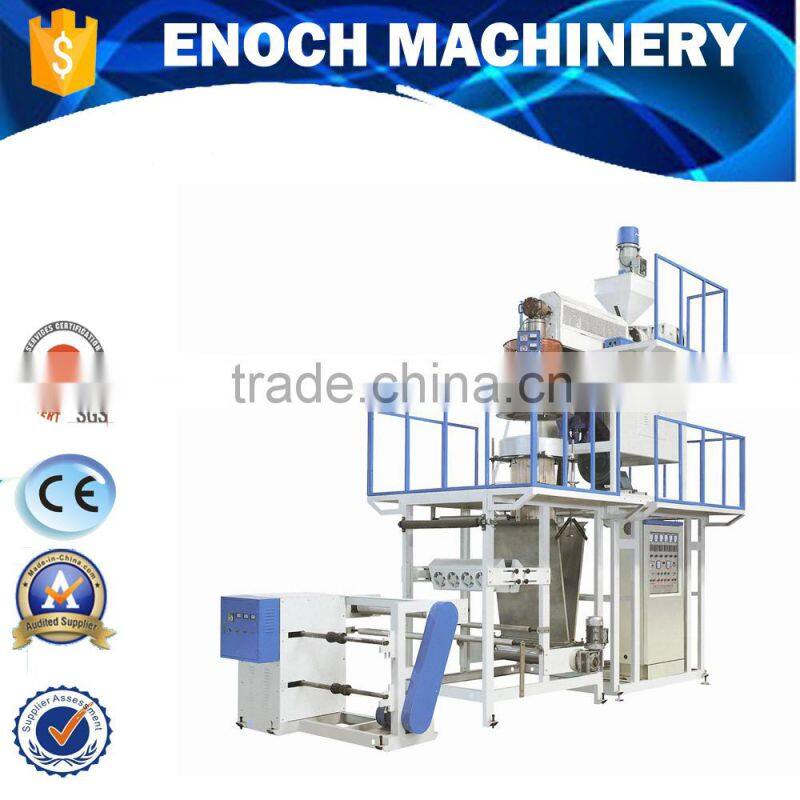

Rotary Die Head Blow PP Film Machine (EN-P)
- NINGBO
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PP | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | ENOCH | Model Number | EN-P | |
| Voltage | 380v,3phrase/22V,3phrase | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
USE: It is suitable for blowing polyethylene(PP) and also for blowing high and low density polyethylene(HDPE, LDPE), which are widely used for packing food, garments, textile, daily necessaries and industrial products etc. Characteristics: The cylinder and the screw stems of extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The extruder can be lift up to 3 meters according to the technological requirements. Mode of film blowing; Bottom blowing. The coiling unit adopts torque motor to keep proper tension and make rolling tidy and roll-changing easy.
Model | EN/P-45 | EN/P-50 | EN/P-55 | EN/P-65 |
Screw Diameter | 45mm | 50mm | 55mm | 65mm |
Screw L/D | 28: 1 | |||
Heating Capacity | 7.5kw | 10kw | 10kw | 13kw |
Main Motors | 7.5kw | 15kw | 15kw | 18.5kw |
Temperature | 6 | 6 | 6 | 6 |
Width of roller | 500mm | 650mm | 800mm | 800mm |
Winding motor | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
Winding speed | 10-60m/min | 10-40m/min | 10-40m/min | 10-40m/min |
Die Size | 150mm | 250mm | 250mm | 300mm |
Air blower | 1.5kw | 1.5kw | 2.2kw | 3kw |
Rotary die | 360 | 360 | 360 | 360 |
Film width | 80-400mm | 160-600mm | 160-650mm | 160-700mm |
Film thickness | 0.02-0.1mm | 0.02-0.1mm | 0.02-0.1mm | 0.02-0.1mm |
Output | 10-25kg/hr | 20-35kg/hr | 20-45kg/hr | 20-55kg/hr |
Dimension | 3.5× 2× 3.5m | 4.2× 2.5× 4m | 4.5× 2.5× 4.3m | 4.5× 2.5× 4.5m |
