Specifications
1.High outputcapacity2.Latest technology
3.good quality and reasonable price
EN-STA Single layer ldpe stretch film machine
1. ldpe stretch film machine specification
Model: |
EN-STA -1000 Single |
Screw Diameter |
60mm |
L/D ratio |
28:1 |
Screw Barrel Material |
38CRMOLA |
Die width |
1250mm |
Film Width |
1000mm |
Thickness |
0.015-0.05mm |
Rollout Diameter |
300mm |
Output |
50kg/h |
Main Motor Power |
15kw |
Heating Power |
25kw |
Overall dimension: |
6000×2000×2500mm |
Total Weight |
4000kg |
2. ldpe stretch film machine other details
Ⅰ.Feature:
1. It profits advanced technology from aboard and manufacture
by absorption, improvement, innovation.
2. It is entire frequency conversion control, movement stable,
highly effective and the low energy consumption.
3. The product adopts the craft of one time forming.
4.It can produce two-side sticks for stretching film.
5. The special side material rollout element by round-trip.
Ⅱ. Unit introduction
1. This series unit is mainly used in producing the polyethylene plastic film for unidirectional stretch (stretching film, twines membrane) as well as fresh film. The film can achieve the effect which is one-side and two-side sticks.
2. Therefore it applies in building material, hardware fitting packing widely. The screw of unit adopts 38CRNOALA alloy steel. It manufactured by nitric and precise processing so that it is highly hardness and durable long time.
3. Temperature controls adopts advanced automatic control system and the T mold adopts the multi- spots adjustment. They could cause the film thickness to be evener.
4. The cooling system adopts the circulating water cool and it cooling effect is good.
5. The rollout installment adopts the friction type of rollout and has the cutting edge installment andside material rollout element by round-trip. This causes the film which rollout to be neater.

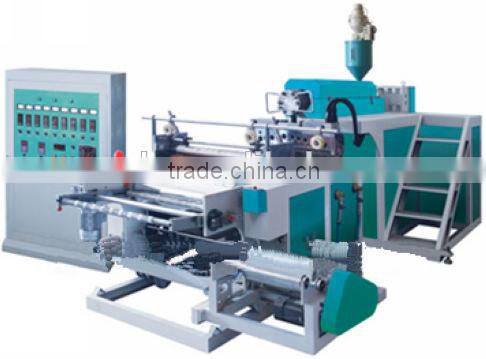

3. ldpe stretch film machine picture show
EN-STA -1000 Single ldpe stretch film machine Packaging:first packed by film.then fix by stretch film.
EN-STA -1000 Single ldpe stretch film machine shipping:Loading container in factory.
Our after sale service:
Within one year, we will supply spare parts for free and free DHL,and replace the broken part freely within one year.
Our Engineer service:
We will send technician to customer’s factory to install the machine and teach the worker to operate the machine. And the customer should pay all the cost.
If you are interested in our Products,pls contact me freely.
We are willing to provide our best quotation and service to you.
Waitting for your reply.
Thanks
Fiona
Note: Our factory also could specially make machine size for you, any other requirement, pls feel free to contact me , thanks!
