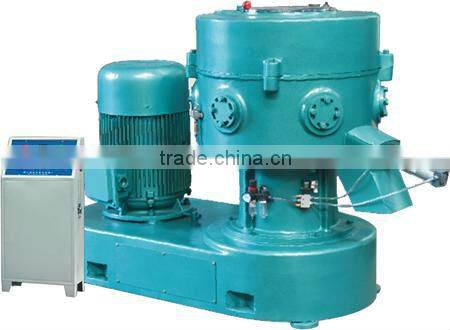

Small Plastic Granulator

Specifications

1. Small Plastic Granulator

Small Plastic Granulator

1. Product Description

Use:
This machine adopting advanced technology from Japan, uses the principle of multi-knives to disintegrate rapidly, stir continuously, mix for friction for heat, and cool fast to shrink. The machine makes the scraps such as plastic film, thread, slice, soft plastic tube, foaming material, degradative material recycled to for further production, hence a latest ideal device to recover and regenerate the plastic to become granules.

Main Features:
A: Disintegrating, stirring and coloring can be finished in one time
B: The machine occupies small land
C: Easy in structure and convenient to operate
D: Adjustable between the knife gaps, convenient to replace the knife
E: High production dfficiency and low energy consumption (Daily output
Reaches 1 ton with electric power consumption 200 kwh)
F: Basically don't damage the molecular structure of raw material, nor the physical performance

2. Main Technical Parameters

Model	EN-100L	EN-150L	EN-300L
Output capacity	30-60kg/h	60-80kg/h	200-300kg/h
Power of main electric motor	15kw	18.5kw	37kw
Water adding device	125w	125w	90w
Heating power	1.5kw	1.5kw	1.5w
Rotary speed of main shaft	660r/min	660r/min	660r/min
Overall dimensions(L*W*H)	1300*600*1300mm	1500*700*1400mm	2000*1000*1400mm
