JIS SS400 Hot Rolled Unequal Angle Steel
US$ 400 - 550
MOQ: 25 Tons
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
25*16*3mm-200*125*18mm
Grade:
SS400-SS540 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel i Beam,steel I-beam PricesUS$ 430 - 610MOQ: 25 Metric Tons -
High Quality I Beam PricesUS$ 450 - 600MOQ: 25 Metric Tons
-
High Quality I Beam Size,Hot Rolled I BeamUS$ 390 - 560MOQ: 25 Metric Tons
-
Ss400 Q235/ High Quality /Construction Steel /I BeamUS$ 450 - 620MOQ: 25 Metric Tons
-
Construction Steel H Beam,I Beam For Construction Ss400,High Quality I BeamUS$ 436 - 610MOQ: 25 Metric Tons
Standard
AISI, ASTM, BS, DIN, GB, JIS
Dimensions
25*16*3mm-200*125*18mm
Grade
SS400-SS540 Series
Place of Origin
Hebei, China
Brand Name
CHUANJIANG
Model Number
2.5#-20#
Type
Unequal
Application
Construction
JIS SS400 Hot Rolled Unequal Angle Steel
Chemical Composition and Mechanic Property of Q235 as below:
GB Standard Unequal Angle Steel
Size:
| B(mm) | b(mm) | d(mm) | Theoretic Weight(kg/m) | |
| 25 | 16 | 3 | 0.912 | |
| 25 | 16 | 4 | 1.176 | |
| 32 | 20 | 3 | 1.171 | |
| 32 | 20 | 4 | 1.522 | |
| 40 | 25 | 3 | 1.484 | |
| 40 | 25 | 4 | 1.936 | |
| 45 | 28 | 3 | 1.687 | |
| 45 | 28 | 4 | 2.203 | |
| 50 | 32 | 3 | 1.908 | |
| 50 | 32 | 4 | 2.494 | |
| 56 | 36 | 3 | 2.153 | |
| 56 | 36 | 4 | 2.818 | |
| 56 | 36 | 5 | 3.466 | |
| 63 | 40 | 4 | 3.185 | |
| 63 | 40 | 5 | 3.92 | |
| 63 | 40 | 6 | 4.638 | |
| 63 | 40 | 7 | 5.339 | |
| 70 | 45 | 4 | 3.57 | |
| 70 | 45 | 5 | 4.403 | |
| 70 | 45 | 6 | 5.218 | |
| 70 | 45 | 7 | 6.011 | |
| 75 | 50 | 5 | 4.808 | |
| 75 | 50 | 6 | 5.699 | |
| 75 | 50 | 8 | 7.431 | |
| 75 | 50 | 10 | 9.098 | |
| 80 | 50 | 5 | 5.005 | |
| 80 | 50 | 6 | 5.935 | |
| 80 | 50 | 7 | 6.848 | |
| 80 | 50 | 8 | 7.745 | |
| 90 | 56 | 5 | 5.661 | |
| 90 | 56 | 6 | 6.717 | |
| 90 | 56 | 7 | 7.756 | |
| 90 | 56 | 8 | 8.779 | |
| 100 | 63 | 6 | 7.55 | |
| 100 | 63 | 7 | 8.722 | |
| 100 | 63 | 8 | 9.878 | |
| 100 | 63 | 10 | 12.142 | |
| 100 | 80 | 6 | 8.35 | |
| 100 | 80 | 7 | 9.656 | |
| 100 | 80 | 8 | 10.946 | |
| 100 | 80 | 10 | 13.476 | |
| 110 | 70 | 6 | 8.35 | |
| 110 | 70 | 7 | 9.656 | |
| 110 | 70 | 8 | 10.946 | |
| 110 | 70 | 10 | 13.476 | |
| 125 | 80 | 7 | 11.066 | |
| 125 | 80 | 8 | 12.511 | |
| 125 | 80 | 10 | 15.474 | |
| 125 | 80 | 12 | 18.33 | |
| 140 | 90 | 8 | 14.16 | |
| 140 | 90 | 10 | 17.475 | |
| 140 | 90 | 12 | 20.724 | |
| 140 | 90 | 14 | 23.908 | |
| 160 | 100 | 10 | 19.872 | |
| 160 | 100 | 12 | 23.592 | |
| 160 | 100 | 14 | 27.247 | |
| 160 | 100 | 16 | 30.835 | |
| 180 | 110 | 10 | 22.273 | |
| 180 | 110 | 12 | 26.464 | |
| 180 | 110 | 14 | 30.589 | |
| 180 | 110 | 16 | 34.649 | |
| 200 | 125 | 12 | 29.761 | |
| 200 | 125 | 14 | 34.436 | |
| 200 | 125 | 16 | 39.045 | |
| 200 | 125 | 18 | 43.588 | |

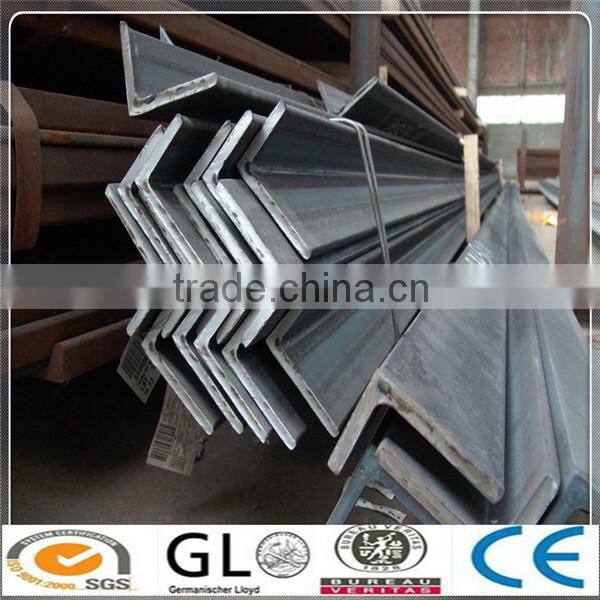

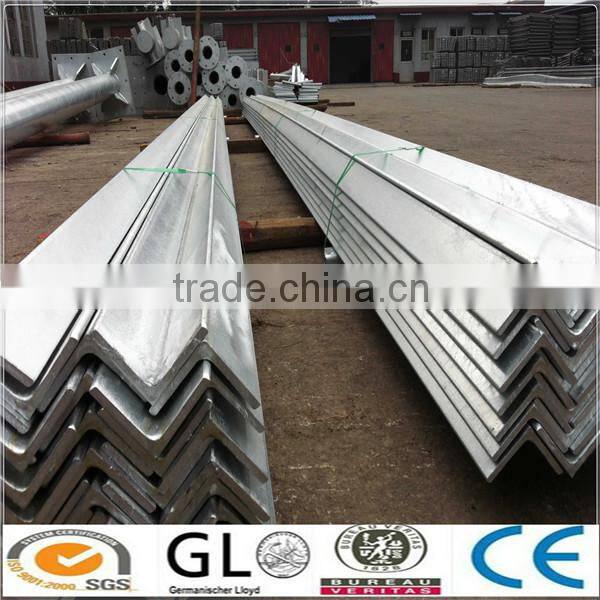

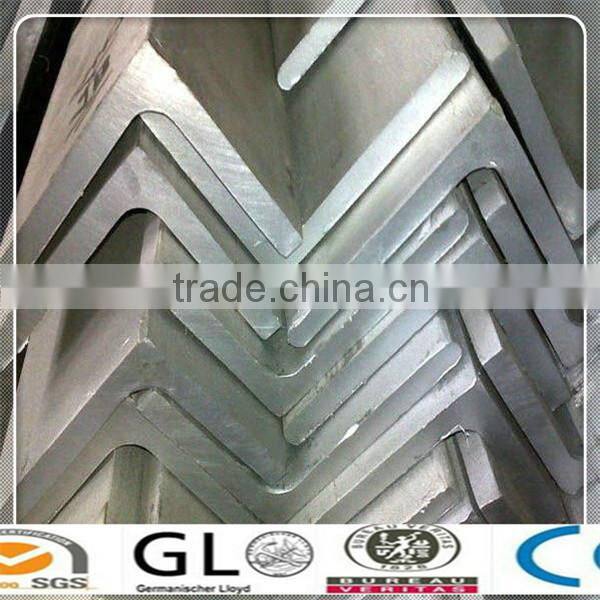

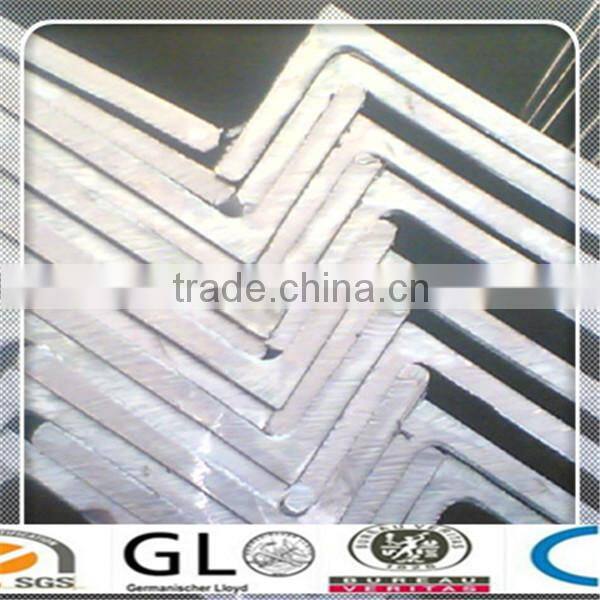

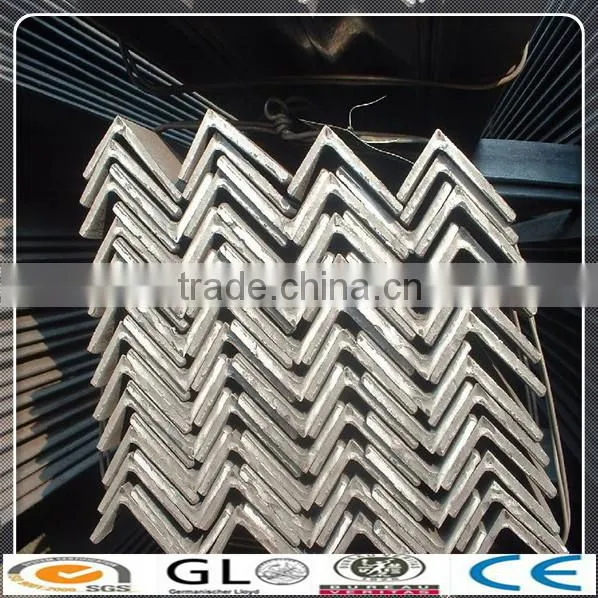

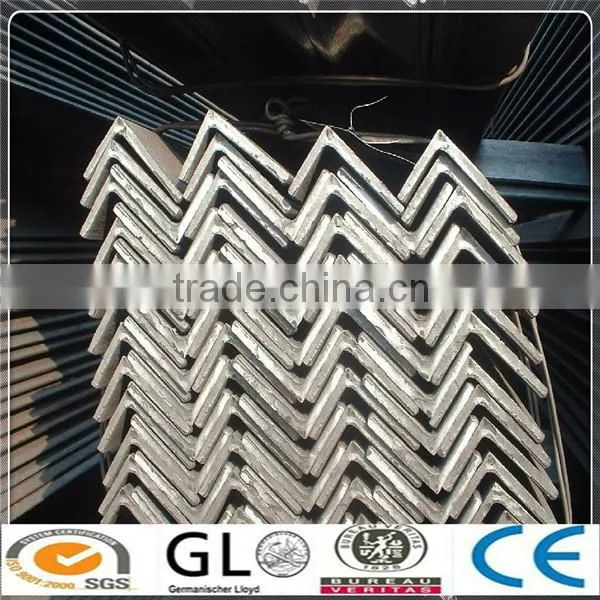

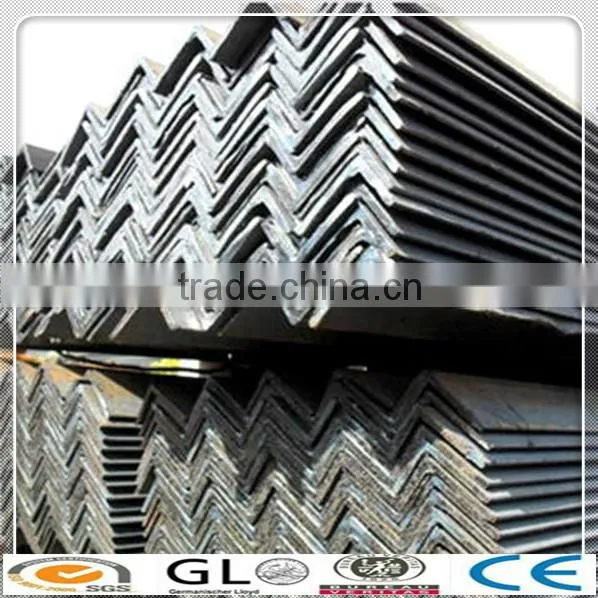

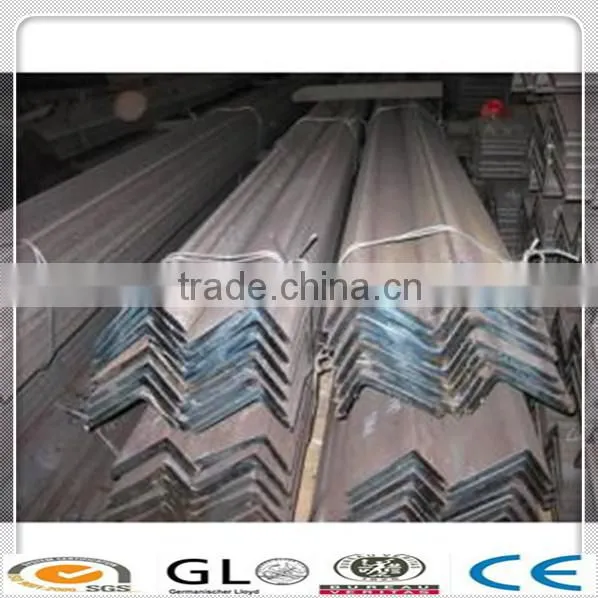

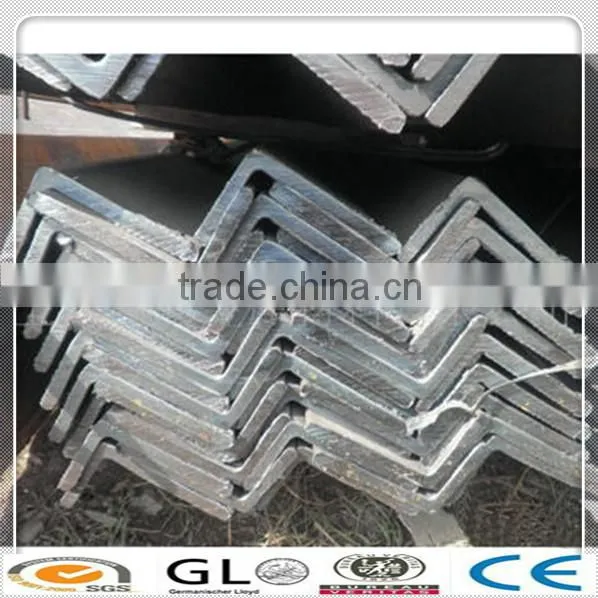

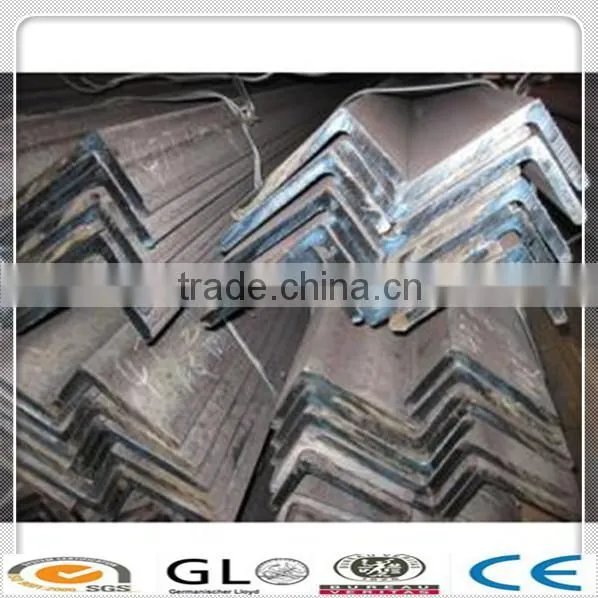

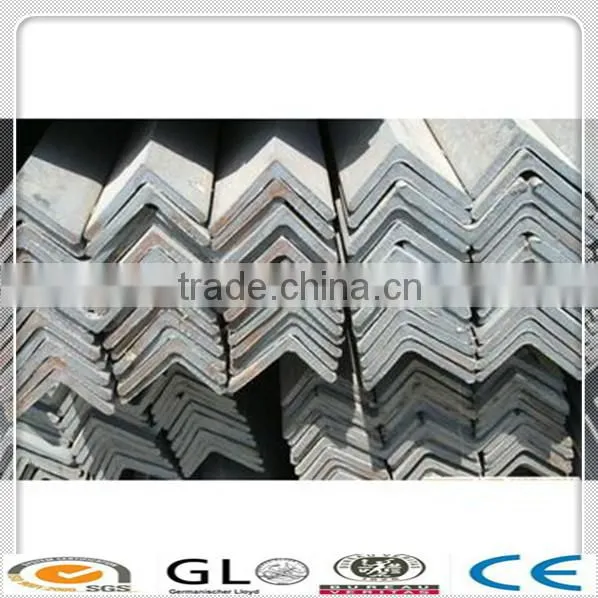

Pictures of JIS SS400 Hot Rolled Unequal Angle Steel
