Beijing Sincerity Magnetic Flow Meter Price

Name: Beijing Sincerity Magnetic Flow Meter Price
Brand: Sincerity
SKU: 120237115

US$ 100 - 5,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Sincerity

Model Number:

L- Mag Series

Beijing Sincerity Automatic Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Sincerity

Model Number L- Mag Series

Specifications

Accuracy:0.5%
Network function:MODBUS/HART/PROFIBUS-DP

Product Name: Beijing Sincerity Magnetic Flow Meter Price

Low-frequency square-wave exciting,exciting frequency:1/10power frequency,1/16 power frequency,1/25 power frequency,1/32 power frequency;
High-frequency square-wave exciting,exciting frequency:1/2 power frequency(for grouting liquid measure);
Exciting current can be selected for 125mA,187.5mA,250mA;
No need to add empty pipeline measurement, and can measure continuously, alarm by fixed value;
Current speed range:0.1 --- 15m/s,current speed resolution:0.5mm/s;
AC high-frequencyswitching power,range of voltage:85VAC --- 250VAC;
DC 24V switching power,range of voltage:16VDC --- 36VDC;
Network function:MODBUS(RS-232C,RS-485),HART and PROFIBUS –DP(choose);
Chinese or English displaying mode, (other languages can be set);
Three integrator gross inside, respective register:Forward gross, reverse gross and minus value gross.

Recording time when power turn-off, to record power broken time of instrument system automatically and recruit to count the missing flux;
Recording function of hour gross, to record the flux gross by hour, fit for timed measure;
Infrared handing telecontrol keyboard,all the functions of far-untouched controlling converter.

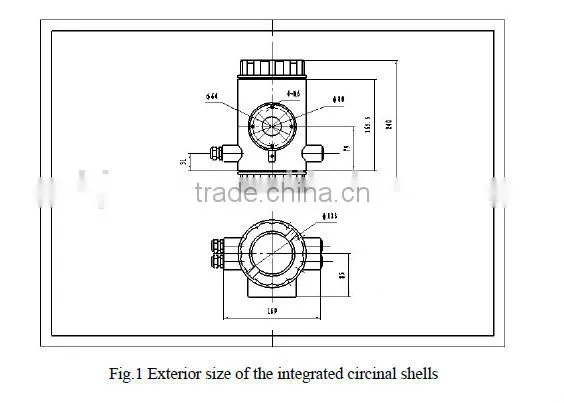

The integrated circinal shells: circinal shells, shells connect with the flange directly, explosion-proof;
The integrated squared shells: squared shells, shells connect with the flange directly;
The split squared shells: squared shells (hang on the wall), Signal converters connect with cable of sensor;

Plot of intalling Measure:
