Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Pile Driver > Manufacturer of YIMER Hydraulic Vibratory Hammers, High Quality Vibratory Hammer

Manufacturer of YIMER Hydraulic Vibratory Hammers, High Quality Vibratory Hammer

Name: Manufacturer of YIMER Hydraulic Vibratory Hammers, High Quality Vibratory Hammer
Brand: YIMER
SKU: 120208971
Availability: InStock

Manufacturer of YIMER Hydraulic Vibratory Hammers, High Quality Vibratory Hammer thumbnail-1

Manufacturer of YIMER Hydraulic Vibratory Hammers, High Quality Vibratory Hammer photo-1

US$ 1,000 - 1,000,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

YIMER

Contact Supplier Request Quote Chat Now

Xuzhou Reman Construction Machinery Remanufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name YIMER

Model Number emv955

Weight 740kg

Dimension(L*W*H) 1306*637*1553

Certification CE CCC

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.suitable for different soil condition.
2.improving the efficiency of pile extracting.
3.easy operation.
4.great developed

Product name

manufacturer of ISO, CE approved YIMER hydraulic vibratory hammer, vibratory pile hammer

Specifications

1. Hydraulic Vibratory Hammer:
2. Powerful, Reliable, Versatility
3. High productivity & efficiency
4. Less environmental affection

Introduction of the vibratory hammer

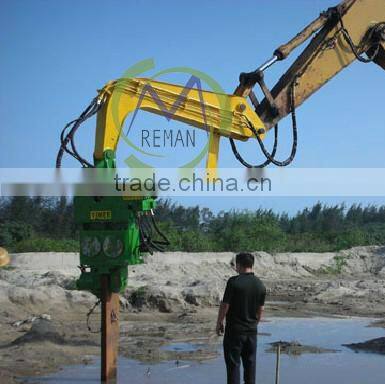

Hydraulic vibratory hammer is widely used in various types of foundation engineering piling and pile pulling construction machinery . The exciting force generated by vibrating hammer can make the surrounding soil liquefaction, reduce the frictional resistance of the soil on the pile , use the weight of pile and the excavator additional downward pressure to cut into the soil . Conversely , applying upward tension ,to pull out the pile from soil . The hammer can also be used for underwater construction job.

parameter data

MODEL		emv28	emv38	emv645	emv850	emv955	emv1270	emv1480	emv418C
Eccentric moment	kgm	3.3	5	6	8	9	12	14	18
Max. Centrifugal force	KN	280	380	450	500	550	700	810	1100
Max. Frecuency	rpm	2800	2500	2500	2300	2500	2300	2300	2300
Max. Amplitude without clamp	mm	11	12.5	17.5	15	24.5	17	20.5	19
Max. Amplitude without clamp	mm	11	12.5	17.5	15	24.5	17	20.5	19
Max. Amplitude with clamp	mm	8.5	9	13	11	17	13.5	14.5	14.5
Max. Amplitude with clamp	mm	8.5	9	13	11	17	13.5	14.5	14.5
Max. Line-pull	KN	120	120	120	120	150	240	240	240
Max. Hydraulic power	KW	63	71	83	83	150	240	187	260
Max. Operating pressure	bar	350	350	350	350	350	350	340	340
Max. Oil flow	1/min	110	170	200	200	200	300	330	330
Dynamic weight without clamp	kg	576	680	690	680	740	1400	1189	1125
Dynamic weight without clamp	kg	576	680	690	680	740	1400	1189	1125
Dynamic weight with clamp	kg	730	920	950	1100	1050	1800	1754	1790
Dynamic weight with clamp	kg	730	920	950	1100	1050	1800	1754	1790
Clamp force	KN	500	500	600	600	700	1000	2929	1000
Total weight	kg	860	1280	1350	1450	1560	2600	2965	2965
Transport weight	kg	970	1350	1400	1550	1650	2900	3029	3065
Dimensions
A Length	mm	1115	1115	1115	1394	1306	1650	1780	1780
B Width	mm	568.5	618.2	618.2	708.8	637	505	780	780
C Throat width	mm	310	332	332	332	332	350	340	340
D Hammer height	mm	718	980	980	718	1056	1108	1122	1122
E Clamp height	mm	365	497	497	497	497	718	718	718
F Total height	mm	1083	1477	1477	1215	1553	1826	2397	2397

About company

Xuzhou Reman Construction Machinery Remanufacture Co., Ltd is located in xuzhou, the earliest place to research and development, production base of rotary drilling rigs in China. The company is specialized in selling new rotary drilling rigs, full -rotary drilling rigs and other piling machine; has complete industrial chain of researching and development, manufacturing and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd has many year's technical advantages, professional and experienced maintenance team; with moving maintenance shop--special vehicle for rigs field service; and advanced testing equipment, professional repairing workshop, spare parts warehouse, perfect testing methods and management system, all of these ensure the quality of our service and woke efficiency.
