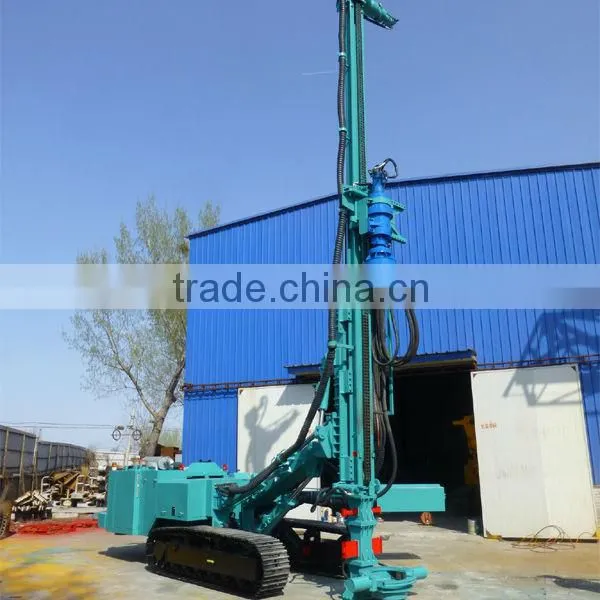

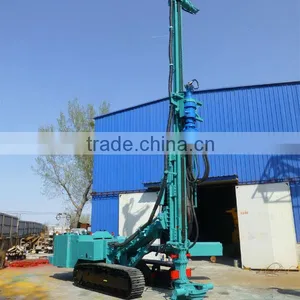

manufacture of JD110B full hydraulic crawler multi-function drilling rigs, capable of drilling all kinds of geology

Specifications

1. multi-functions
2. Equipped with a rotary drifter
3.High quality auxiliary accessories
4.easy to operate and control

Product Name

manufacture of JD110B full hydraulic crawler multi-function drilling rigs, capable of drilling all kinds of geology



Features

1. The drilling rig has multi-functions, being suitable for direct or circulative hole-drilling in various grounds.



2. Equipped with a rotary drifter, or a rotary-percussive drifter, or a hydraulic impact hammer or a down-the-hole hammer, the drilling rig will be able to conduct various hole drillings for liquid emission, underground mini-piles, anchor rods or cables, geological exploration, geothermal reconnaissance, foundation consolidation and slope support, and for advance tunnel pipe roof support and pre-geological exploration as well.



3. Fitted with a rotary-percussive drifter, it has found wide applications in anchor rod or cable supports of foundation pits, slopes, mine lanes, etc.



4. The key component of the drilling rig, a rotary-percussive drifter powered by two motors, is selected from ThyssenKrupp in Germany. With this, the rig can carry out rapid drilling in various ground conditions. Even getting stuck during the drilling operation the drill rod can be easily and rapidly taken out by striking it reversely with the back hammering unit of the drifter,which guarantees the reliability of the drifter.



5. High quality auxiliary accessories and their optimal match ensure the reliability and stability of the drilling rigs.



6. The hydraulic system, with multi-pumps and circuits, is simple in operation, and short in downtime due to failure, which makes the complete machine durable and easy for maintenance.



7. The compact machine is easy to operate and control; its drilling frame offers smooth and flexible movement, accurate location, and reliable rising or falling, with a wider range of tilting and rotating over the same types of machines of other makes, which enables the feed masts to conduct any hole-drillings(including mini-piles hole-drilling) at any angles, and anchor support for foundation pits and slopes.



Specifications



Name		Unit	Data
1	Total weight		kg	17000
2	Overall dimensions in transport (L ×W ×H)		mm	8350×2260×2900
3	Engine			Cummins 6CTA8.3
4	Hydraulic system	Pressure	MPa	25
		Flow rate	L/min	135, 135, 53
5	Hydraulic oil tank capacity		L	460
6	Diesel fuel tank capacity		L	200
7	Drifter			HB50A, Krupp ofGermany
8	Rotary mechanism	Pressure	MPa	25
		Flow rate	L/min	170
		Max. speed	r/min	80
		Max. output torque	Nm	13000/16900
9	Percussive mechanism	Pressure	MPa	20
		Flow rate	L/min	90
		Percussive frequency	min-1	1200	1900	2400
		Percussive torque	Nm	835	535	420
10	Impulsion force		kN	57
11	Extracting force		kN	85
12	Max. impulsion speed		m/min	56
13	Max. extracting speed		m/min	39.5
14	Feed stroke		mm	4100
15	Max. grade ability			27°
16	Travelling speed		km/h	4.1
17	Winch lift capacity		N	20000
18	Drill rod gripper and tripper	Gripping diameter	mm	65~225
19		Gripping force	kN	157
20		Tripping torque	Nm	31500







Pictures



Company Introduction

Xuzhou Reman Construction Machinery Remanufacture Co., Ltd is located in xuzhou, the earliest place to research and development, production base of rotary drilling rigs in China. The company is specialized in selling new rotary drilling rigs, full -rotary drilling rigs and other piling machine; has complete industrial chain of researching and development, manufacturing and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
