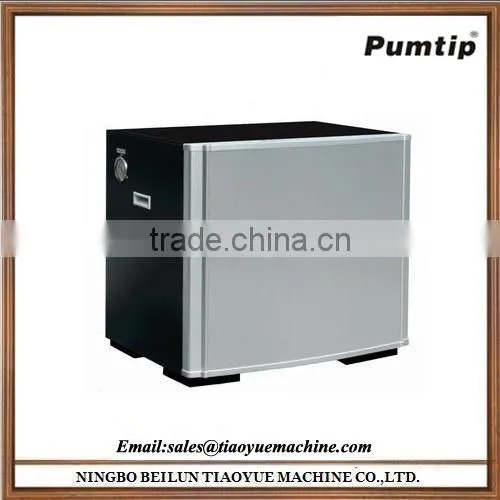

Geothermal Heat Pump Sale
US$ 1 - 1,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Water Source Heat Pump
Installation:
Freestanding
Housing Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New and High Quality Gasoline Water PumpUS$ 1 - 1,000MOQ: 1 Piece -
Dental Suction Pump for SaleUS$ 1 - 1,000MOQ: 1 Piece
-
Coolant Pump Factory SupplierUS$ 1 - 1,000MOQ: 1 Piece
-
Factory Hot Sale Axial Piston PumpUS$ 1 - 1,000MOQ: 1 Piece
-
Automatic Pressure Control Water PumpUS$ 1 - 1,000MOQ: 1 Piece
Type
Water Source Heat Pump
Installation
Freestanding
Housing Material
Plastic
Use
Bathroom
Certification
CE
Place of Origin
Zhejiang, China
Brand Name
Pumtip
Model Number
WP527-7
Specifications
geothermal heat pump1.Running more stable under cold weather
2.Good service
Geothermal heat pump
| Model | TY-30 | TY-45 | TY-60 | TY-90 | |
| Operating temperature limits heating water supply | °C | max.55 | max.55 | max.55 | max.55 |
| Operating temperature limits brine (heat source) | °C | -5~25 | -5~25 | -5~25 | -5~25 |
| Heating capacity/coeff. Of perform. At B-5/W55 | KW/- | 2.5/2.9 | 3.6/3.0 | 5.3/3.0 | 6.2/2.8 |
| Power supply | V/Ph/Hz | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 |
| Starting Current | A | 30 | 32 | 35 | 51 |
| Refrigerant type | R410A | R410A | R410A | R410A | |
| Heating water flow rate | m3/h | 0.69 | 0.84 | 1.19 | 1.8 |
| Water pressure drop, condenser | Kpa | 24 | 24 | 24 | 29 |
| Brine flow rate | m3/h | 1.4 | 1.7 | 2.5 | 3.7 |
| water pressure drop, evaporator | Kpa | 27 | 28 | 27 | 29 |
| Heating water inlet/outlet dimension | Inch | 1" | 1" | 1" | 1" |
| Brine flow inlet/outlet dimension | Inch | 1" | 1" | 1" | 1" |
| Running Noise | dBA | 40 | 40 | 41 | 43 |
| Packing Dimension | mm | 685*500*785 | 685*500*785 | 685*500*785 | 685*500*785 |
| Packing Weight | kg | 60 | 61 | 63 | 70 |
