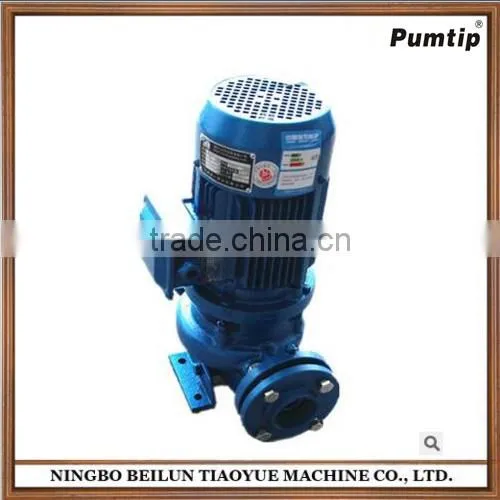

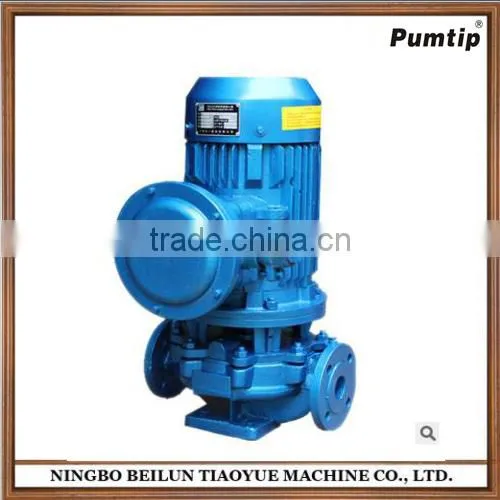

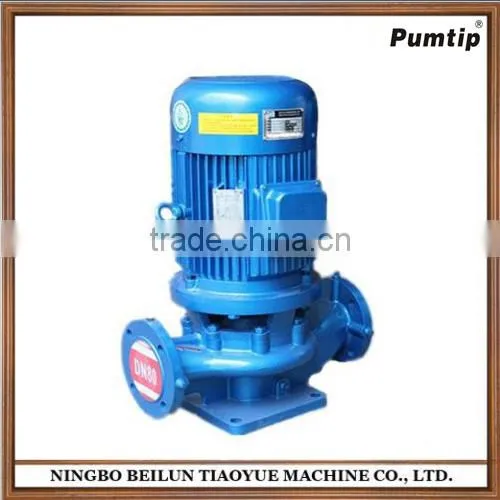

Piping Booster Clarified Water Jet Pump
Product description:
GD type pump is a pipeline booster pump, can be called silent booster pump for conveying water at room temperature or physical and chemical properties similar to the water of the medium.
Working conditions:
Working power supply: 380V/220V, 50Hz
Maximum operating temperature: less than 80
If the medium temperature is greater than 80, please use GDR hot water pipeline pump, corrosive environment, please use the GDF type corrosion resistant pipeline pump.
Product use:
1 water pressure, water pressure, high pressure water supply
2 office buildings, construction sites for water
3 residential water pressurization, villa water pressure
4 process flow of pressurized water supply
5 household or plant water pressure water supply, etc.
6 air conditioning systems, cooling towers, garden fountains and general water supply systems
Performance and characteristics:
Pipeline booster pump installed directly in the pipeline, the pressure on the transmission medium, the factory production pipeline centrifugal pump has the advantages of small volume, light weight, compact structure, which can be single or multiple (according to the working pressure of the pump) connected in series can be horizontal or vertical installation and use.
performance parameter:
|
Model |
Flow (m*3/h) |
Lift (m) |
Power (kw) |
Speed (r/min) |
| GD25-15 | 2.5 | 18 | 0.46 | 2800 |
| 4 | 15 | |||
| 5 | 12 | |||
| GD32-20 | 3.6 | 21 | 0.75 | 2800 |
| 6 | 20 | |||
| 7.2 | 19 | |||
| GD40-15 | 7.2 | 16 | 1.1 | 2900 |
| 11.4 | 15 | |||
| 15.6 | 12 | |||
| GD40-20 | 7.2 | 20.5 | 1.5 | 2900 |
| 11.4 | 20 | |||
| 15.6 | 18 | |||
| GD40-30 | 7.2 | 33 | 2.2 | 2900 |
| 11.4 | 30 | |||
| 15.6 | 27.5 | |||
| GD40-50 | 7.2 | 53 | 4 | 2900 |
| 11.4 | 50 | |||
| 15.6 | 48 | |||
| GD50-8 | 10.8 | 9.5 | 0.75 | 2900 |
| 18 | 8 | |||
| 21.6 | 7.5 | |||
| GD50-17 | 10.8 | 18.4 | 1.5 | 2900 |
| 18 | 17 | |||
| 21.6 | 15.6 | |||
| GD50-20 | 7.5 | 22 | 1.5 | 2900 |
| 12.5 | 20 | |||
| 15 | 18.5 | |||
| GD50-30 | 10.8 | 32 | 3 | 2900 |
