Home > Products > TIG welding machine > power saw machine TIG-200P 2015 new model inverter tig pulse welding machine
power saw machine TIG-200P 2015 new model inverter tig pulse welding machine
- 10000 Set / Sets per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Sichuan, China | Brand Name: | EXPERT |
Model Number: | TIG-200P | Arc Current: | 20-140 | Pulse Frequency: | NO |
Rated Duty Cycle: | 60% | Motor Type: | Other, NO | Dimensions: | 420LX200WX300H mm |
Usage: | pulse argon and manual welding | Voltage: | 220v±15% | Power(W): | 4000 |
Certification: | CE,CCC | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description
Top features
TIG-200P 2015 new model inverter tig pulse welding machine (Hot sell CE approved ) is highly welcome!
*Max output current(welding current) can be customized .
*Effortless arc control for the smooth welds
*Compact structure: 375LX155WX232Hmm
*Lightweight and portable: only 9kgs
*IBGT inverter technology provides a more stable output current and smooth arc welding .
*Argon welders for welding a range of materials and thicknesses in the shop or field espacially for thick material .
TIG-200P 2015 new model CE approved inverter electrode welding machine
Model Parameter | TIG-160 | TIG-200 | WS-200A TIG-200A | TIG-200P | |||
Rated input Volts (V) | 220VAC Single phase±10% | ||||||
Frequency (Hz) | 50/60 | ||||||
Rated input current (A) | 12.5 | 14.5 | 14.5(TIG) 20.3(MMA) | 14.5(TIG) 20.3(MMA) | |||
No load voltage (V) | 65 | 65 | 65 | 65 | |||
Output Amps range (A) | 10-110 | 10-130 | 10-140 | 20-140 | |||
Duty cycle (%) | 40 | ||||||
No load power lose (W) | 40 | ||||||
Efficiency (%) | 80 | ||||||
Power factor | 0.73 | ||||||
Arc starting mode | HF | ||||||
Max. rod diameter (mm) | 2.5 | 3.0 | 3.2 | 3.2 | |||
Base metal thickness (mm) | 0.3-5 | 0.3-8 | 0.3-8 | 0.5-8 | |||
Degree of insulation | F | ||||||
Degree of protection | IP21 | ||||||
Weight (Kg) | 9 | 9 | 9 | 9 | |||
Dimension (mm) | 375×155×232 | 375×155×232 | 375×155×232 | 420×200×300 |

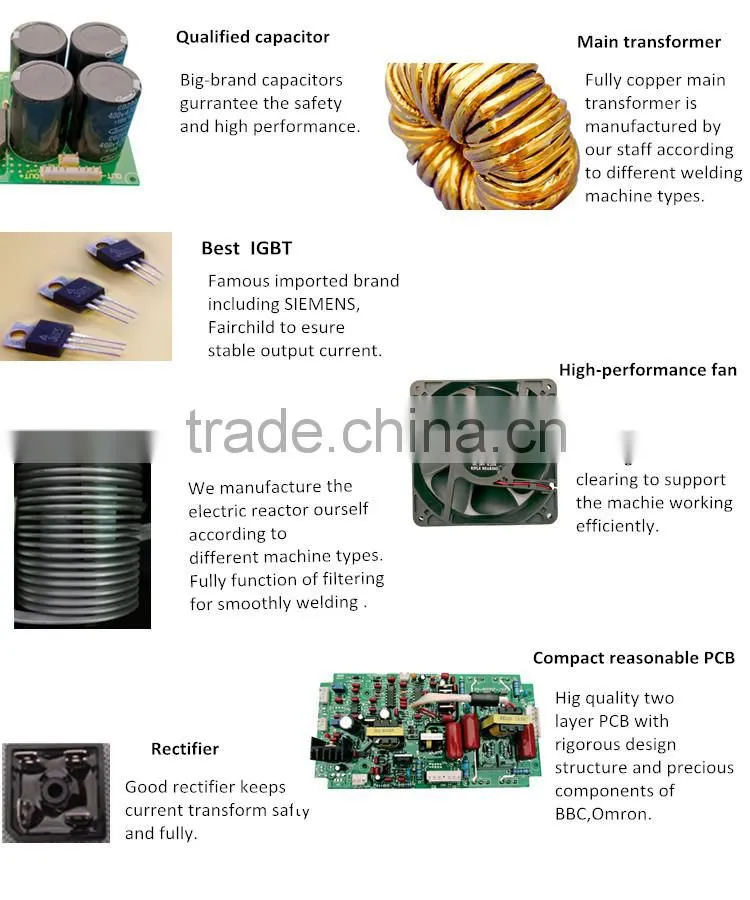

High quality-control start from every precious components

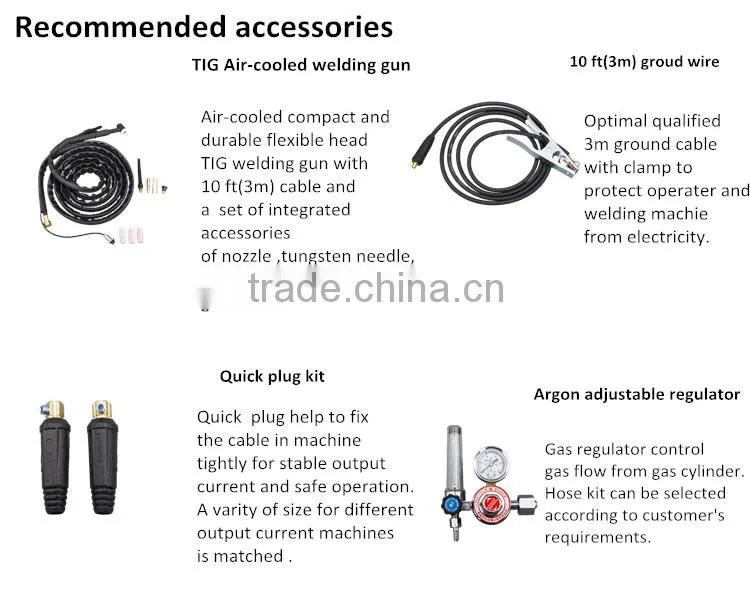

Standard accessories : Welding gun,Ground wire(3m),1 quick plug
Optional accessories:others
Invert IGBT TIG 200P stainless steel multi process pulse welding machine is Usually applied the package as follow:pcs/carton, cartons packed by playwood frame .It according to the quantity and shipping way .
1.Are you a manufacturer or Trading company?
We are a 25-year professional manufacturer of welding machine and inverter plasma cutter in Chengdu ,China .Our products include:
1.Inverter DC MMA welder series(MMA-160/200/250).
2.Inverter DC TIG welder series(TIG160A/200A/250A).
3.Inverter DC Pulse TIG series (TIG-160P/200P).
4.Inverter DC cutting machine series(cut-40/50/60/63/160/120).
5.CO2 MIG MAG welding machine series(NB-200/300)
6.CO2 MIG MAG MMA TIG all function in one machine series(NBM-250/350/500)
2.Delivery time ?
Machine you ordered is standard type and we have it in stock, Delivery time is 3-5working days after receiving payment .If we don't have stock, it takes 30-40 days since we need time to prepare raw material, manufacture, test to control the quality, making plywood frame for packing , welder shipping can be arranged from our or your forwarder.
3.How can I operate the machine in the right way for safely and keep long lifespan ?
Packaged will include formal manual, please follow the manual to operate and maintain the welding machine.
4.Do you have any extra support for agent, dealer, distributer and after-sales service ?
We provide fully technical support for our agent, dealer, distributer and other customers .If our new agent, dealer and distributers request training, we can support product training in our factory .If quality problem occurs for our arc welding machine,we will provide judgement and suggestion via the malfunctioning machine's pictures & video provided by end-user .Furthermore, we provide after-sales measures of back-up repair, engineer-assigned overseas and refund according to the condition .
