Top features
*OEM TIG arc welding machine is highly welcome!
*Max output current(welding current) can be customized .
*Effortless arc control for the smooth welds
*Compact structure: 375LX155WX232Hmm
*Lightweight and portable: only 9kgs
*IBGT inverter technology provides a more stable output current and smooth arc welding .
*Argon welders for welding a range of materials and thicknesses in the shop or field espacially for thick material .
Invert IGBT TIG 200P stainless steel multi process pulse welding machine
|
Model Parameter |
TIG-160 |
TIG-200 |
WS-200A TIG-200A |
TIG-200P |
|||
Rated input Volts (V) |
220VAC Single phase±10% |
||||||
Frequency (Hz) |
50/60 |
||||||
Rated input current (A) |
12.5 |
14.5 |
14.5(TIG) 20.3(MMA) |
14.5(TIG) 20.3(MMA) |
|||
No load voltage (V) |
65 |
65 |
65 |
65 |
|||
Output Amps range (A) |
10-110 |
10-130 |
10-140 |
20-140 |
|||
Duty cycle (%) |
40 |
||||||
No load power lose (W) |
40 |
||||||
Efficiency (%) |
80 |
||||||
Power factor |
0.73 |
||||||
Arc starting mode |
HF |
||||||
Max. rod diameter (mm) |
2.5 |
3.0 |
3.2 |
3.2 |
|||
Base metal thickness (mm) |
0.3-5 |
0.3-8 |
0.3-8 |
0.5-8 |
|||
Degree of insulation |
F |
||||||
Degree of protection |
IP21 |
||||||
Weight (Kg) |
9 |
9 |
9 |
9 |
|||
Dimension (mm) |
375×155×232 |
375×155×232 |
375×155×232 |
420×200×300 |
|||
High quality-control start from every precious components

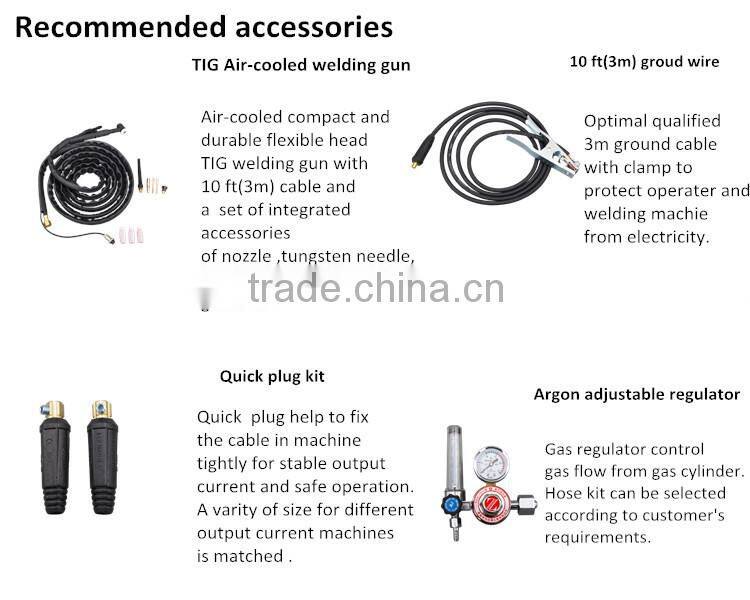

Standard accessories : Welding gun,Ground wire(3m),1 quick plug
Optional accessories:others
Invert IGBT TIG 200P stainless steel multi process pulse welding machine is Usually applied the package as follow:pcs/carton, cartons packed by playwood frame .It according to the quantity and shipping way .
*Experianced professional sales support in-24hours response for your questions and product inquiry
*Free 1 year warranty for all EXPERT welding machine.
*1 set of free spare parts(in our standards) will be provided for replacement for every 20pcs machines
*Maintenance manual or video service, we provide online support according to your picture or video feedback. customized after-sales service according to different conditions.
*Onsite Product training is available at our factory if client request .
