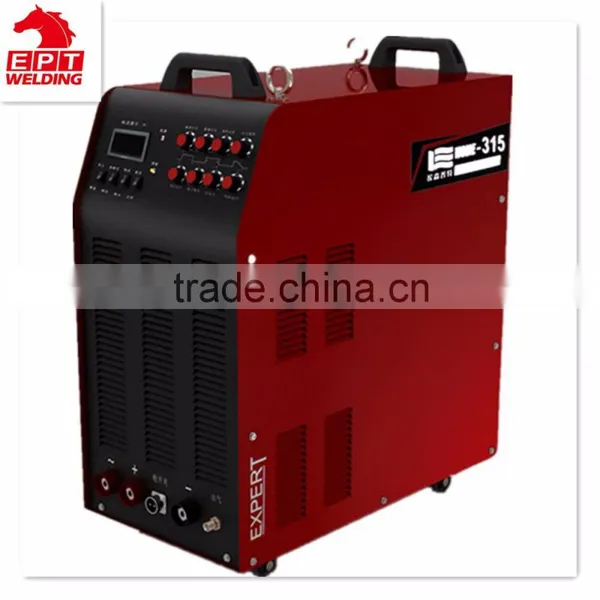

WSME 315 thermal arc aluminum welding machine
- 10000 Set / Sets per Month
- Shanghai Shenzhen Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | China | Brand Name: | EXPERT | Model Number: | WAME 315 |
After-sales Service Provided: | No overseas service provided |
Product Description
Top features
*OEM is highly welcome!
*Max output current(welding current) can be customized .
*Good square wave power,steady arc and no need to stabilize arc with high frequency continuously.
* stable arc,centralized heating,easy to fill the wire,easy to operate.
* clear width of the continuously adjustable,clear and strong oxide film,beautiful bright weld.
* high duty cycle,suitable for long weld at heavy current
* Process:with function of AC/DC or MMA/TIG or Constant Current/Pulse.
* Acceptable welding material:for aluminum,aluminum alloy,carbon steel,stainless steel and metallic materials.
WSME 315 thermal arc aluminum welding machine
Mode | WSME-315 | WSME-500 |
|
Rated input power(V) | AC380V±15% 50/60Hz | ||
Frequency(Hz) | 50/60 | 50/60 |
|
Rated input current(A) | 14.4 | 29.7 |
|
Output current range(A) | 20-315 | 20-500 |
|
No load voltage(V) | 65 | 78 |
|
Preflow time (S) | 0-2 | 0-2 |
|
Pulse in ratio(%) | 20-80 | 20-80 |
|
Decay time(S) | 0-5 | 0-5 |
|
Gas delay time (S) | 1-8 | 1-8 |
|
Remote | No | No |
|
Arc striking model | HF | HF |
|
Efficiency(%) | 85 | 85 |
|
Ducy cycle (%) | 60 | 60 |
|
Power factor | 0.93 | 0.93 |
|
Insulation grade | F | F |
|
Shell protection level | IP21 | IP21 |
|
Weight(kg) | 60 | 70KG |
|
Dimension(mm) | 622×326×650 | 622×326×650 |
|

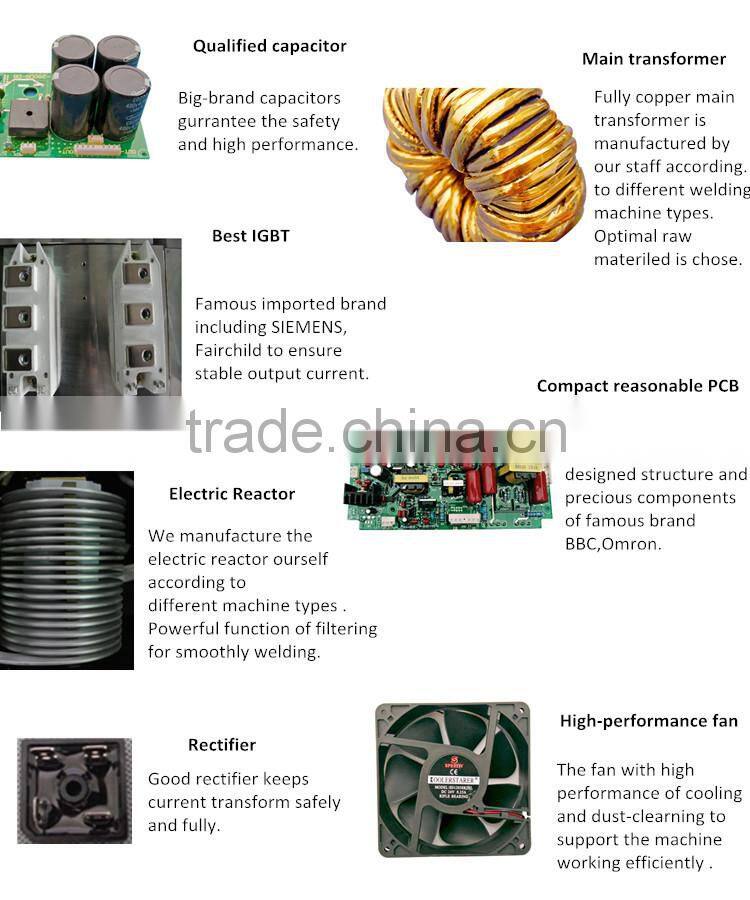

High quality control start from every precious conponents

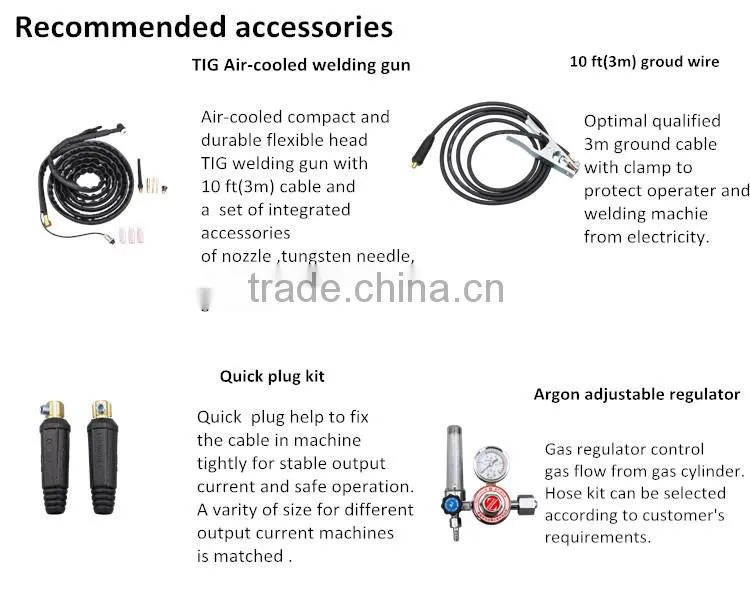

Standard accessories:ground wire, TIG welding gun ,regulator .
Optical accessories:Others, accroding to customers' request .
1. Warranty: Free 1 year warranty for all EXPERT welding machine;
2. Quick response: Experianced professional sales support in-24hours response for your questions and product inquiry;
3. Spare parts: 1 set of free spare parts(in our standards) will be provided for replacement for every 20pcs machines;
4. Technical Support online: Maintenance manual or video service, We provide online support according to your picture or video feedback. Customized after-sales service according to different conditions;
5. Training: Free onsite Product training is available at our factory if client request.
WSME 315 thermal arc aluminum welding machine is Usually applied the package as follow:pcs/carton, cartons packed by plywood frame .It according to the quantity and shipping way .
1.Are you a manufacturer with factory ?
Yes, we are a 25-year professional manufacturer with factory in Chengdu ,China .
2.Delivery time ?
If the machine you ordered is standard type and we have it in stock, Delievery time is 3-5working days after receiviing payment .If we don't have stock, it takes 30-40 days since we need time to prepare raw material to manufacture,several test to control the quality,making laywood frame for packing ,and arrange proper shipping arrangement for you from our fowarder.
3.How can I operate the machine in the right way for safety and long lifespan ?
We will ship the welding machine together with formal manual, pls do follow he manual to oeprate and maintain the machine .
4.Do you have any extra support for agent,dealer,distributer and after-sales service ?
We provide fully technical support for our agent,dealer,distributer and other customers .If our new agent,dealer and districuters request training,we can support product training in our factory and arrange ralevant things including hotel,eating for you .If quality occurs for our arc welding machine ,we will provide judgement and suggestion via the malfunctioning maachine's picutures&video provided by end-user .Furthermore, we provide after-sales measures of back-up repaire, engineer-assigned overseas and refund accroding to the condition .
