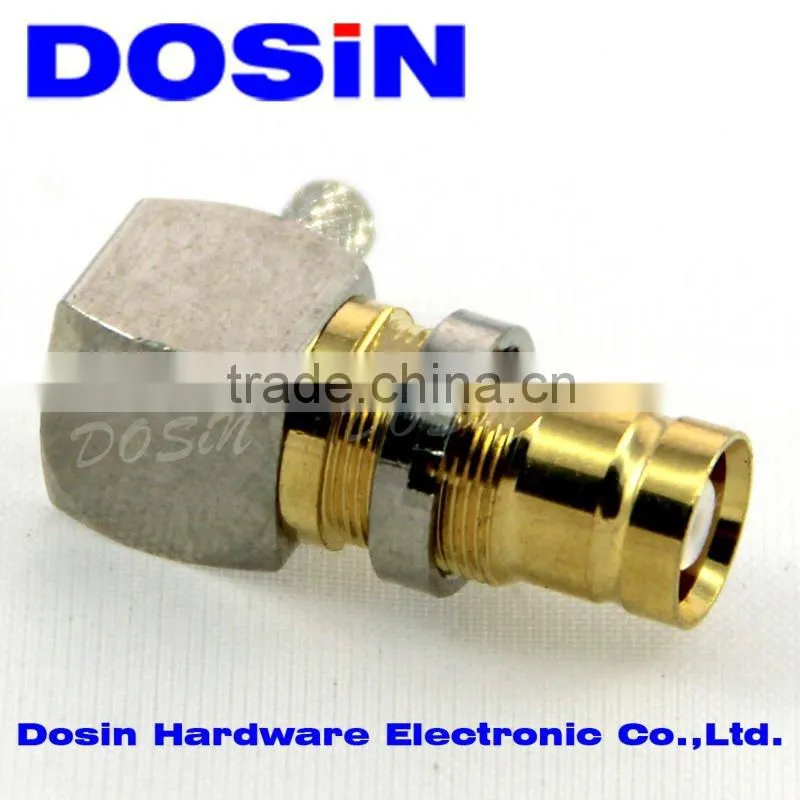

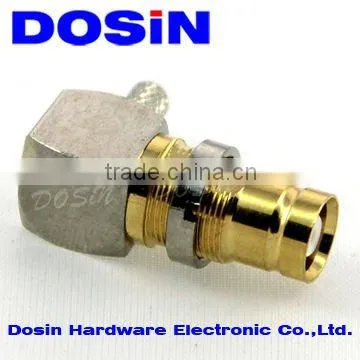

Help CenterSMA Thru Hole Jack Right Angle PCB Mount Medium Version Sma Connector Drawing
Related Products
-
NEW Adapter to Coaxial Cable BNC MaleConnectorUS$ 0.1 - 1.5MOQ: 200 Pieces -
Sma Micro-strip rf ConnectorUS$ 0.1 - 1.5MOQ: 200 Pieces
-
Male Sma to n Female AdapterUS$ 0.1 - 1.5MOQ: 2000 Pieces
-
Sma to n Female ConnectorUS$ 0.5 - 0.8MOQ: 1000 Pieces
-
Sma Kkk Connector t Type Series AdapterUS$ 0.5 - 1MOQ: 1000 Sets
Specifications
sma connector1,material: copper or zinc
2,plating: gold/nickel/tin
3,high quality (ROHS)
4,50OHM,75OHM.cables
Features:
- Bayonet coupling, small size and low cost.
- 50Ω and 75Ω are available and intermateable
- Various options for different applications
Applications:
- Antennas
- Broadcast
- Radios
- Telecom
Electronical Specifications
Impedance |
50Ω |
75Ω |
Frequency Range |
0-4 GHz |
0-2 GHz |
Working Voltage |
500 VRMS max. at sea level |
500 VRMS max. at sea level |
Dielectric Withstanding Voltage |
1500 VRMS min. at sea level |
1500 VRMS min. at sea level |
VSWR |
Straight: 1.3 max., R/A: 1.5 max. |
Straight: 1.3 max., R/A: 1.5 max. |
Contact Resistance |
Center Contact: 3 milliohm Max. |
Center Contact: 3 milliohm Max. |
Outer Contact: 2 milliohm Max. |
Outer Contact: 2 milliohm Max. |
|
Insulator Resistance |
5000 megaohms min. |
5000 megaohms min. |
Material Specificions
Parts Name |
Material |
Finish |
|
Center Contact |
Male |
Brass |
3u" Gold or Silver per requirement |
Female |
BeCu or P. Bronze |
3u" Gold or Silver per requirement |
|
Body, Metal Parts |
Brass |
Nickel |
|
Insulators |
PTFE, Delrin, PBT |
None |
|
Clamp Gaskets |
Silicone rubber |
None |
|
Crimp Ferrules |
Annealed copper |
Nickle or Silver per requirement |
|
MOQ : 500Pcs
Pckaging style: Neutral or customized packing accepted
Payment terms: We accept Paypal,T/T, Western Union ,L/C
