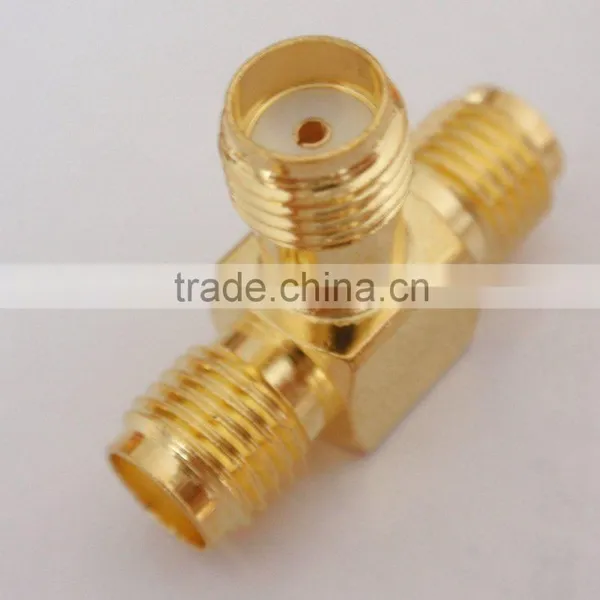

Help CenterSma Kkk Connector t Type Series Adapter
Related Products
Specifications
1,material: copper or zinc2,plating: gold/nickel/tin
3,inside contact: brass and gold pate
4,high quality or reasonale price
SMA Type Series RF Coaxial Connectors
Type SMA is one kind of RF coaxial connectors that is widely applied, with small-sized thread coupling characteristic. Impedance is 50Ω. The characteristic of connectors is in wide frequency range,excellent performance,high reliability. They are used in connection with RF cable or micro-strip line in RF circuit of the WLAN system,controlled program,microwave equipment and digital communication system. The frequency can be up to 18GHz by using semi-rigid or semi-flex cable.
Technical Specification
Temperature Range: -55 to +155 Deg.C
Impendance: 50 Ω
Frequency Range: DC to 12.4 GHz(Semi-Rigled Cable DC-18GHz)
Insertion Loss: 0.15 dB Max @ 6 GHz
VSWR
Straight: Flexible cable ≤1.10+0.02f
Semi-rigid cable ≤1.07+0.018f
Right angle: Flexible cable ≤1.20+0.03f
Semi-rigid cable ≤1.17+0.02f
Working Voltage: 335 V @ SEA LEVEL
Withstand Voltage: 1000 V @ SEA LEVEL
Contact resistance
Center Contact ≤3 mΩ
Outer Contact ≤2.5 mΩ
Insulation Resistance ≥5000 MΩ
Durability(mating) ≥ 500 cycles
