Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > FAKRA SMB Code B Straight Jack Female Solder/crimp White Colour for Radio With Phantom Connector

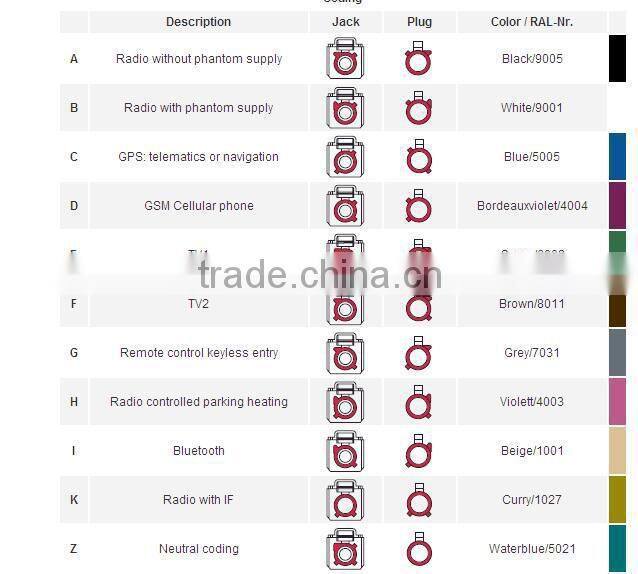

FAKRA SMB Code B Straight Jack Female Solder/crimp White Colour for Radio With Phantom Connector

Name: FAKRA SMB Code B Straight Jack Female Solder/crimp White Colour for Radio With Phantom Connector
Brand: DOSIN
SKU: 120146931
Availability: InStock

FAKRA SMB Code B Straight Jack Female Solder/crimp White Colour for Radio With Phantom Connector thumbnail-1

FAKRA SMB Code B Straight Jack Female Solder/crimp White Colour for Radio With Phantom Connector photo-1

US$ 0.5 - 0.8 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DOSIN

Model Number:

dosin-fakra connector

Contact Supplier Request Quote Chat Now

Dongguan Dosin Hardware Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen and hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DOSIN

Model Number dosin-fakra connector

Type Other, fakra connector

Application RF

Gender Female

Blue Fakra Right Angle Female PCB Mount Connector
Type:Fakra-KWE
Place of Origin: Guangdong,China

Product Description

Model	DOSIN-Fakra
Major Technical Characteristics
Type	Fakra-KWE
Impedance	50Ω
Frequency Range	DC~3GHz
Center conductor retention force	≥0.16 N
Insulation resistance	≥1000MΩ
Voltage Standing Wave Ratio	≤1.07+0.10f(GHz)
Durability(mating)	≥500(cycles)
Cable	PCB
Material & Plating
Body	Brass		Gold plated
Pin contact	Tin bronze		Gold plated
Socket contact	Beryllium-copper		Gold plated
Insulator	PTFE
Crimp ferrule	Copper alloy	Nickel or gold plated
O-ring sealing	6146 silicone rubber

Packaging & Shipping

Our Services

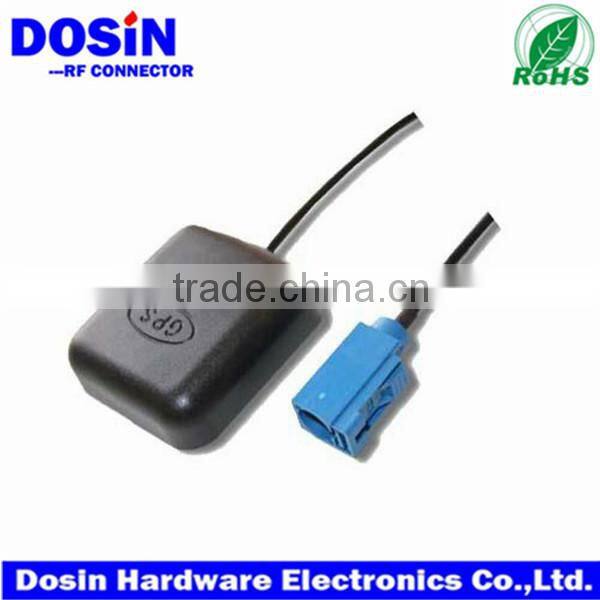

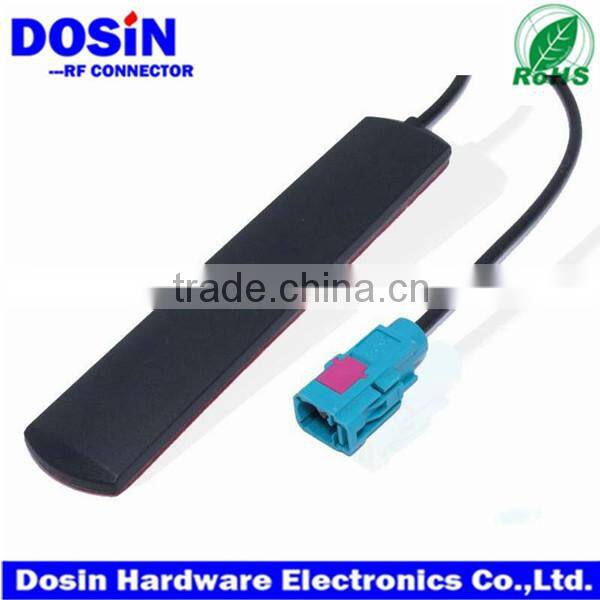

We supply RF connectors,adapters,cable assemblies,GSM/3G/WIFI/GPS antennas/Project box and Custom Service for them.Especially Customized RF Cable Assemblies and aluminum box are
welcome to be customized! welcome =

Company Information

Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005 and specialized in manufacturing BNC, MINI BNC, MICRO BNC, TNC, N, UHF, MINI UHF, F, PAL, RCA, SOLDERLESS, FME, SMA, SMB, SSMB, SMZ (BT43), MCX, MMCX, 1.6-5.6 and 1.0-2.3 Coaxial series, cable assemblies, Antennas, communication products, military / aerospace, broadcast and instrumentation, security industry, video surveillance, wireless video surveillance, HD video display products.

Factory area of 3,000 square meters, We now have more than a hundred employees and currently export nearly 70% of our products to worldwide places.

With our professional connector manufacturer, our experienced engineers, well-equipped workshop and excellent quality control throughout all stages of production is to keep our business has always been the key to growth.

Companies adhering to the "integrity and pragmatic, thrifty and hard work; innovation, excellence" business philosophy, "quality, service, reputation, Thanksgiving" as the basis for survival and development, the company has passed: ISO9001: 2008 quality system certification, in testing : advanced HP, the domestic advanced test equipment to meet customer demand.

The professional sales staff will keep in touch with you at any time, and we look forward to the formation of a new successful business relationship with customers around the world in the near future. Thank you for taking the time to view our products and look forward to the opportunities for cooperation!

FAQ

What we do ?

DOSIN,which with the conprehensive strength to research,develop and selltelecom antennas since 2005. Dosin do has experienced considerable growth on the domestic market and been expanding the whole international market.rf coaxial connector and rf cable assembly high grade and top quality antennas. Dosin earns a good reputation and plays a leading role in the field of communication connector and antenna.
