Home > Products > Fakra connector > Blue Fakra straight Female connector for GPS GSM antenna

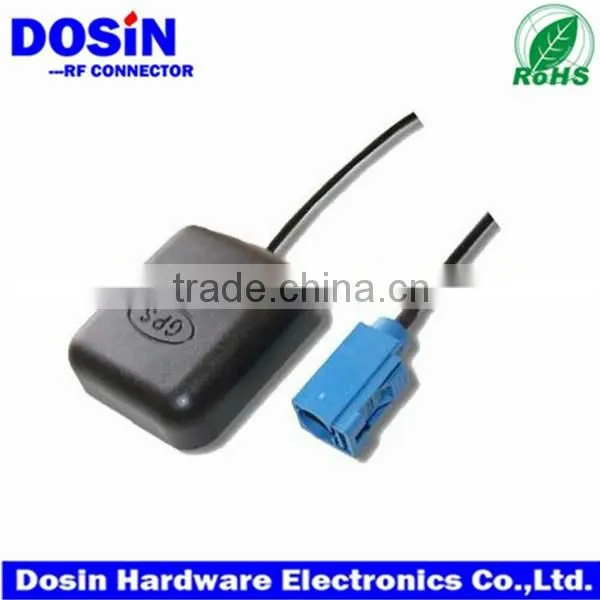

Blue Fakra straight Female connector for GPS GSM antenna

Name: Blue Fakra straight Female connector for GPS GSM antenna
Brand: DOSIN
Availability: InStock

FOB Price

USD $0.5 - $0.8 / Piece

1000 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port shenzhen and hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	DOSIN
Model Number	dosin-fakra connector	Type	Other, fakra connector
Application	RF	Gender	Female

Product Description

Blue Fakra Right Angle Female PCB Mount Connector
Type:Fakra-KWE
Place of Origin: Guangdong,China

Product Description

Model	DOSIN-Fakra
Major Technical Characteristics
Type	Fakra-KWE
Impedance	50Ω
Frequency Range	DC~3GHz
Center conductor retention force	≥0.16 N
Insulation resistance	≥1000MΩ
Voltage Standing Wave Ratio	≤1.07+0.10f(GHz)
Durability(mating)	≥500(cycles)
Cable	PCB
Material & Plating
Body	Brass		Gold plated
Pin contact	Tin bronze		Gold plated
Socket contact	Beryllium-copper		Gold plated
Insulator	PTFE
Crimp ferrule	Copper alloy	Nickel or gold plated
O-ring sealing	6146 silicone rubber

Packaging & Shipping

Our Services

We supply RF connectors,adapters,cable assemblies,GSM/3G/WIFI/GPS antennas/Project box and Custom Service for them.Especially Customized RF Cable Assemblies and aluminum box are
welcome to be customized! welcome =

Company Information

Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005 and specialized in manufacturing BNC, MINI BNC, MICRO BNC, TNC, N, UHF, MINI UHF, F, PAL, RCA, SOLDERLESS, FME, SMA, SMB, SSMB, SMZ (BT43), MCX, MMCX, 1.6-5.6 and 1.0-2.3 Coaxial series, cable assemblies, Antennas, communication products, military / aerospace, broadcast and instrumentation, security industry, video surveillance, wireless video surveillance, HD video display products.

Factory area of 3,000 square meters, We now have more than a hundred employees and currently export nearly 70% of our products to worldwide places.

With our professional connector manufacturer, our experienced engineers, well-equipped workshop and excellent quality control throughout all stages of production is to keep our business has always been the key to growth.

Companies adhering to the "integrity and pragmatic, thrifty and hard work; innovation, excellence" business philosophy, "quality, service, reputation, Thanksgiving" as the basis for survival and development, the company has passed: ISO9001: 2008 quality system certification, in testing : advanced HP, the domestic advanced test equipment to meet customer demand.

The professional sales staff will keep in touch with you at any time, and we look forward to the formation of a new successful business relationship with customers around the world in the near future. Thank you for taking the time to view our products and look forward to the opportunities for cooperation!

FAQ

What we do ?

DOSIN,which with the conprehensive strength to research,develop and selltelecom antennas since 2005. Dosin do has experienced considerable growth on the domestic market and been expanding the whole international market.rf coaxial connector and rf cable assembly high grade and top quality antennas. Dosin earns a good reputation and plays a leading role in the field of communication connector and antenna.

What is beneficial for you ?

1. Give you a profession wireless solution .

2. A full quotation as your required will be offered in 24 hours .

3. Samples will be delivered within 3 days .

4. 10-designers team-workers will give you ideas for your required products.

Contact Us

Dongguan Dosin Hardware Electronics Co., Ltd.: Contact nameXIAOMENG GUAN
Chat Now; Phone86-769-81153906,13925730591; AddressNO.6, Lane 12,Road Dongda, Shatou,Chang'an Town,Dongguan City, Dongguan, Guangdong

*Email
Please enter Your valid email address.
*To

XIAOMENG GUAN
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.
