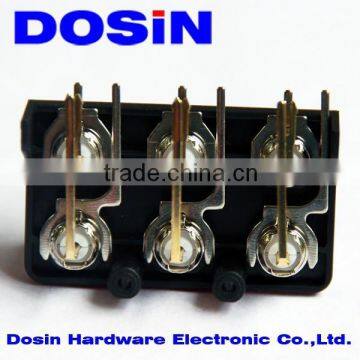

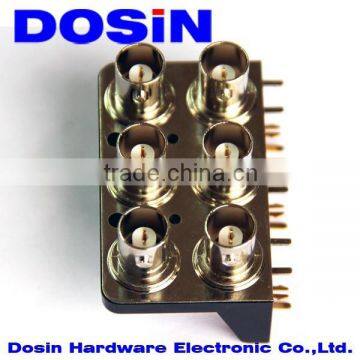

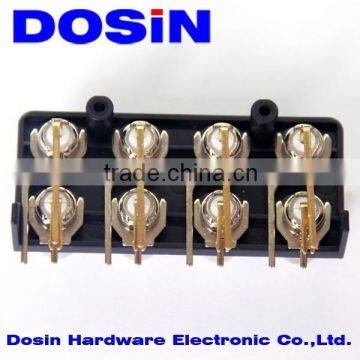

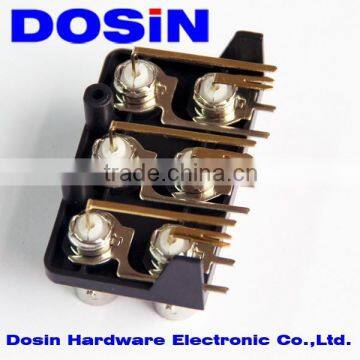

Help CenterHigh Quality Female Gander Right Angle BNC Connector for PCB Mount
Related Products
-
2015 High Quality Right Angle Pcb Mount Bnc ConnectorUS$ 0.3 - 0.6MOQ: 200 Pieces -
2015 HD SDI R/A 3G 4Ghz 2X1 for Pcb Mount Bnc ConnectorsUS$ 0.3 - 0.6MOQ: 200 Pieces
-
Right Angle PCB Mount Screw BNC Female Connectors for CCTV CameraUS$ 0.3 - 0.6MOQ: 200 Pieces
-
Bnc Connector for Cctv CameraUS$ 0.3 - 0.6MOQ: 200 Pieces
-
Metal Pcb Mount Bnc Connector for CctvUS$ 0.3 - 0.6MOQ: 200 Pieces
| Electric Data | ||
| Characteristic Impedance | 50ohm, 75ohm | |
| Frequency Range | 0-4GHz | |
| Working Voltage | 500 VRMS(max at sea level) | |
| Dielectric Withstanding Voltage | 1500 VRMS(min at sea level) | |
| VSWR | ≤1.30 | |
| Contact Resistance | Inner: 1.5 milliohms(max) | |
| Outer: 1 milliohms(max) | ||
| Insulation Resistance | 5000 megohms(min) | |
| Mechanical Data | ||
| Durability Mating | 500 Cycles min. | |
| Material Data | ||
| Connector Parts | Materials | Plating Finish |
| Body | Brass | Nickel |
| Female Pin | Beryllium Bronze or Phosphor Bronze | Gold |
| Insulators | PTFE | N/A |
| Environmental Data | ||
| Temperature Range | -65~+165℃ | |
Note: We can provide other materials and plating specifications according to customers′requirements
1: Broadest product Stocked selection:150,000 plus, There are new products added every day.
2: Good quality :80% of products have UL CE ROHS certificate. ISO9001:2008.
3: Low price: we can help you reduce purchase 15% cost in the future 3 month.
4: Delivery time 2~15 days, On-Time delivery.
5: Help customers find the non-standard products.
6: OEM/ODM services.
7: Free samples will be sent for your evaluation.
8: DOSIN experienced overseas sales team, They have professional product knowledge and enthusiastic service
9: 7 years' industry experience with over $10 million in annual exports.
10: RENHOTEC Corporation of DOSIN is one of the fastest growing distributors of electronic components in the world.
