Specifications
Jack bulkhead panel BNC connector1.good quality
2.various options
3.reasonable price

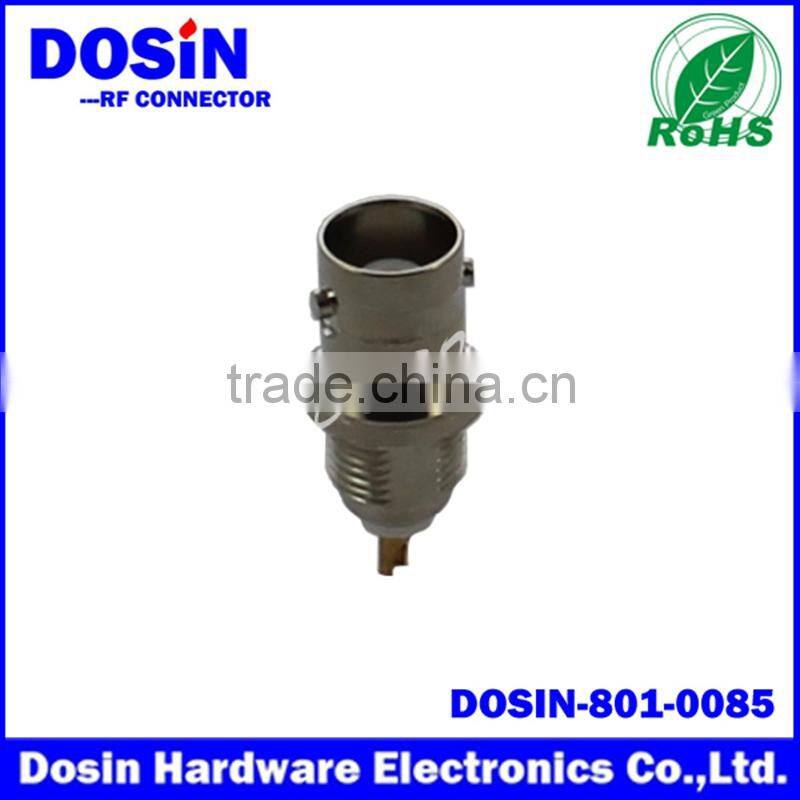

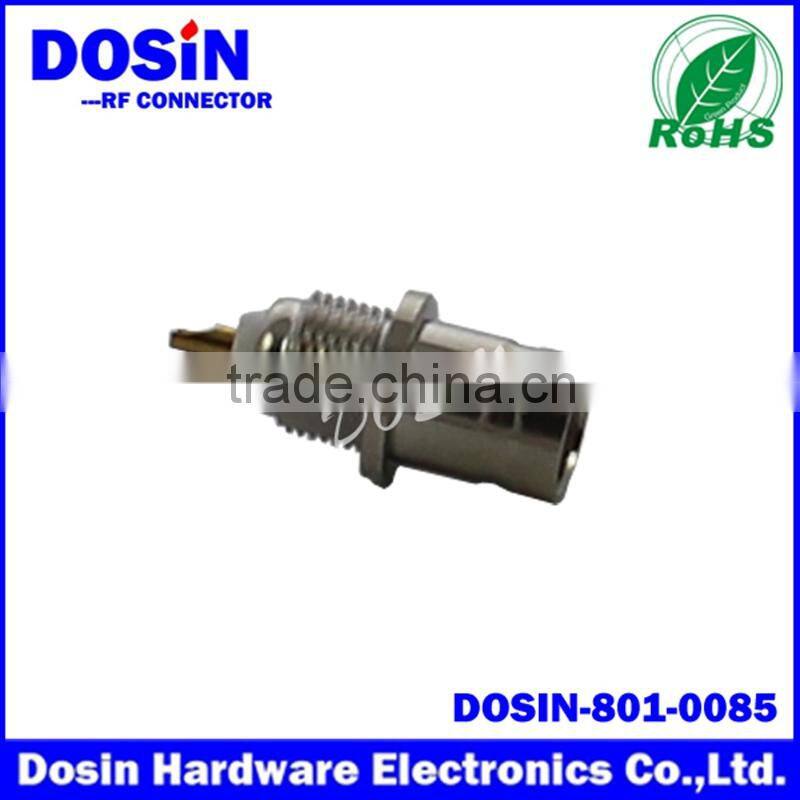

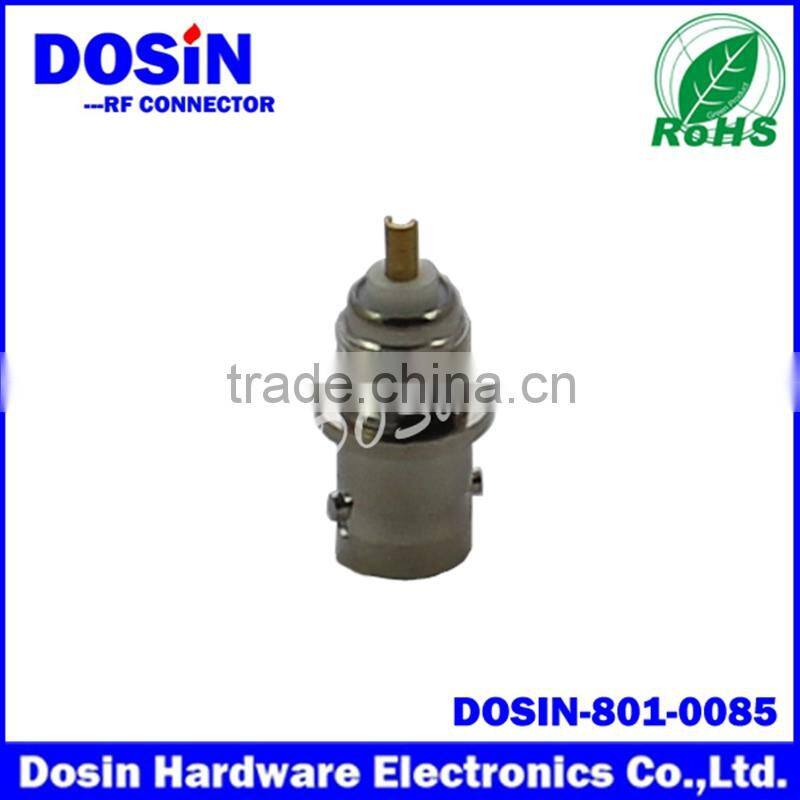

Jack bulkhead panel BNC connector
Hot sell BNC connetors for electronic:
BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device.It joins rapidly,keeps in touch with the characteristic such as being reliable,applys to the radio equipment and electron tube instrument field and joins the coaxial cable of the radio frequency extensively.
BNC Connector Application:
1.Antennas
2.Broadcast
3.radios
4.Electronic test equipment
5.Serial digital and Analog interface
6,Non-professional radio antenna connections
BNC CONNECTOR MAJOR TECHNICAL CHARCTERISTICS
| Temperature Range | -55 to +155°c(PE Cable-40 to 85°c) | |
| Vibration | 100m/s (10-500Hz). 10g | |
| Impedance | 75Ω | |
| Frequency | DC to 11GHZ | |
| Working Voltage | 1000V r.m.s at sea level | |
| Withstanding Voltage | 2500V r.m.s at sea level | |
| Contact Resistance | Center contact | ≤1m Ω |
| Outer contact | ≤1m Ω | |
| Insertion Loss | ≤0.24dB(6GHz) | |
| Insulation resistance | ≥5000M Ω | |
| Center Conductor Retention Force | ≥0.56N | |
| Voltage Standing Wave Ratio | Straight | ≤ 1.15/6GHz |
| Right angle | ≤ 1.25/6GHz | |
| Durability(mating) | ≥ 500cycles |
BNC CONNECTOR MATERIAL AND PLATING
| Body | zinc alloy | Nickel plated |
| Pin contact | Brass | Gold plated |
| Socket contact | Beryllium or tin bronze | Nickel plated |
| Resilient Contact | Beryllium-copper | Nickel plated |
| Insulator | POM | |
| Crimp Ferrule | zinc allloy | Nickel or gold plated |
| O-ring Sealing | 6146 silicon rubber |
APPLICABLE STANDARD
MIL=C-39012
CECC 22210
IEC 60169-16

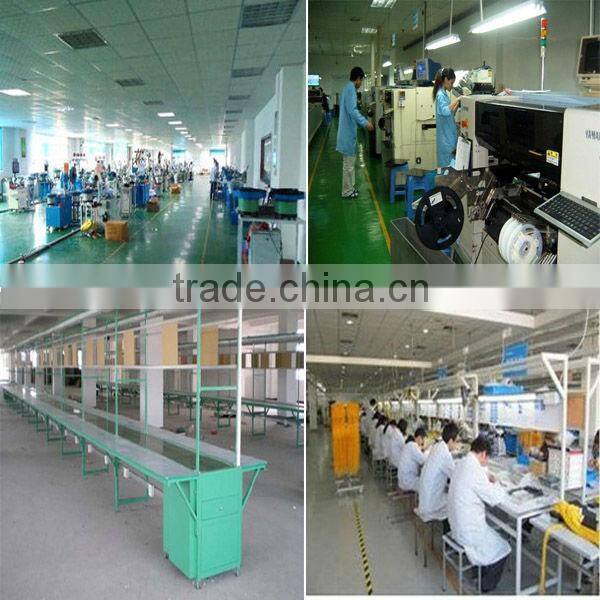

BNC connector and factory
Dongguan Dosin Hardware Electronics Co.,Ltd
Quality is essential to both of us,we believe that excellent quality,reasonable price ,mutual benefit will be good basis of our cooperation.If you have any requirement,please contact us.We are looking forward to cooperating with you!
