Home > Transportation > Forklifts & Parts > Forklift > Heavy Duty Scale Hydraulic Trolley

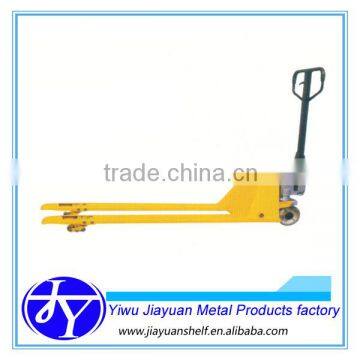

Heavy Duty Scale Hydraulic Trolley

Name: Heavy Duty Scale Hydraulic Trolley
Brand: Jiayuan
SKU: 120124741
Availability: InStock

Heavy Duty Scale Hydraulic Trolley thumbnail-1

Heavy Duty Scale Hydraulic Trolley photo-1

US$ 120 - 240 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

Jiayuan

Contact Supplier Request Quote Chat Now

Yiwu Jiayuan Metal Products Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name Jiayuan

Model Number Jy-PH09

Type Manual Pallet Truck

Power Souce Other, none

Rated Loading Capacity 2000kg

Max. Lifting Height 200mm

Min. Lifting Height 85mm

Fork Length 915/1100/1150/1220

Fork Width 520/550/685mm

Overall Dimensions 1550x550x1220MM

Certification SGS, ISO9001

After-sales Service Provided Overseas service center available

Heavy Duty Scale hydraulic trolley

Features:

1. A built in overload valve and totally sealed hydraulic pump.

2. German seal kit offers long span life of pump for 3 years warranty.

3. Heavy duty and reinforced forks for greatest strength and durability.

4. 2 nylon entry and exit rollers prevent physical exertion of the operator and protect load rollers and pallet.

5.Oilless bushings at key points offer you less operating force and longer span life of pallet truck.

6;size:1 550x550x1220MM

7, capacity;2000kg ,2500 and 3000kg is vailable

8.Full hydraulic system. Bullet connection between steering shaft and pump piston. It is convenient to replace the rear wheel.

9.Easy to maneuver with 210 degrees turning radius.

10.Grease fitting at all pivotal points to ensure trucks long life and easy control.

11.Special lowering valve to control the rate of descent and over load by-pass valve to make the trucks durable.

12.Number of pump strokes -10. Lift height per stroke: 12mm.

13.Reliable oil leak-proof hydraulic system.

14.Option: nylon wheel, polyurethane(PU) wheel, rubber wheel single fork roller or tandem roller.

More details:

Model No.		JY120	JY125	JY130
Capacity	(kg)	2000	2500	3000
Max. Fork Height	h (mm)	200 /190
Min. Fork Height	h (mm)	85 (or 75)
Fork Overall Width	m (mm)	520/550/540/685
Load Roller Tandem Wheel	mm	8060/7470/80*70
Load Roller Single Wheel	mm	8084/7493/80*93
MAx lifting height	(mm)	>110
Steering wheels	(mm)	180*50
Fork Length	l (mm)	915/1100/1150/1220
Fork size	(mm)	15050, 16050
Wheel Material		nylon/polyurethane/rubber
material		steel
brand		Jiayuan

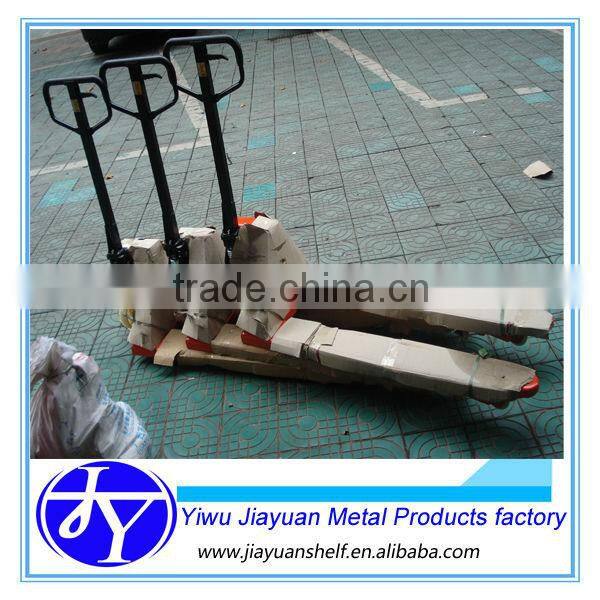

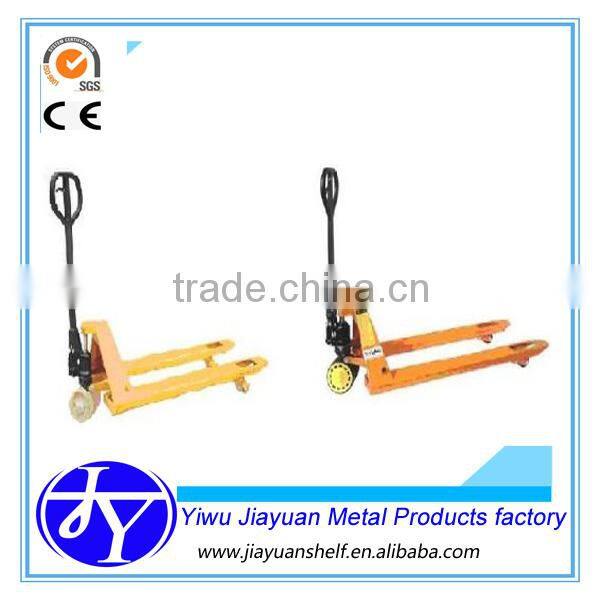

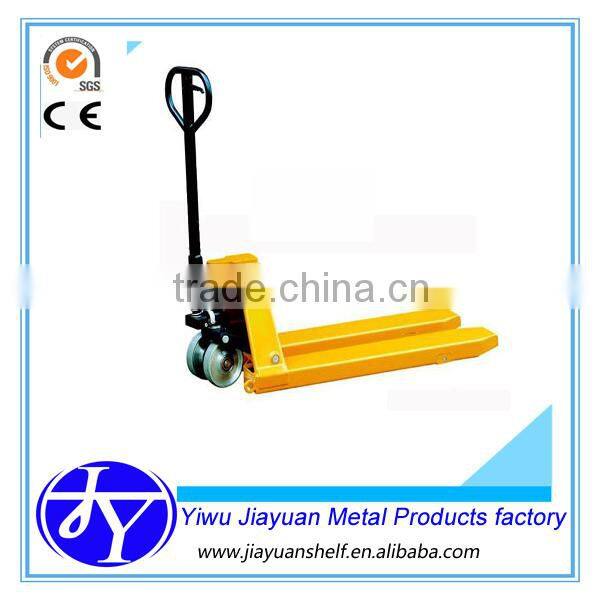

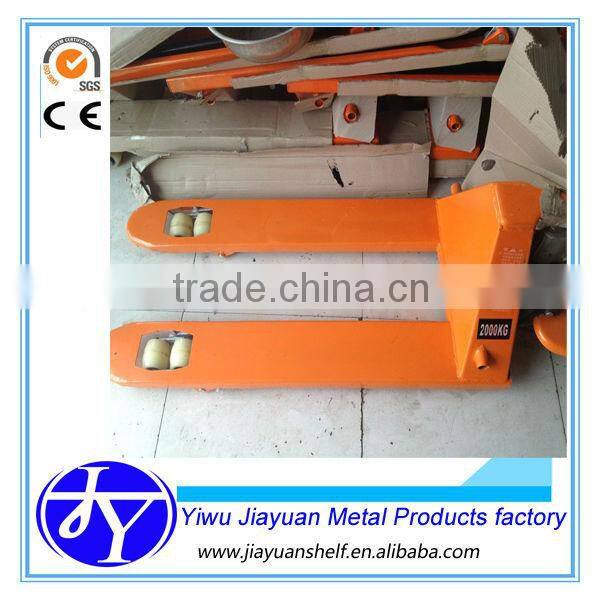

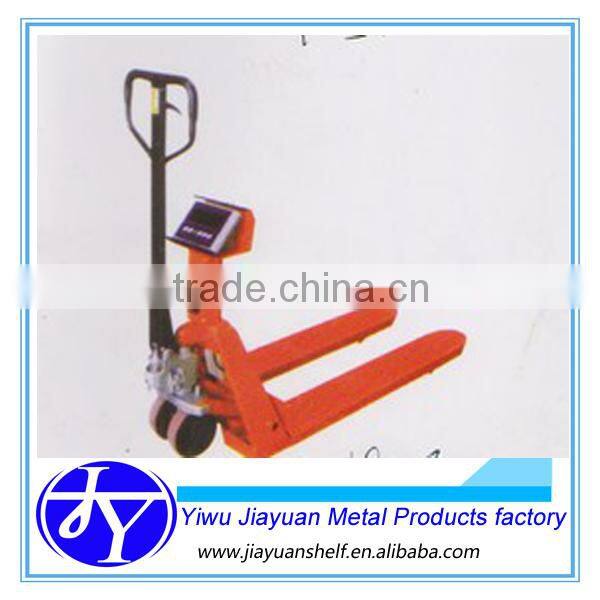

Pictures:

VI Company description

Our Jiayuan company is an factory manufacturing the supermarket and warehouse tools mainly like supermarket shelf , rack, wire shelf, basket, checkout counter, hooks and trolley, warehouse rack and so on. We are professional in making and designing varies shopping cart, also we can make it according to your requirement.

So we can supply a lower factory (invoice) price and some perfect foreign trade process. If you are interested in our products, please feel free to contact us, there are various color, style, and sample for your selection. For more about us, please visit our website: www.jiayuanshelf.en.china.cn, We will be at your service any time or you can contact with me directly at any time.
