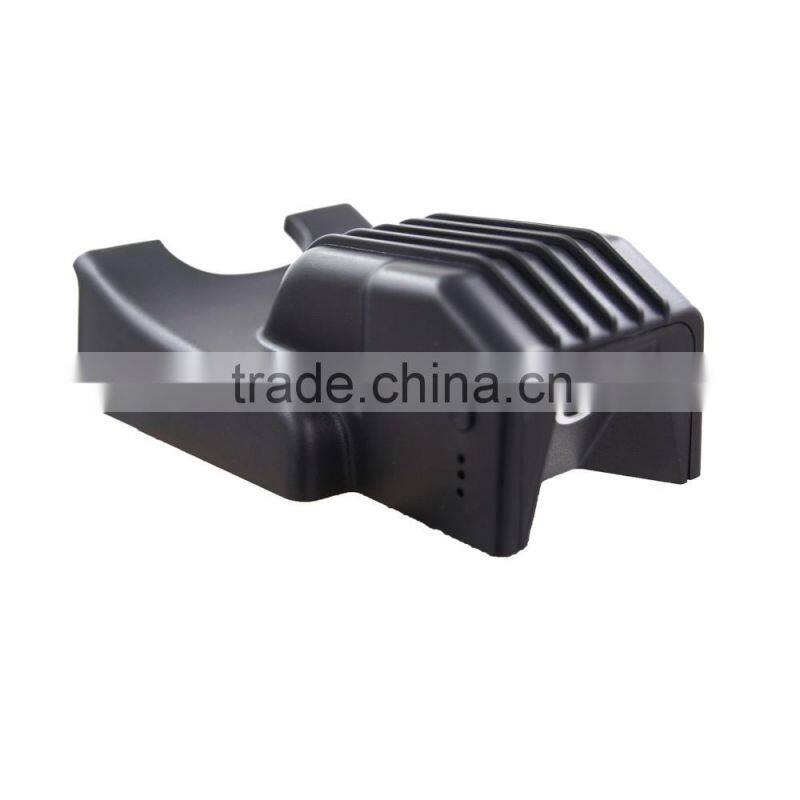

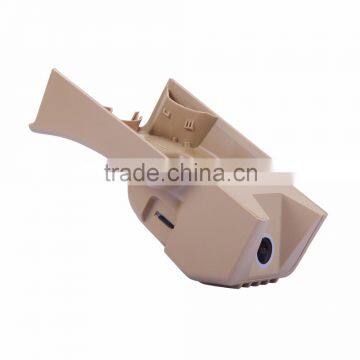

Help CenterManufacture Price 1080P HD WIFI CAR DVR Night Vision Vehicle Camera Recorder for Benz Car
Related Products
-
New Hidden Type Car DVR Registrar Fit for Ferrari and Maserati Car With Wifi 1080P 170 DegreeUS$ 565.00 - 565.00MOQ: 1 Set -
Vehicle DVR Black Box Registrar Fit for Ferrari Car With Wifi 1080P 170 DegreeUS$ 565.00 - 565.00MOQ: 1 Set
-
Car DVR Black Box Registrar Fit for Maserati Car With Wifi Support Android/iosUS$ 565.00 - 565.00MOQ: 1 Set
-
Car DVR Camera Registrar Fit for Maserati Car With Wifi 1080P 170 DegreeUS$ 565.00 - 565.00MOQ: 1 Set
-
Obd2 Car Black Box DVR Camera Fit for Maserati Car With WifiUS$ 565.00 - 565.00MOQ: 1 Set
2016 NEW Car HD DVR 170 Degree Car Recorder 1080p with HD Night Vision G-sensor
Technical Specifications:
1.Name:Car DVR Car Dedicated driving recorder
2.Origin: China mainland
3.Shooting angle: 170 ° degree
4.Type: One Camera with Single-lens
5.Appearance: Mini hidden type
6.Function:Night vision strengthen
7.Resolution: 1080P
7.Memory Capacity: Standard configuration 8G (optional 16G, 32G)
Camera Specifications:

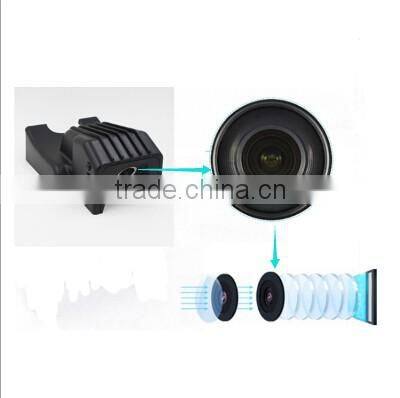

Lens technology parameters introduced
1.Sensor size: 12.80mm X 11.60mm
2.Wavelength: 400-700nm (COLOR)
3.Focal length: f = 2.8
4.F/NO: F /NO=2.8
5.After the focal length: BFL = 5.96
6.Flange length: FB = 4.15
7.visual angle (Diagonal Perspective) :170 °
8.Visual field (horizontal angle): 120 °
9.Thread Size: M12 X P0.5
10.ELEMENT: 6 ELEMENT + IR
11.Infrared filter specification: T50% = 650 ± 15nm
CPU Main technical parameters introduce:
1, high-performance 32-bit processor, clocked at up to work 432MHz, integrated high-performance DSP.
2, embedded power management module, low power consumption.
3, the maximum expandable 2GB DDR2 / DDR3 memory.
4, support for high-definition video input, maximum support 1080P.
5, high-performance image processing engine, support WDR technology, amblyopia class.
6, support for LCD / TV display output
7, support HDMI V1.3a Interface
8, H.264 / AVC encoding
Support 1080p30,720p60,480p120,Support MP4, AVI, MOV video format.
9, support the audio decoder
10, support JPEG
11,support the memory controller SD3.0, support maximum 32G memory card.
12, supports wireless Wi-Fi interface.
Button Function Description:
1.Power button: Turn on(press shortly), turn off(press long).
2.Function button:
In wifi mode:when car DVR in normal recording, Press shortly to enter emergency recording, press long will stop
recording and will change to TV mode;
in TV mode: press shortly to the start / stop recording, press long can change to wifi mode.
3.Microphone: Sound Recording function
4.LED Light: Car DVR data recorder working status indicator.
5.Reset button: Press this button will reset Car Vehicle traveling data recorder.
6.SD memory card: instore video files.
Car DVR data recorder status: LED lights show
1.Wifi mode Standby state: the green light on.
2.Wifi mode recording state: green light flashes.
3.TV mode standby state: blue light on.
4.TV mode recording state: Blue light flashes
5.SD card is not inserted or SD card error: Blue light and green light rapidly Alternate flashes.
Note:
1.When Car DVR turned on, do not pull out the SD card to avoid damaging the SD card.
2.Recommended SD Car:capacity not less than 8G,more than Class 6.
3.When starting the vehicle the Car DVR will automatically starts and enters wifi mode .
Power of working environment:
1.Working Current: 180mA
2.Standby current: 5mA
3.Working environment: Working environment
4.Operating temperature: -20 degree to 60 degree (-4 ° F to 140 ° F)
5.Storage temperature: -30 degree to 70 degree C (-22 ° F to 158 ° F)
6.Humidity/non-condensing condition: 5-95%
7.Currently testing up to working height: 3,000 meters (10,000 feet)
Language support:
English (Australia, Canada, United Kingdom, United States), Chinese (Simplified and Traditional, HongKong Traditional), French (Canada, France), German, Italian, Japanese, Korean, Spanish (Mexico, Spain), Arabic, Russian
Products Function:
1:With WIFI,can connect to mobile phone,can see driving recorder any time. Support APP iOS,Android
2.Driving record/Sound record/video record.
Car DVR sound default is:mute , you can turned on sound recording on you mobile APP.
3.Wide Angle 170 degree.
4.Gravity sensor(G-sensor)
when car G-Sensor is triggered, the recording video will be locked to be protected.
5.Early Warning System of Vehicle running track deviation
6.HD Night Vision 1080P,12 million pixels
7.Motion Detection
when car DVR is turned on, when there is a change in front of the screen, it will start recording,if nothing happened over than 15S, The car DVR is stop to recording, until the screen changes.
8.Manual mode Emergency recording
Press the manual emergency recording button, the Car DVR will start emergency recording, and the video file will be protected.
9.WDR Set
WDR wide dynamic mining can fill light to make the video visible in very dark environments
App USE Show:
Support iOS | Android
Mobile phone connect Car DVR via WiFi
WiFi:CYHY
WiFi Password:12345678

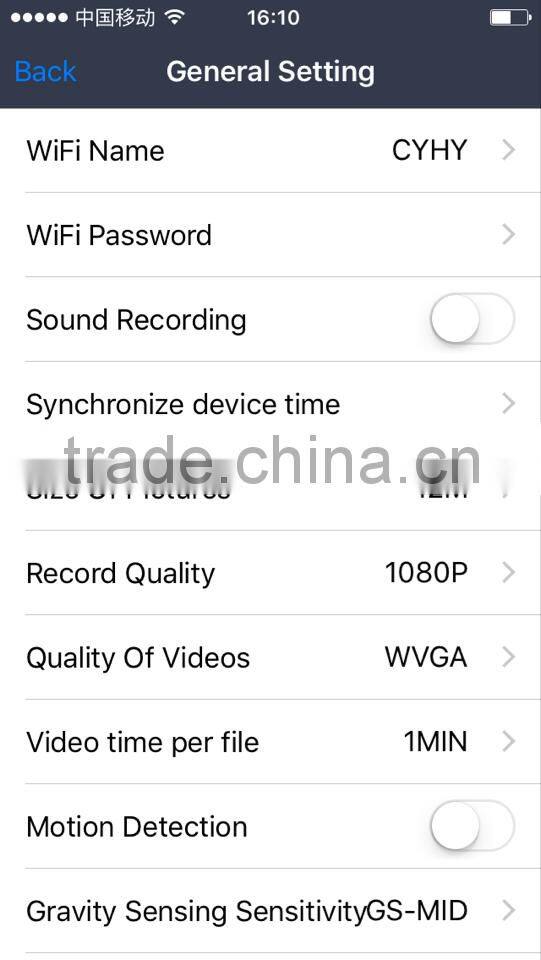

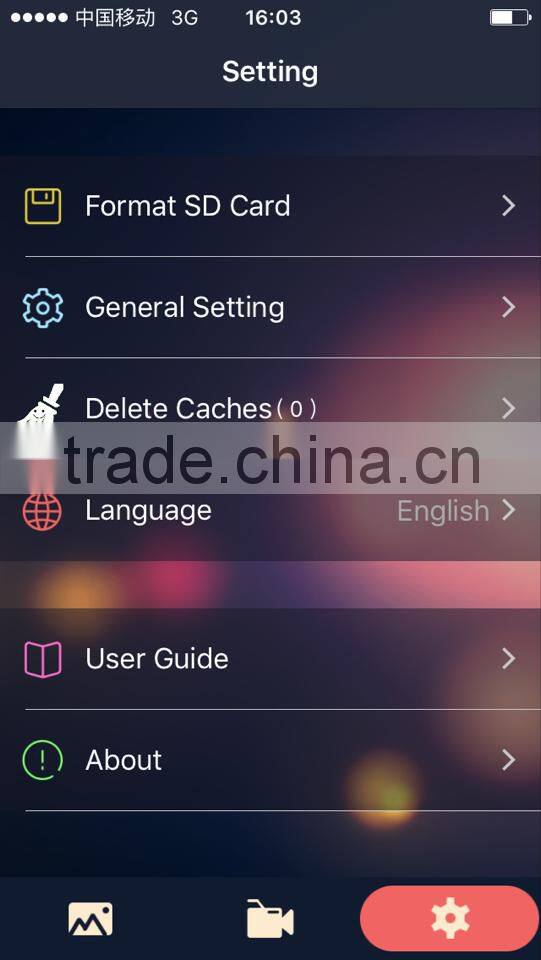

Open Car DVR application, There is three main interface options:
Car DVR List Interface, Multimedia Interface, Setting interface.
APP Picture show:
Install Manual:

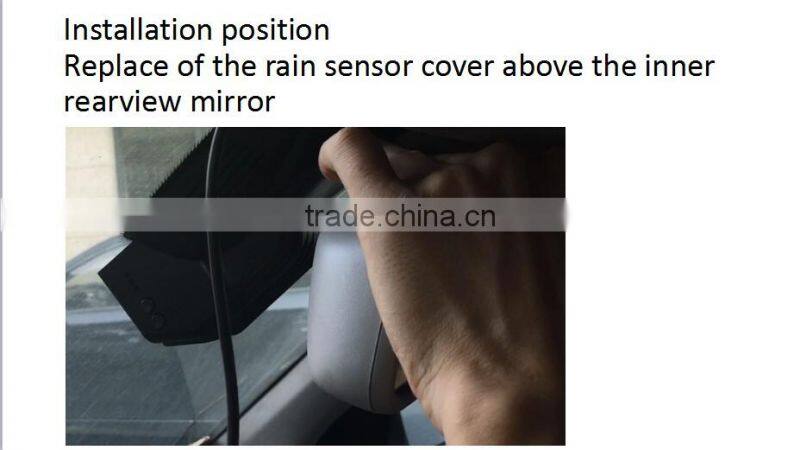

Replace of the rain sensor cover above the inner rear view mirror.
1.Remove the original car fender, install the automobile data recorder and stay out of the docking plug

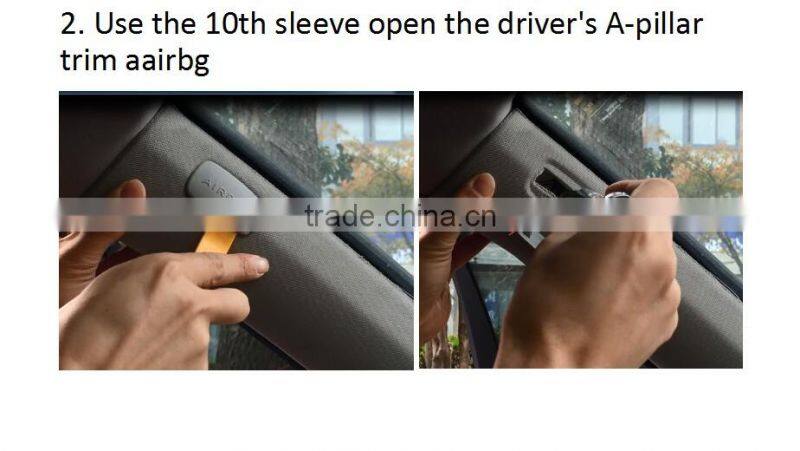

2.Use the 10th sleeve open the driver's A-pillar trim airbag.

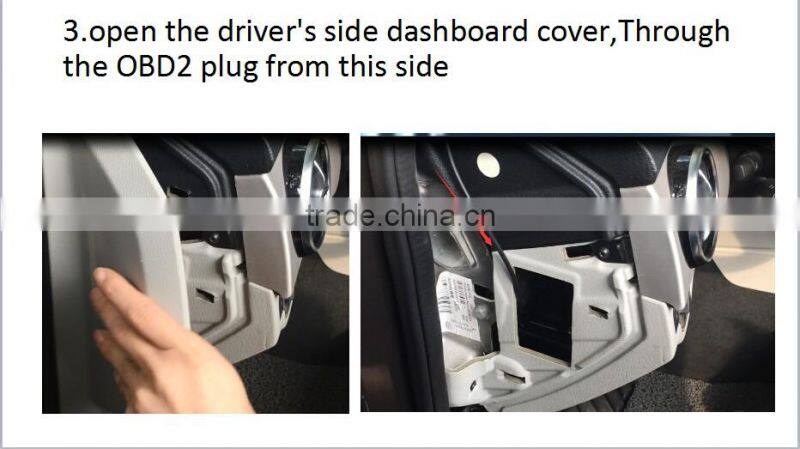

3..open the driver's side dashboard cover,Through the OBD2 plug from this side

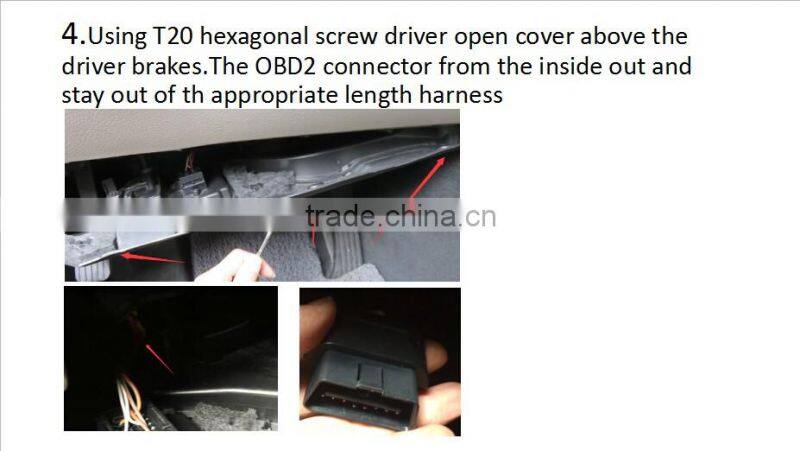

4.Using T20 hexagonal screw driver open cover above the driver brakes.The OBD2 connector from the inside out and stay out of th appropriate length harness.

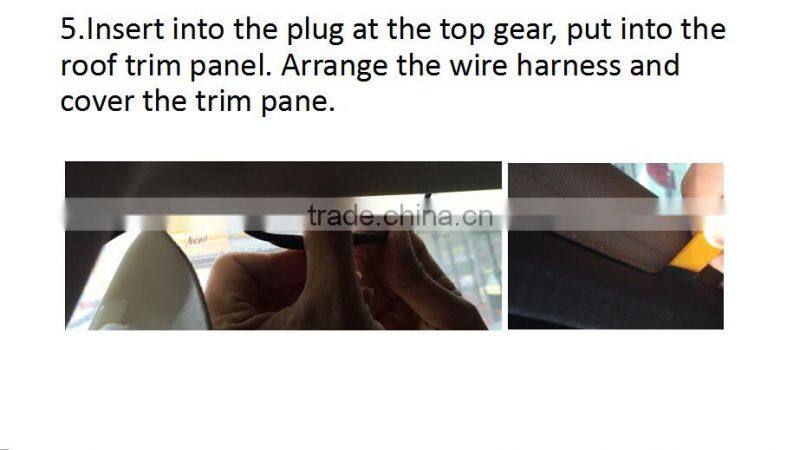

5.Insert into the plug at the top gear, put into the roof trim panel. Arrange the wire harness and cover the trim pane.
Support car list:
If your car type is not on the list,please contact us to tell us your car type,year of your car and chasis,we will check it for you.
|
Car type |
Year of car |
chasis |
specifications |
1 |
GLK |
2009-2015 |
X204-G |
high |
2 |
S |
2007-2012 |
221D |
low |
3 |
S |
2007-2012 |
221Z |
middle |
4 |
S |
2007-2012 |
221G |
high |
5 |
GL |
GL/M 2007-2012 |
164/X164/251 |
standard |
6 |
GL |
2013-2015 |
166D |
low |
7 |
C/E |
C 2008-2014 |
204-212 |
low |
8 |
GLK |
2009-2015 |
X204-D |
low |
9 |
E |
2008-2012 |
212 |
middle |
10 |
A |
2013-2015 |
176 |
low |

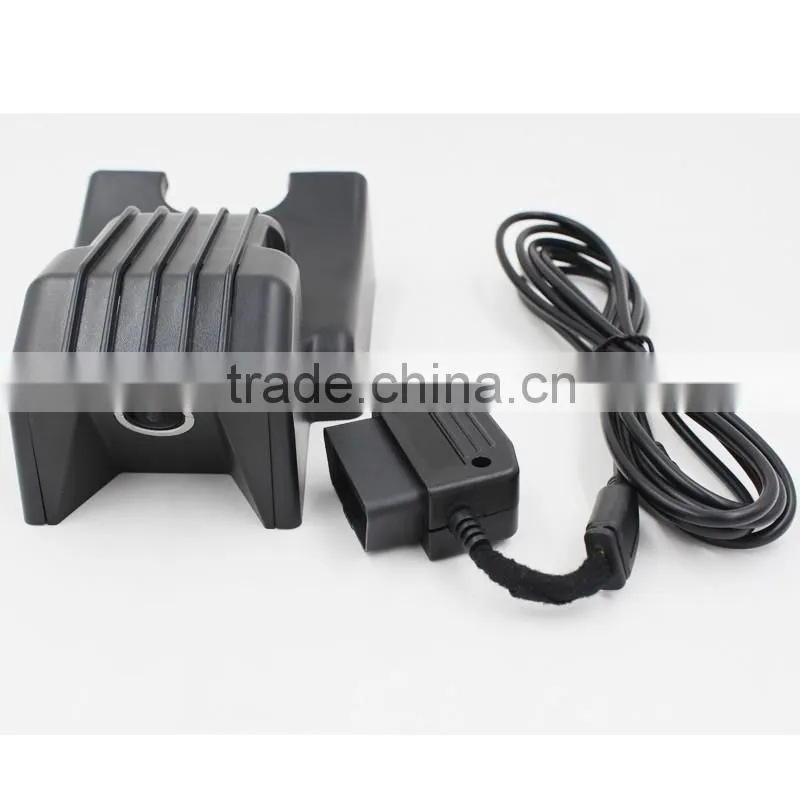

Package list:

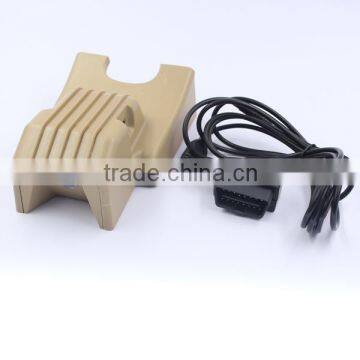

1.Car Digital Video Record Host
2.Connect cables
3.Manual
