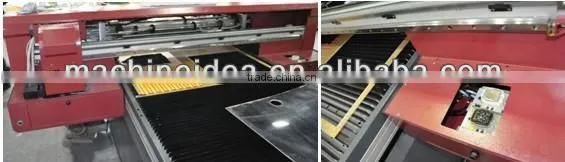

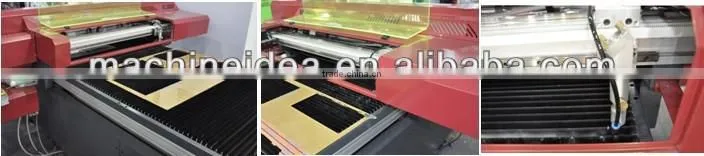

2 in 1 UV Flatbed Printer and Laser Cutter

Name: 2 in 1 UV Flatbed Printer and Laser Cutter
Brand: yinghe
SKU: 120118929

US$ 27,500 - 29,500 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Flatbed Printer

Place of Origin:

Guangdong, China

Guangzhou Yinghe Electronic Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Flatbed Printer

Place of Origin Guangdong, China

Brand Name yinghe

Model Number YH-3318

Usage Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer

Automatic Grade Automatic

Voltage 220V/110V

Gross Power 3.5kw

Dimensions(L*W*H) 3620x2120x1150mm

Weight 1000KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specification

1. One machine combines digital printing and laser cutting and engraving function with sparately control system.
2. It can print most kind of materials, laser cutting and engraving for non-metal parts.
3. It can print and then cut, and it can cut then print.

Parameter

Model				YH-3318
printing size				900*1200mm
printhead				Dual DX5 head
printhead combination				CMYK W
Max. Height of object				80mm
Print resolution				Max 2880*1440DPI
Ink supply system				2 level ink supply system
UV lamp power				120W
Software				Ultra RIP
Laser Power				80W
Laser type				10.6um hermetic CO2 glass tube, water cooling and protection system, 10.6 um
Laser control system				1-100% manuel operation and software control
Engraving speed				0-1000mm/s
Engraving depth				0-15mm
Graphic format suppoted				BMP, JEPG, DIF, TIFF, PCX, PLT, AI, TGA, DXP, etc
Assistive devices				Suction fan and exhaust device
Machine sie				3620x2120x1150mm
Power				3.5KW
