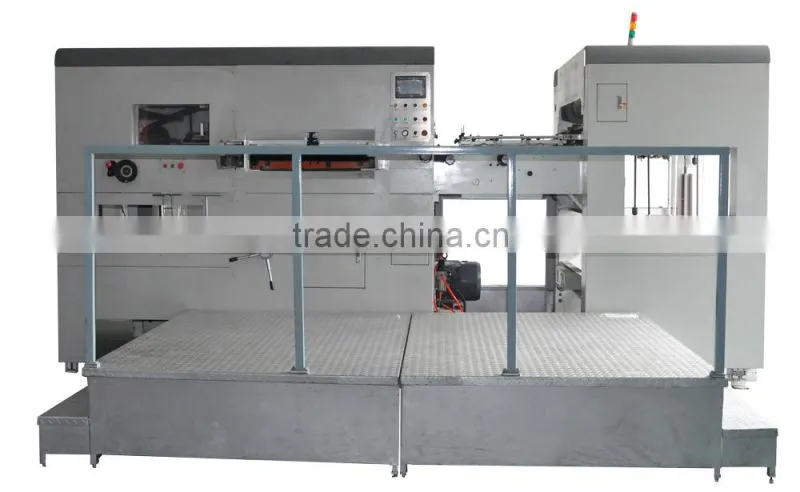

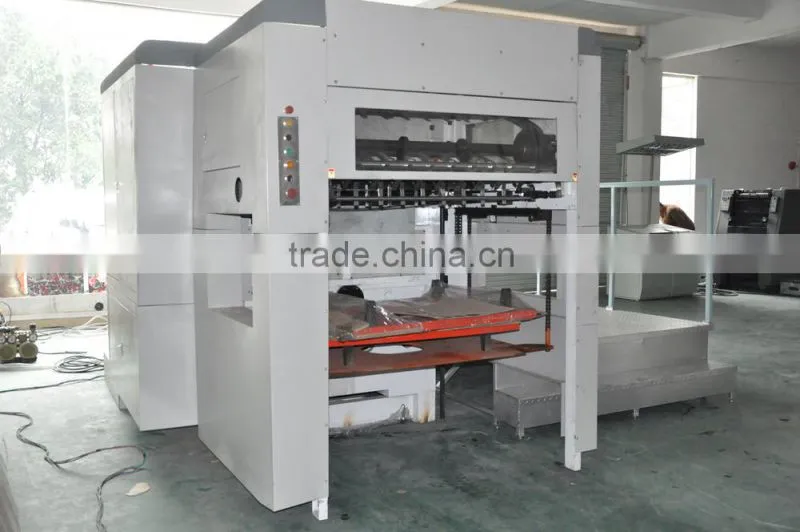

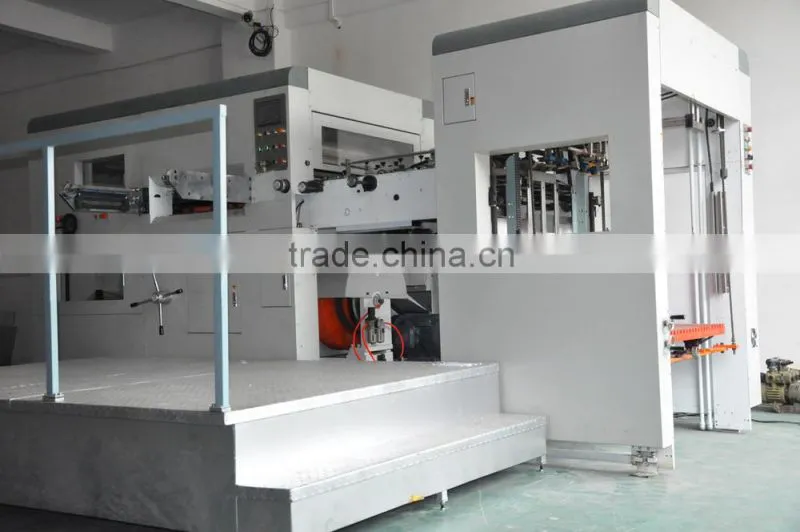

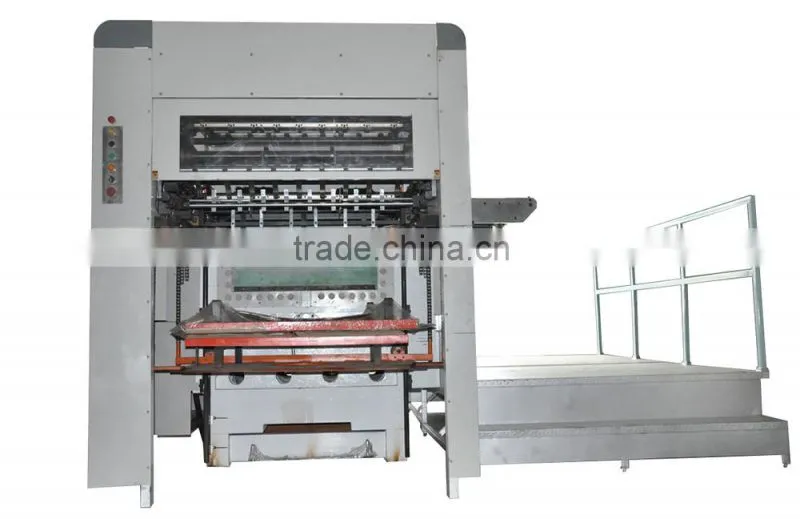

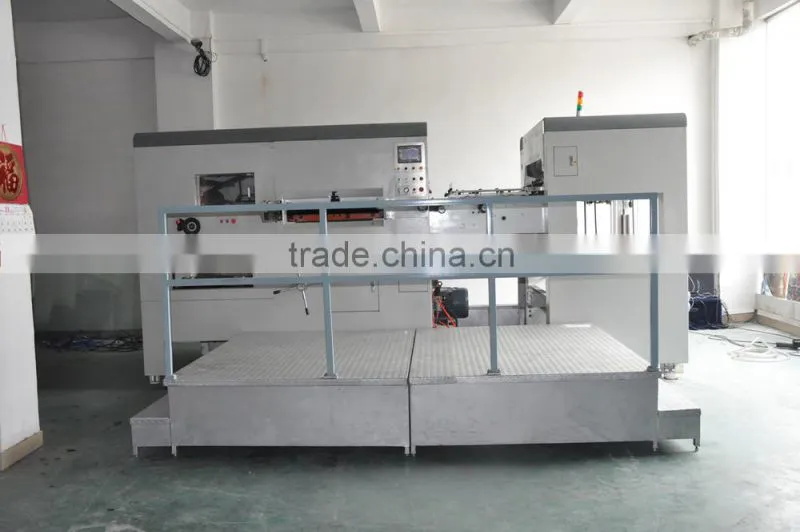

YH-1650 automatic boxes carton die cutting machine

Specifications

1.Easy to operate
2.Max paper size:1650*1200 mm
3.Drability and stable performance
4.CE certification
5warranty:one year

YH-1080 automatic boxes carton die cutting machine in Guangzhou





YH- 1650 automatic

Device introduction: fully automatic die-cutting machine is the key to the box, carton processing equipment, production speed, large throughput, high safety coefficient, not hurt. Good precision and can processing all kinds of beautiful carton packaging. The machine adopts the most advanced technology, with high stability. We chose to use the electric parts, standard parts and key parts are all international famous brand, such as: PLC, frequency converter, man-machine interface, screws, bearing and chain, crank shaft, worm gear key parts are imported. Die cutting machine is from small to big, 1650 * 1220 die cutting layout is bigger, from 1020 die cutting machine by technology improvement, better performance, technology is more advanced, more suitable for with printing machine. Guarantee the lowest selling price, to guarantee the best after-sales service.
Technical features:

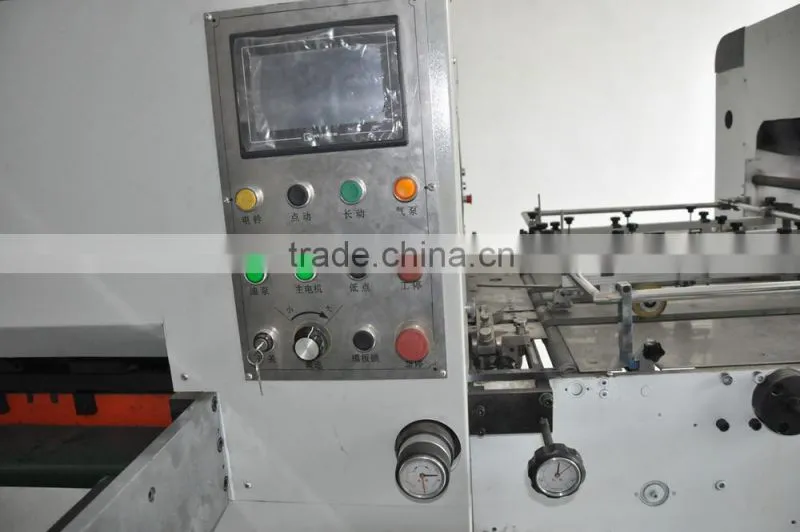

Adopt PLC programmable controller centralized control, realized to the paper, die-cutting, paper, fault display, detection, etc. The whole process of automation.
Low unique computer optimized ternary CAM intermittent mechanism, tooth row run more smoothly, to ensure that the die cutting precision.
Main motor adopts frequency converter control, stepless speed regulation, smooth operation.
Low tooth row of drive chain, the main bearing, PLC, frequency converter and various electric switch adopts imported products, excellent performance, accurate precision, long service life.
Large area of the machine is equipped with sensors and safety equipment, ensure machine work properly and security of person.

Technical parameters
Specifications/maximum die cutting (1650 * 1220 mm)
The biggest paper (1650 * 1200 mm)
The smallest die cutting (650 x 550 mm)
Die cutting thickness (mm)
Die cutting pressure (T) 300
The highest machine speed (time/when) 4500
Machine weight (T) 23
The main motor power (KW) 20





Technical parameters:
Model				YHC-1320		YHC-1500
Max.Paper size				1320×1030mm		1500×1060mm
Min.Paper size				550×500mm		550×500mm
Max.Die-cutting size				1300×1000mm		1495×1045mm
Max.Die-cutting pressure				300N/cm2
Paper Processed(corrugated paper)				8mm(max.thickness)
Paper Processed(paper board)				200~2000g/m2
Max.Die-cutting speed				4000sheets/hour
Max.Feeding Pile Height				1400mm(above the level)
Max.Delivery Pile Height				1200mm(above the level)
Total Power				13.5kw
Weight				14.5T		16T
Dimensions				4000×2250×2250mm		4200×2300×2250mm





















How to place a order:



1. After confirming order details, we will make Proforma Invoice for you.
2. After receiving 30% deposite will start test machine carefully. Ensure the excellent performance.

3. After tested the machine, will pack and send out.



4. When you received the printer, there is user manual and video to guide you install,operate and maintain.

5. When any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or Teamviewer. So you can rest assured about the after service.
6. We provide free training in our factory. When order several sets, can also send technician to your place. Help set up machine, and provide training to your staffs.





Look forward to your enquiry , be successful with us!
