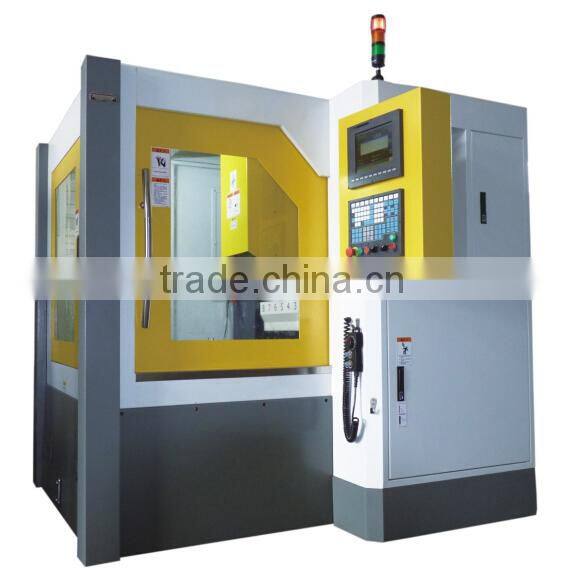

YHX-540B High-performance Engraving and Milling Machine

Name: YHX-540B High-performance Engraving and Milling Machine
Brand: Yinghe
SKU: 120109341
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Yinghe

Guangzhou Yinghe Electronic Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name Yinghe

Model Number YHX-540B

Type Horizontal

CNC or Not CNC

Voltage 380V / 220V

Power(W) 3.2kw

Dimension(L*W*H) 1600*1500*2100mm

Weight 1900kg

Certification CE

Warranty 12 month

After-sales Service Provided Engineers available to service machinery overseas

YHX-540B High-performance engraving and milling machine

Product Description

parameter index
specifications and models				YHX-540B
control system				Taiwan's new generation
XYZThree axis stroke(mm)				500400180
design dimension(mm)				500*400
The maximum loadkg				80
Machine tool positioning accuracy(mm)				0.005/300
Repositioning precision machine tools(mm)				0.003

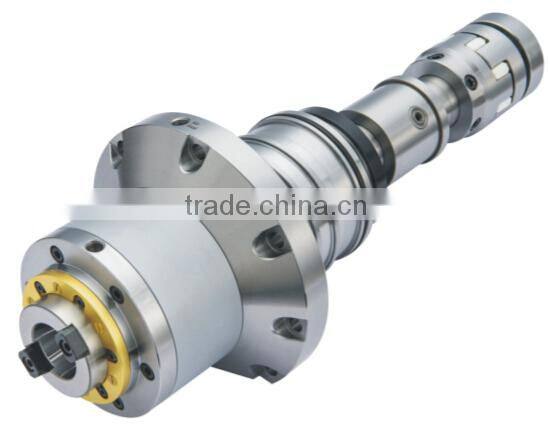

Spindle powerkw				3.2
taper hole of spindle				ER20
speed of mainshaftrpm				6000-18000 air-operated/24000
Three axis servo motor powerw				400w
Three axis movement speed quicklym/min				30
Three axis cutting speedm/min				12
The spindle cooling way				oil cooling
The largest diameter cutter mm				φ12
Machine weightkg				1900
Machine size mm				160015002100

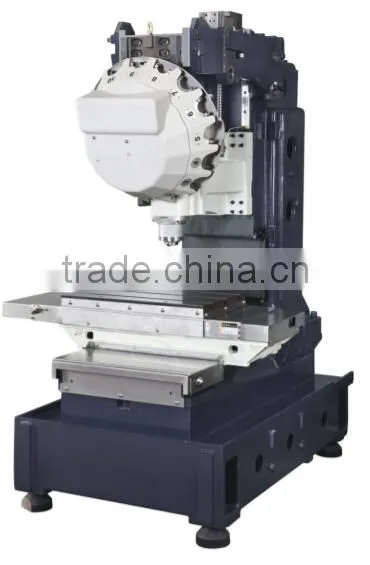

Extension model

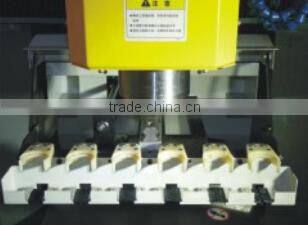

Equipment models:YHX-540BZ Characters:Straight line knife library

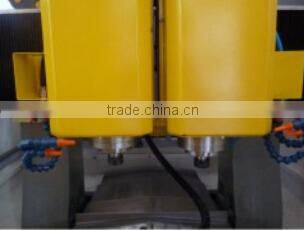

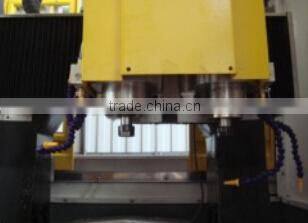

Equipment models:YHX-540B-SH Characters:Double machine
Equipment models:YHX-540B-H Characters:Pillar heightening
Equipment models:YHX-540B-M Characters:Copper mould structure ( Servo motor to increase)

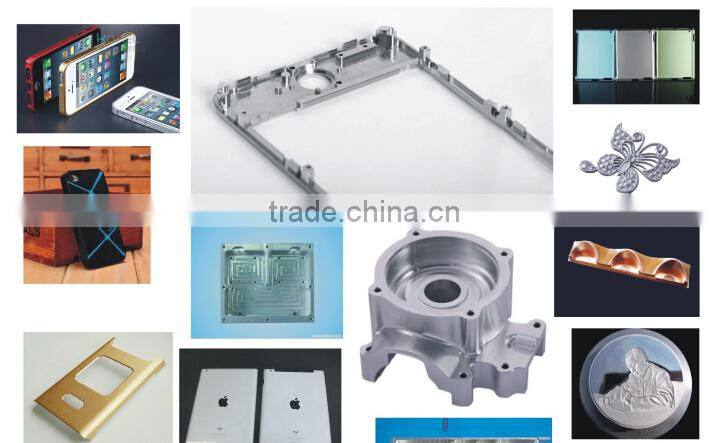

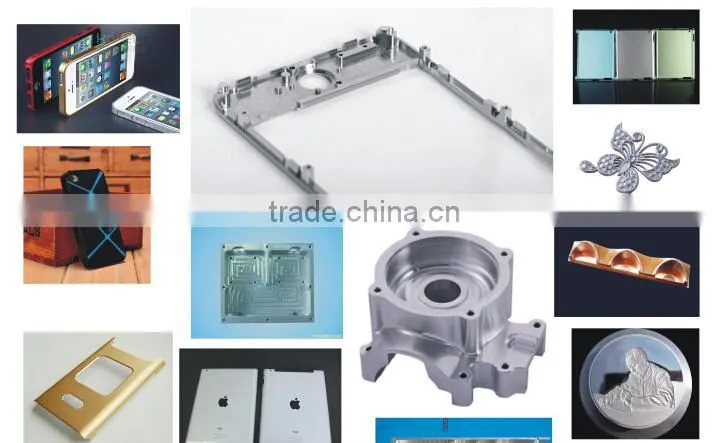

Characteristics and applications

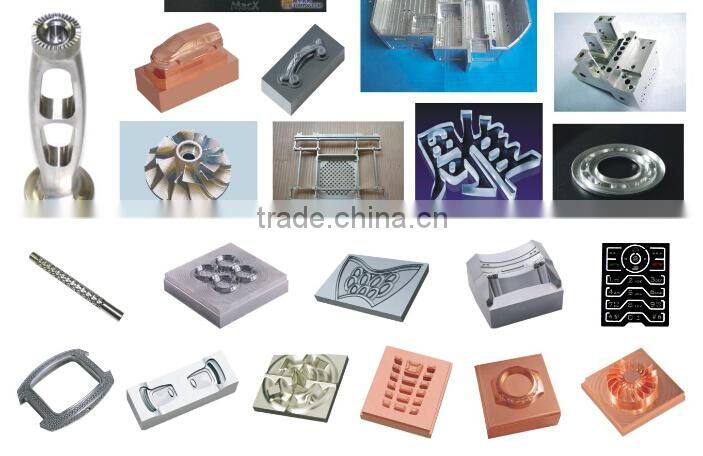

Designed for smalland medium parts, small and medium mould mould design
Rapid processing knife library machine especially for 3c small and medium sized parts
Graphite machine with circulating water, protection, filter designed
