Product Details
Condition: | New | Place of Origin: | Hebei, China | Rated Power: | 380V, 50HZ |
Weight: | 6500KGS | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

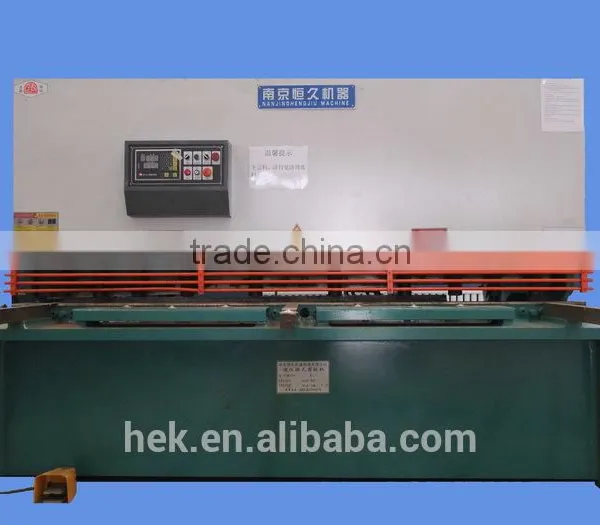

Hydraulic Plate Shearing Machine
Hydraulic plate shearing machine.
Max. thickness: 6mm;
Max. width: 3200mm.
plate shears, plate shearing machine,
1) The machine employs hydraulically-driven swing beam, the steel plate welded structure,
and accumulator -based pullback cylinder with steady and reliable operation.
2) Indicator-based adjustment of gap of blade is convenient and fast. 3) The machine is equipped with lighting alignment device, and uses stepless control
for the stroke of up tool carrier.
4) The machine uses protection fence for safe operation. 5) Digital display device for size of back gauge and shearing times available.
BRIEF INTRODUCTION:
1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.
2.Intergrated hydraulic transmission system,with good reliability.
3.Triple support rolling guide raikl to eliminate gaps of support and enhance shearing quality.
4.Mechanical rear stopper with manual fine tuning,and digital indication.
5.Clearance in between shearing blades adjusted by motor to be quickly.accurate and convenient.
6.Rectangular blades with four cutting edges to prolon working life,adjustable shearing angle to reduce deformation of the sheet.
7.Upper blade holder has inward tilting struction to facilitate material feed in and also enhance of the work piecision.
SPECIFICATION:
Parameter
Specification | Shearing Thickness | Shearing Width | Number of Stroke | Backgauge Rang | Shearing Angle | Throat Height | Motor Power |
mm | mm | min | mm | ° | mm | kw | |
QC11-6×2500 | 6 | 2500 | 10-35 | 20-600 | 0.5°-2.5° | 800 | 7.5 |
QC11-6×3200 | 6 | 3200 | 8-35 | 20-600 | 0.5°-2.5° | 800 | 7.5 |
QC11-6×4000 | 6 | 4000 | 7-35 | 20-600 | 0.5°-2.5° | 800 | 7.5 |
QC11-6×5000 | 6 | 5000 | 6-25 | 20-600 | 0.5°-2.5° | 900 | 11 |
QC11-6×6000 | 6 | 6000 | 5-25 | 20-600 | 0.5°-2.5° | 1000 | 11 |
QC11-8×2500 | 8 | 2500 | 10-35 | 20-600 | 0.5°-2.5° | 800 | 11 |
QC11-8×3200 | 8 | 3200 | 8-35 | 20-600 | 0.5°-2.5° | 850 | 11 |
QC11-8×4000 | 8 | 4000 | 7-35 | 20-600 | 0.5°-2.5° | 900 | 11 |
QC11-8×5000 | 8 | 5000 | 6-25 | 20-600 | 0.5°-2° | 1000 | 15 |
QC11-8×6000 | 8 | 6000 | 5-25 | 20-600 | 0.5°-2° | 1050 | 15 |
QC11-12×2500 | 12 | 2500 | 10-35 | 20-800 | 0.5°-2.5° | 840 | 18.5 |
QC11-12×3200 | 12 | 3200 | 6-20 | 20-800 | 0.5°-2.5° | 900 | 18.5 |
QC11-12×4000 | 12 | 4000 | 6-20 | 20-800 | 0.5°-2.5° | 940 | 18.5 |
QC11-12×5000 | 12 | 5000 | 5-15 | 20-800 | 0.5°-2.5° | 1000 | 18.5 |
QC11-12×6000 | 12 | 6000 | 6-15 | 20-800 | 0.5°-2.5° | 1060 | 30 |
QC11-16×2500 | 16 | 2500 | 8-30 | 20-800 | 0.5°-3° | 840 | 22 |
QC11-16×3200 | 16 | 3200 | 7-30 | 20-800 | 0.5°-3° | 900 | 30 |
QC11-16×4000 | 16 | 4000 | 6-30 | 20-800 | 0.5°-3° | 940 | 30 |
QC11-16×5000 | 16 | 5000 | 6-15 | 20-800 | 0.5°-2.5° | 1000 | 30 |
QC11-16×6000 | 16 | 6000 | 5-15 | 20-800 | 0.5°-2.5° | 1100 | 37 |
More specification you need please contact with me. We can supply the shearing machine :
Cutting thickness :4mm Min - 40mm Max
Cutting length : 1.5m Min - 8 m Max
1.Seller can arrange people go abroad for installation and test .The cost at home is paid by seller ,but cost a broad include the round-trip ticket should be paid by buyer
2.Seller offers the operation manual (English).
3.Seller offers one set of wearing parts and one set tools for installation and maintenance .
4.Length of warranty : one year as from the date of acceptance.
one year as from the date of installation and acceptance. Within the 1 year ,if the accessory is demaged exce pt the human factor of your parts, we will express a new related accessory (free) and instruct you how to repair. exceed 1 year.,if the accessory is demaged we can express a new related accessory (changed) and instruct you how to repair
5.Buyer can arrange people here to examine and verify the machine, buyer also can send people here to learn how to use the machine (it’s free of charge to learn ).
1.Seller can arrange people go abroad for installation and test .The cost at home is paid by seller ,but cost a broad include the round-trip ticket should be paid by buyer
2.Seller offers the operation manual (English).
3.Seller offers one set of wearing parts and one set tools for installation and maintenance .
4.Length of warranty : one year as from the date of acceptance.
one year as from the date of installation and acceptance. Within the 1 year ,if the accessory is demaged exce pt the human factor of your parts, we will express a new related accessory (free) and instruct you how to repair. exceed 1 year.,if the accessory is demaged we can express a new related accessory (changed) and instruct you how to repair
5.Buyer can arrange people here to examine and verify the machine, buyer also can send people here to learn how to use the machine (it’s free of charge to learn ).
