400watt on Grid Solar Inverter 400w Solar pv Inverter Price

400watt on Grid Solar Inverter 400w Solar pv Inverter Price thumbnail-1
400watt on Grid Solar Inverter 400w Solar pv Inverter Price photo-1
US$ 40 - 70 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
PG-400w
Contact Supplier Request Quote Chat Now
Fuan Kaiyue Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name OEM
Model Number PG-400w
Output Power Other, 400W
Output Type Single
Size 21 x 16.5 x 5.3CM
Weight 1.3kg
Input Voltage 10.8-28V/22-60V
Output Voltage 120V/230V
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current By load
Product Description

400watt on grid solar inverter 400w solar pv inverter price

400watt on grid solar inverter 400w solar pv inverter price

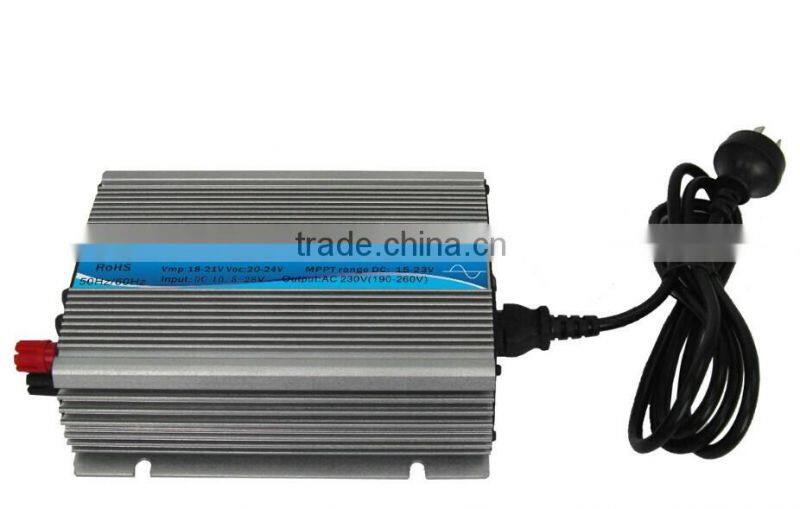

Detail photo

400watt on grid solar inverter 400w solar pv inverter price



Product Description:

1.Fast delivery

2.Strong package

3.2 Years warranty

4.Efficient service

5.Small order accepted

6.Factory directly sale



Products Features:

·Smart size, light body, safe & environment-friendly.

·100% real Continuous Power output.

·Input & output isolation

·Multiple protection circuit for Low voltage / Over voltage / Overload / Short-circuit / Overheat etc

·USB output port: 1A



Specification:



Rated Power

200W

300W

400W

500W

600W

800W

1000W

Solar Panels

≥200W

≥300W

≥400W

≥500W

≥600W

≥800W

≥1000W

DC MAX Input

240W

360W

480W

600W

720W

960W

1200W

DC Input Range

10.8-28V/22-60V

MPPT Voltage

15-23VDC/24-48VDC

DC MAX. Current

15A

20A

25A

30A

35A

45A

60A

AC MAX. Output

230W

330W

430W

550W

630W

830W

1100W

AC Output Range

Version: 120VAC(90-140VAC); Version: 230VAC(190-260VAC)

Frequency Range

50Hz/60Hz(Auto control)

Power Factor

>97.5%

THD

<5%

Phase Shift

<2%

Efficiency

120VAC(90-140VAC)

Peak Efficiency

90%

90%

88%

87%

85%

83%

81%

Stable Efficiency

88%

87%

86%

84%

84%

81%

79%

Efficiency

230VAC(190-260VAC)

Peak Efficiency

91%

90%

88%

87%

85%

85%

82%

Stable Efficiency

89%

88%

87%

85%

85%

83%

80%

Protection

Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection

Working Temperature

-25℃-80℃

Working Humidity

0%~90%RH non-condensing

Waterproof

Indoor design

Show

Luminous Diode(LED)

Cooling

Fan

Stand-by Power

<1.5W

EMC

EN61000-6-3:2007 EN61000-6-1:2007

Grid Disturbance

EN 50178+EN 62109-1+VDE0126-1-12

Grid Detection

DIN VDE 1026 UL1741

Certificate

CE

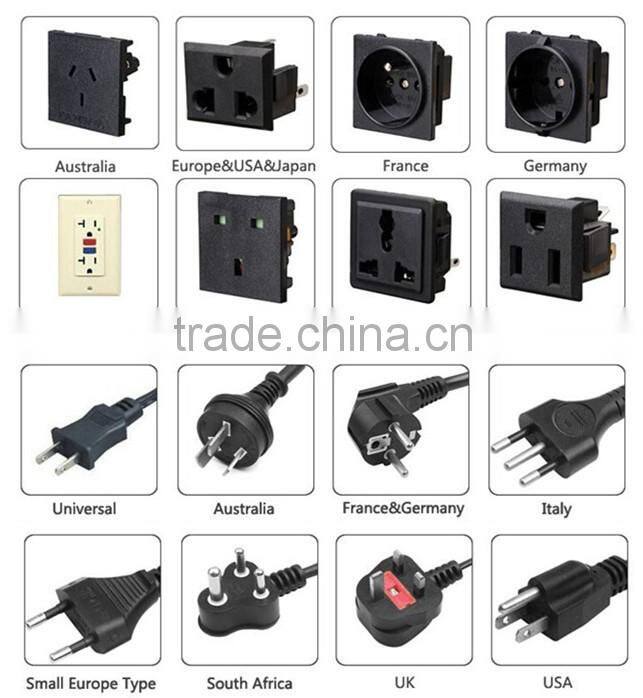

We accept customerized outlet socket as follows:
400watt on grid solar inverter 400w solar pv inverter price



Packaging & Shipping

Packaging

400watt on grid solar inverter 400w solar pv inverter price

Shipment Term

400watt on grid solar inverter 400w solar pv inverter price



Our Services



If you can cooperate with us, we will be honored and you will benefit from:

- The good construction  warranty-2 years

- Your client satisfied on the right schedule and quality

- You can get a good reputation from your market and obtain more orders

- Our professional service before and after sale

- The reasonable price

- Any question from you are welcome and will be replied in 24 hours

Company Information

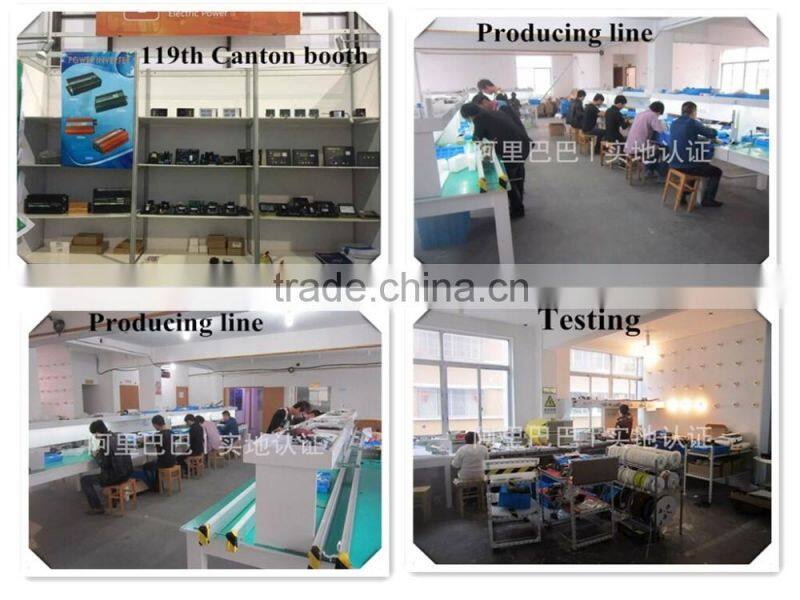

 Our Factory

400watt on grid solar inverter 400w solar pv inverter price

FAQ

1.Q:How do I choose the size of the inverter?
    A:Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
        Notice: resistive load: you can choose the same power as the load.
        Capacitive loads: according to the load, you can choose 2-5 times power.
        Inductive loads: according to the load, you can choose 4-7 times power.

2.Q:How to calculate the load of working hours requires configuration of the battery size?
   A:We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss, so this is only a reference value:
       Work hours = battery capacity * battery voltage *0.8/load power (H= AH*V*0.8/W)

3.Q:What should be noticed when installing inverter?
   A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.



Relative Products

400watt on grid solar inverter 400w solar pv inverter price 400watt on grid solar inverter 400w solar pv inverter price 400watt on grid solar inverter 400w solar pv inverter price 400watt on grid solar inverter 400w solar pv inverter price
Grid tie solar inverter 500w Grid tie solar inverter 600w Grid tie solar inverter 1000w Waterproof Grid tie solar inverter 250w





Note:

If you have any question or need, pls feel free to conatct me at anytime! And I will try my best to assist you!
