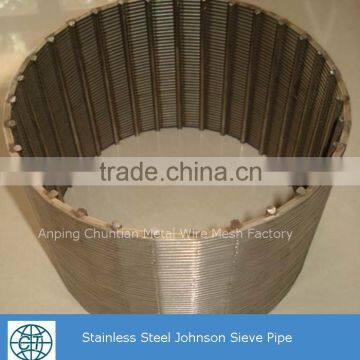

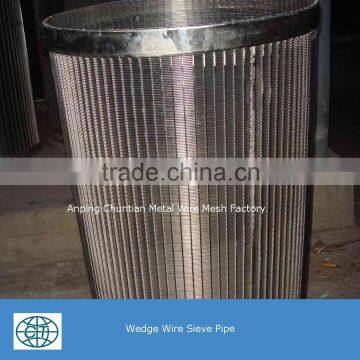

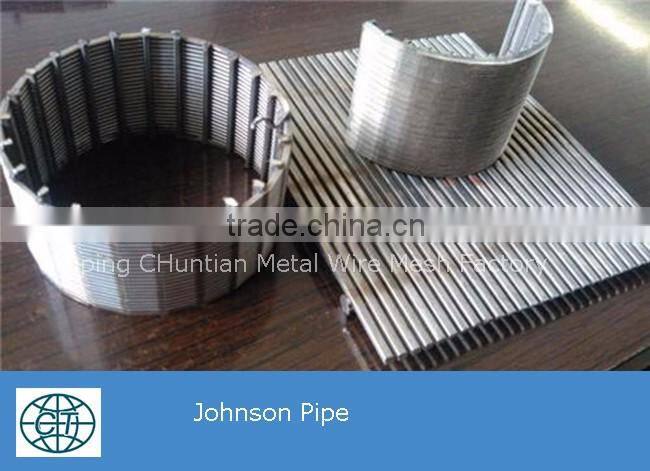

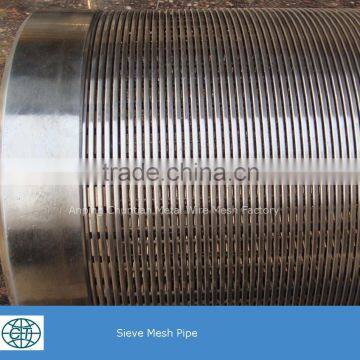

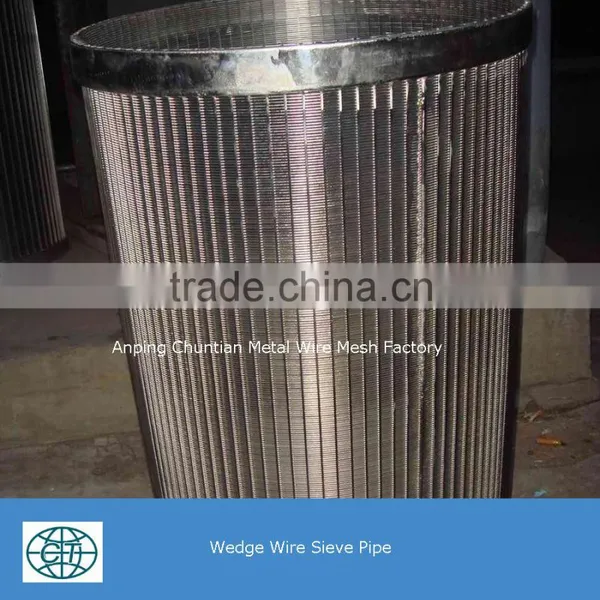

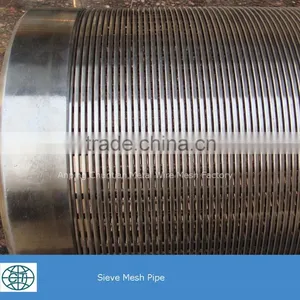

Johnson Pipe
Material: Low carbon wire, low carbon galvanized steel wire, high manganese steel ,Stainless Steel Wire SS304,ss316,ss316L
Produce Technique

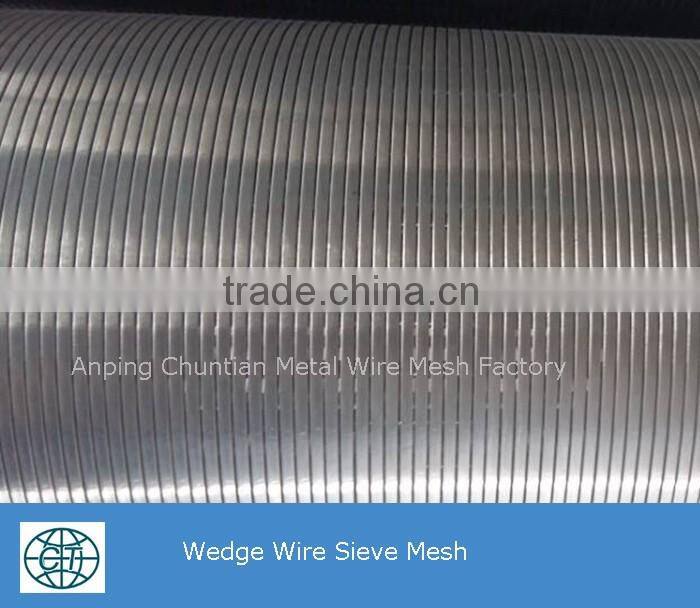

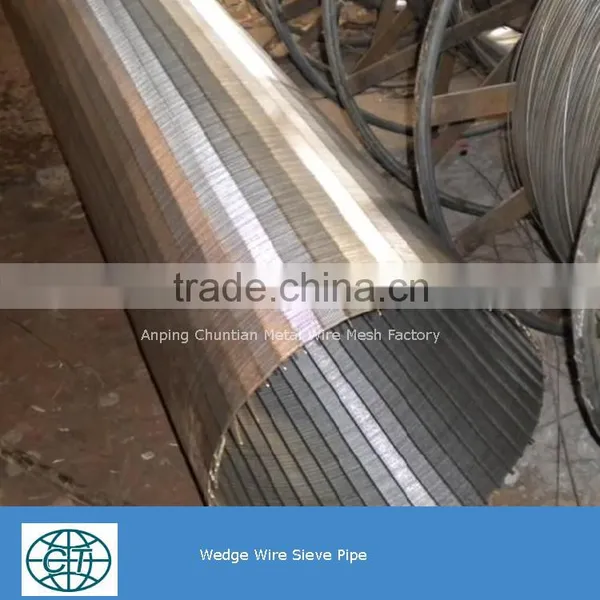

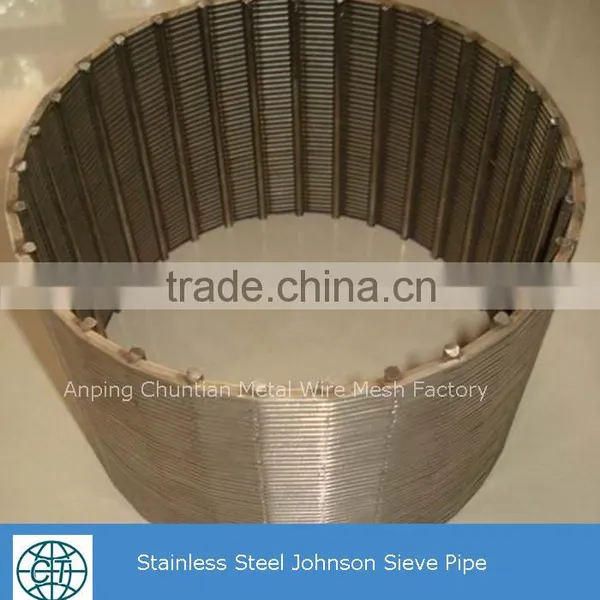

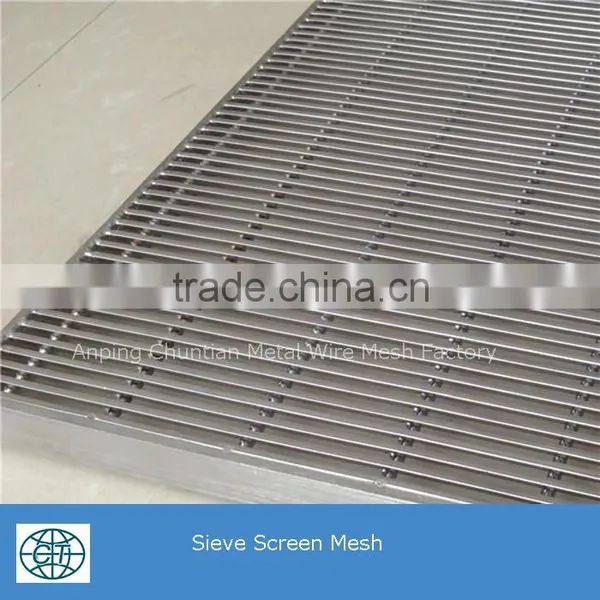

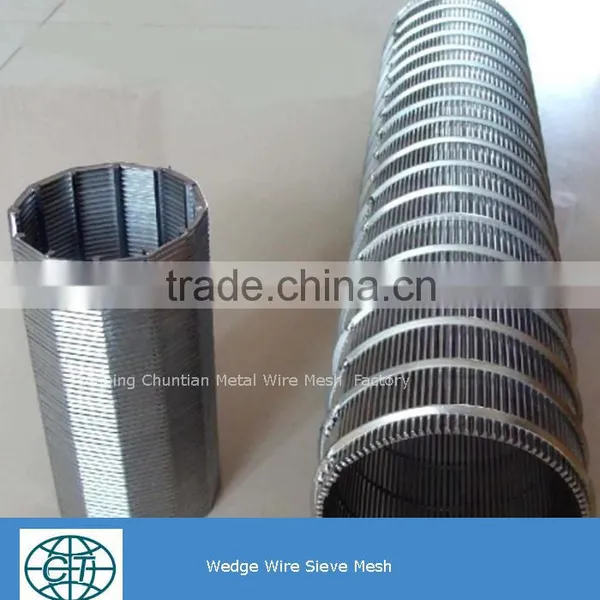

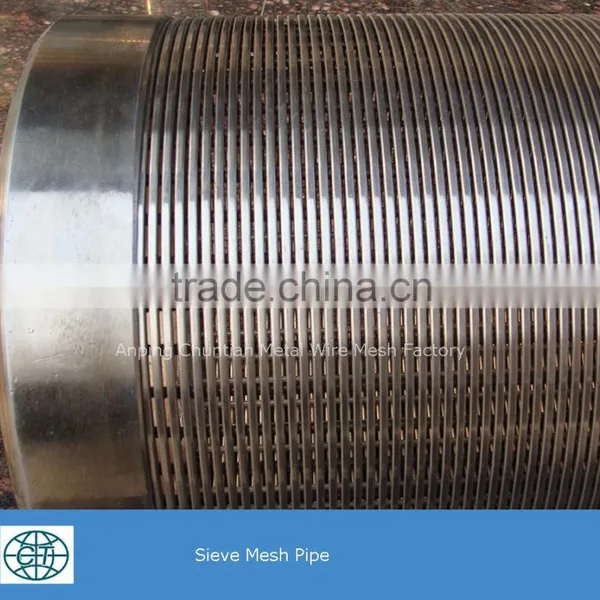

Johnson screen is manufactured by a "V" or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wires is fusion welded. The "V" or wedge shaped profile wire wraps around support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
Specification (Profile wire):
Width (mm): 1.50 1.80 2.30 2.50 1.80 3.00 3.70 3.30
Height (mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width (mm): 2.30 2.70 3.00 3.70 3.30
Height (mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 5.0mm
Note: other wires and rods available upon request
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also accept request.
Open area up to 60%.
Advantages:
Continuous slot: opening significantly increases the available open area, providing greater access to the water-bearing zone.
Non-clogging: "V" shaped or wedge shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and don't wedge in the screen's inwardly enlarging slot.
Large open area: this allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.
1.15years manufacturing and exporting experience
2. Professional International Sales Executive, reply inquiry in time
3. Quality inspection department, ensure offer qualified products
4. Delivery time on time
5. After-sales service department
