notebook combo-debug-card (3 in 1)
- 10000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ---- | Model Number: | 3 in 1 |
Product Description

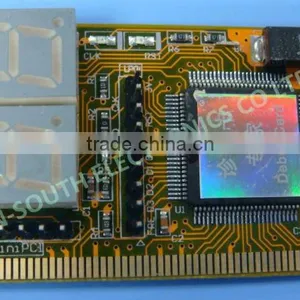

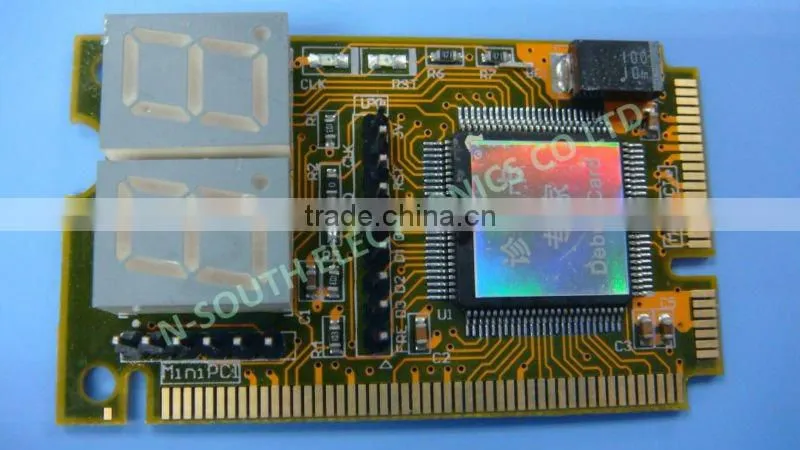

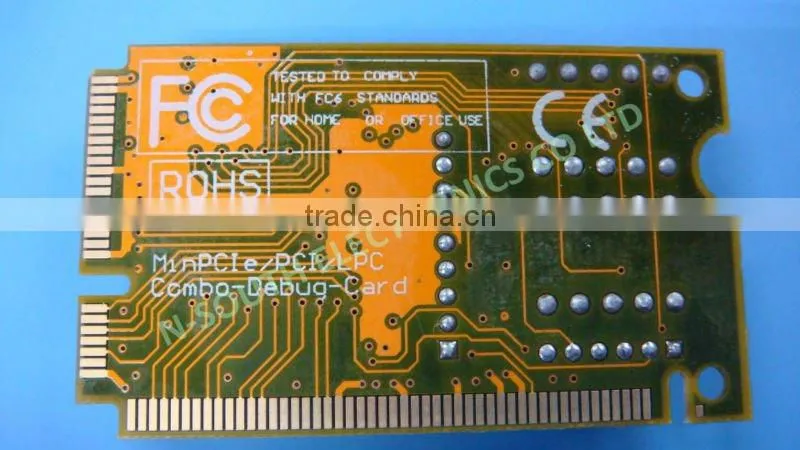

notebook test card (3 in 1)
1) Support MiniPCIe
2) Support MiniPCI
3) Support LPC
4) Support ELPC (Dedicated for ASUS Notebook)
5) Support I2C (Dedicated for IBM/Lenovo Notebook),Can be connected to notebook battery interface via cable.
1. the system main components
A. diagnosis MiniPCIe card interface
B. MiniPCI diagnostic card interface
C. card LPC Interface
D. ELPC diagnostic card interface
E.diagnostic card I2C interface (notebook battery interface)
F. diagnostic card display interface: two seven-segment digital tube and two signal LEDs
G. dedicated main chip card: diagnostic card for the processing of signals
H. diagnostic test interface card: only for factory testing, users do not use it.
2.Card Mini PCI-e interface
Mini PCI-E laptop boards are increasingly being used by the new interface. Compared with Mini PCI interface, Mini PCI-e interface takes up less space. The card using Mini PCI-E interfaces of the following pins: PIN-8, PIN-10, PIN-12, PIN-14, PIN-16, PIN-17, PIN-19. At present, because not all the notebook manufacturers support this PIN definition standard, so not all motherboards support this interface. Tested, the latest Lenovo, HP, Fujitsu, Toshiba, Shenzhou, Acer and Inventec, Quanta motherboards to support the interface. For motherboards do not support this interface, the interface will not work correctly. Here are some users test results, only as a reference.
For HP v6000 series, including ct6 other models; v9000 series, at8, at9 and other models
For Lenovo: cw3 cw4, le4, le5 and other models
For Divine: 310,320 other models
The Unisplendour: symphony6.0 7.0 other models
For Acer: most of the models
For Fujitsu: protland10 other models
British industry: For Toshiba and For HP models
Quanta most of the OEM models
Other. . .
