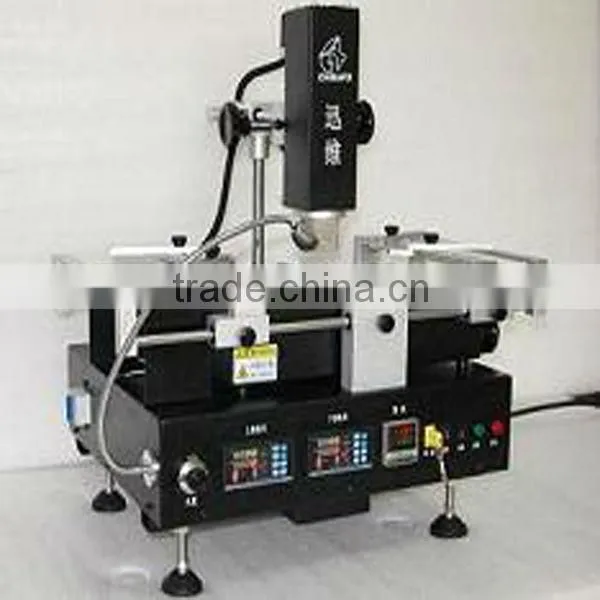

CF-260 BGA rework soldering station/hot air bga rework station
Above the heating power: 600W;
Under heating power: second temperature zones 800W,third temperature zone 2400W;
Power supply: AC220V ± 10% 50/60Hz;
Dimensions: 650mm (L) X 510mm (W) X 700mm (H);
Location: PCB X, Y support can be arbitrary direction adjustment, V shaped slot, alligator clip, V hook;
Temperature control: K thermocouple ( K Sensor ); closed-loop control, independent temperature control, precision is up to±1 degrees;
PCB size: Max 420mm * 400mm, Min 80mm * 80mm;
Application Chip size: 2 × 2mm-46 ×46mm;
Wind mouth size: 28mm * 28mm 35mm * 35mm 38mm * 38mm 43mm * 43mm 46mm * 46mm
Lee mouth size: 34mm x 34mm
Machine net weight: 42 Kgs
Details
1. It is with three independent temperature zones, top is dark infrared, lower is hot air heater and bottom is large infrared pre-heater. It can be easily used in leaded and lead free rework.
2. It is with infrared ceramic preheating system which can bake damp PCB board and chips independently and its preheating area can be adjusted according to PCB.
3.High-power cross-flow cooling system to accelerate the preheating zone cooling, to ensure the success rate of continuous desoldering.
4.Bottom hot air nozzles follow the high-tech rework station’s mature design.
5.Using high-tech temperature control program.
6.Preheating control is with optimized design to ensure the preheating temperature won’t overheat.
7.Dual LED light design, more convenient to observe the reworking process.
1.Packing: indivually packed , standard export package
2.Delivery Detail: Within 3-5 workdays delivery after confirming the payment.
3.Shipping & order :
1. Any Inquires will be replied within 24 hours.
2.Professional manufacturer,two version to show how to operate.Welcome to visit our website.
3. All of our products 100% inspection before shipment, we guarantee to use our products safety.
4. We own the best after-sale service. If there any problems happen, our team will do our best to solve for customers.
5. Faster delivery, 3-5 days after we receive the payment.
