Specifications
concrete road cutter1.water tank: plastic inner shell and iron tank outside
2.Honda engine
3.Four-axis structure, anti-meand

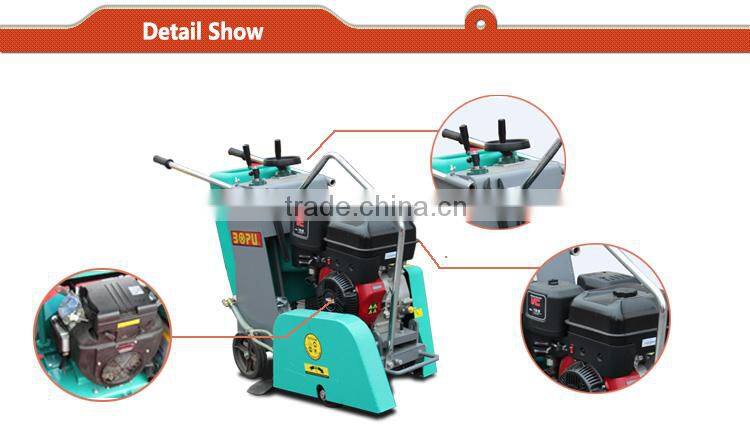

Honda generator concrete cutter JNLS-1500 gasoline concrete road cutter
Road cutting machine is designed successfully for the first time in China and of high performance price ratio, has a precedent in the round road cutter, which widely used for cutting groove ,extension slot and expansion slot of concrete and asphalt road surface on road. Municipal administration, telecommunication, heating power pipeline.
Features:
1.Straight-line and parabolic can be finished by one road cutting machine.
2.Super-rigid box frame ensures straight cuts while resisting warping and vibration prolongs saw life, extends blade life.
3. Designed, height adjustable handles with comfortable grips.
4. Crank for raising/lowering cutting depth.
5. Hinged front, lift-up blade guard is designed to provide easy blade replacement.
6. Large Water tank provides an optimum flow and volume of water to the blade.
7. Control as standard part.
Details:
Model | Ls-1200 | Ls-1500 | |
Cutting performance | Parabolic cutting | 18 inch | 18 inch |
1200*15cm(depth) | 1580*25cm(depth) | ||
Straight-line cutting | 12cm depth(use 16 inch blade) | ||
Inner diameter of blade | 27mm | 27mm | |
Blade speed | 2400rpm | 3100-3800rpm | |
Blade cooling types | Water injection | Water injection | |
Depth adjustment | Handle rotation | Handle rotation | |
Driving method | Manual rush | Manual rush | |
Water Tank capacity(L) | 20L | 20L | |
Weight | 130kg | 300kg | |
Engine model | Honda390 | Briggs & Stratton | |
Type | Single cylinder. Four stroke | Double cylinder. Four stroke | |
Output | 6.4ps(4.7kw)/3600rpm | 22ps(16.2kw)/3600rpm | |
Fuel | Unleaded gasoline | Unleaded gasoline | |
Fuel tank capacity(L) | 6L | 16.6L | |
Start mode | Recoil start | Recoil start | |
Fuel consumption | 230g/hp, 310kw-hr | 230g/hp, 310kw-hr | |
Max cutting depth(mm) | 150mm | 250mm | |
Road cutting machine will be packed by wooden case with Hob fixed to protect machine without rain and moist.
