Product Details
Condition: | New | Type: | Other, Straightener & Cutter | Use: | Other, straightening and cutting |
Place of Origin: | Henan, China | Brand Name: | Joonna | Model Number: | GT4-12B |
Voltage: | 380V | Power(W): | 9 | Dimension(L*W*H): | 2600*1000*1200mm |
Weight: | 580Kg | Certification: | SGS,CE,TUV,BV | Warranty: | 12 months, 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specialities:

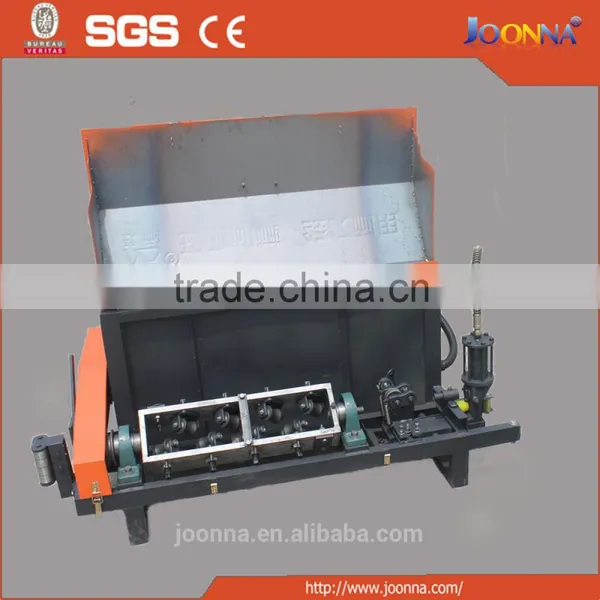

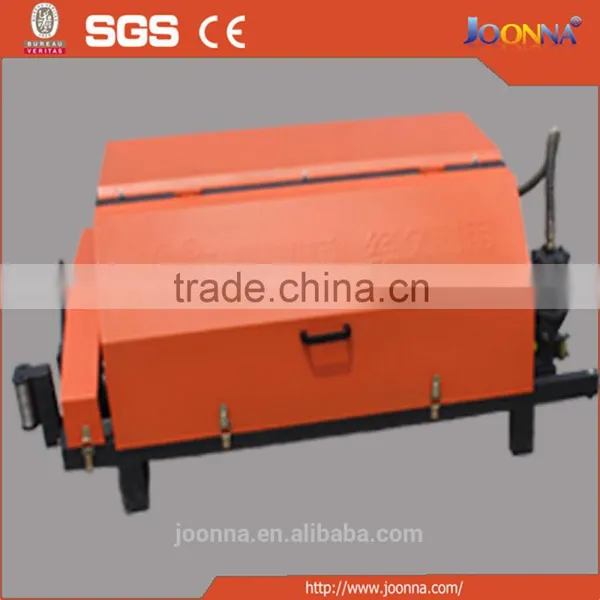

1,CNC Steel wire Straightening & Cutting machine /Automatic Straightening & Cutting machines/ wire straightener and cutter

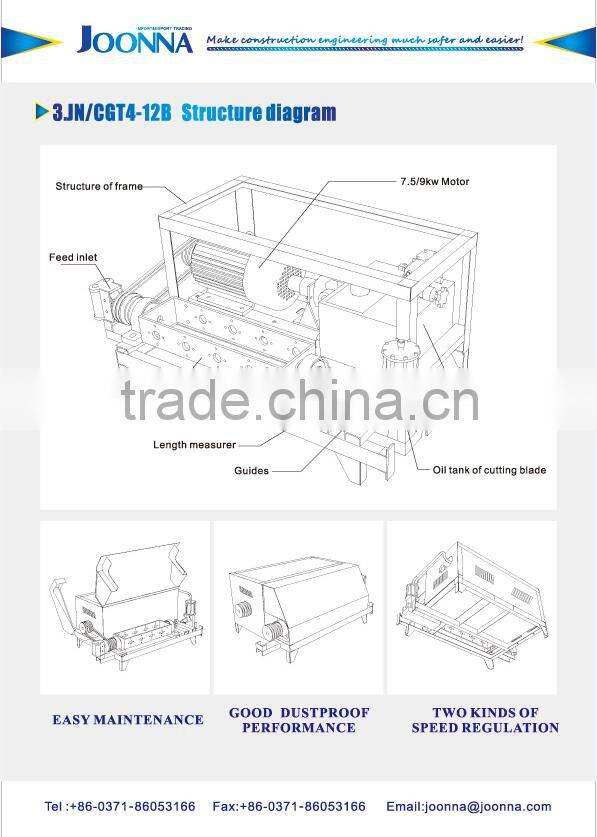

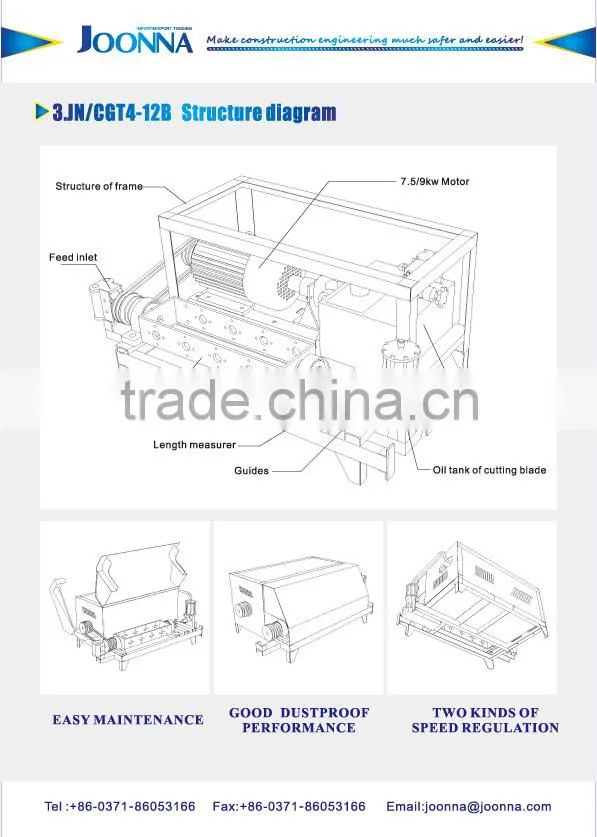

2,HIGH efficiency, hydraulic system, advanced technological standard, good dustproof performance, two kinds of speed regulation
3.reliable SGS,CE,TUV,BV
CNC Steel wire Straightening & Cutting machine /Automatic Straightening & Cutting machines/ wire straightener and cutter features:
1. Use the international advanced rotary straightening structure, combined with domestic usage.All the spare parts adopt imported machining center, to guarantee the machining size, to ensure the quality of the whole machine
2. All hydraulic components are imported from Taiwan, to overcome bad work environment and ensure that the hydraulic system can long-term operate stably
3. Configure special oil pump with domestic well-known brand "the Yellow River cyclone" motor with high pressure, large flow as the power, make sure cut off power stronger and faster
4. All the electrical components are provided by CHNT
5. Human intelligent control system, simple operation, more efficient
6. Import terminal with shake safety, durable and waterproof
7. All roller adopt high quality alloy steel with high hardness and good wear resistance to improve the service life
8. The machine can realize continuous production, high efficiency, can input 99 batches at the same time
9. Oil cylinder spring USES the German high quality import spring, spring warranty for one year
10. The strict test run before delivery, powerful guarantee the quality of the machine
Joonna 2015 latest GT4-12A straightening and cutting machine for rebar and wire steel with fast straightening and cutting speed, adopting advanced straightening standrad, it is the ideal rebar processing equipment. CHOOSING US,CHOOSING QUALITY AND PERFECT AFTER-SALE SERVICE!
CNC Steel wire Straightening & Cutting machine /Automatic Straightening & Cutting machines/ wire straightener and cutter related products
Mode | GT4-12A | GT4-12B | GT4-12C | GT4-12D | GT4-14D | GT4-14A-1 |
Common carbon steel | Φ4-12 | Φ4-12 | Φ4-12 | Φ4-12 | Φ4-14 | Φ4-14 |
III screw steel | Φ4-10 | Φ4-10 | Φ4-10 | Φ4-10 | Φ4-12 | Φ4-12 |
Cut length(mm) | 300-9000 | 300-9000 | 300-9000 | 300-9000 | 300-9000 | 300-9000 |
Traction speed(meter/min) | 30-40 | 30-40 | 30-40 | 30-40 | 45-48 | 45-48 |
Cutting tolerance | ±10mm | ±10mm | ±10mm | ±10mm | ±10mm | ±10mm |
Straightening tolerance | ±2mm | ±2mm | ±2mm | ±2mm | ±2mm | ±2mm |
General power (kw) | 9 | 9 | 7.5 | 7.5 | 9 | 9 |
Voltage | 380v | 380v | 380v | 380v | 380v | 380v |
Weight(kw) | 370 | 580 | 310 | 340 | 430 | 890 |
JOONNA MACHINERY CO., LTD, is founded in 1988, focusing on rebar cutting machine, bending machine and rebar straightening machine, and other rebar processing equipment.With 26 years’ development, today’s company integrates design, R&D,production, sales with independent rights to export and import.
