Specifications
Down Hanging LED ceiling light1.Top SMD3528 45w 30*120CM big size
2.Super-thin panel light 15MM
3.Non-waterproof use indoor
2012 Popular Indoor Lighting product SMD3528 45W 30*120CM Ceiling Light Down Hanging
1.Specification:
size 300 * 1200 * 15MM
Material: aluminum alloy + PMMA
Lamp color: silver oxide sand
Source of color: warm white ( color: White ( 2900-3200K ), color temperature: 5500-6500K )
Source: single 3528 0.06W
The number of LED: 660pcs
Weight: about 6.8KG
Service life : 50000 hours
Insulation: 3000V
2. Power supply specifications
Input voltage: 85-265V 50-60Hz / AC
Rated power: 45W
Output voltage: 48V / DC
Output current: 0.32A
3. Environmental specifications
Working temperature: - 20 to 40 DEG C.
Storage temperature: - 20--80 C
Surface temperature: 30--40 C
The application of humidity: 10 - 90%RH
Protection grade: indoor products.

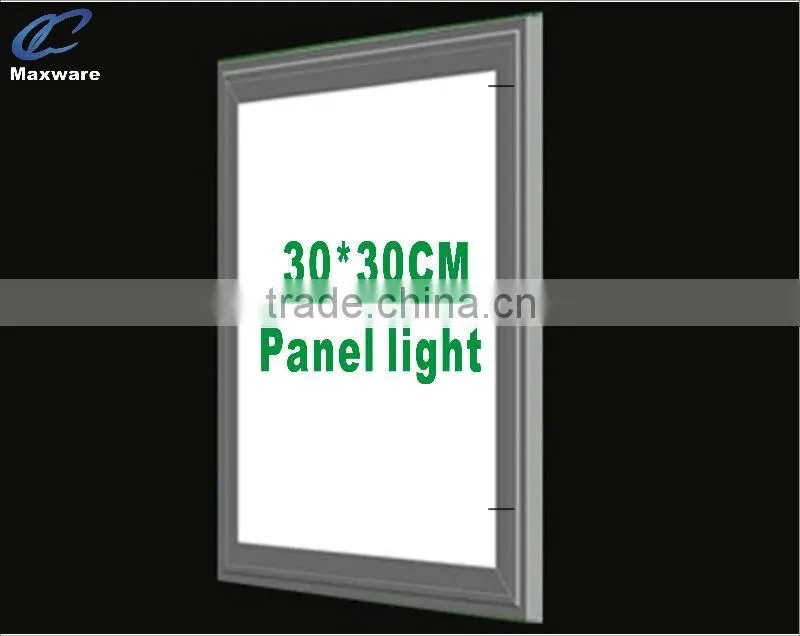

4.All size panel light datas:
| Maxware LED Panel Light Datas | |||||||
| Item | Size/MM | SMD Type | LED QTY | Power | Weight/NG | Input | Output |
| MW-PL-18 | 300*300*15 | 3528 | 240Pcs | 18W | 2kg | AC85-265V | DC48V |
| MW-PL-22 | 300*600*15 | 300Pcs | 22W | 4kg | |||
| MW-PL-45 | 300*1200*15 | 660Pcs | 45W | 6.8kg | |||
| MW-PL-40 | 600*600*15 | 600Pcs | 40W | 6.5kg | |||
| MW-PLR-12 | φ180*13.5 | 2835 | 108Pcs | 12W | 754g | AC85-265V | DC19.2V |

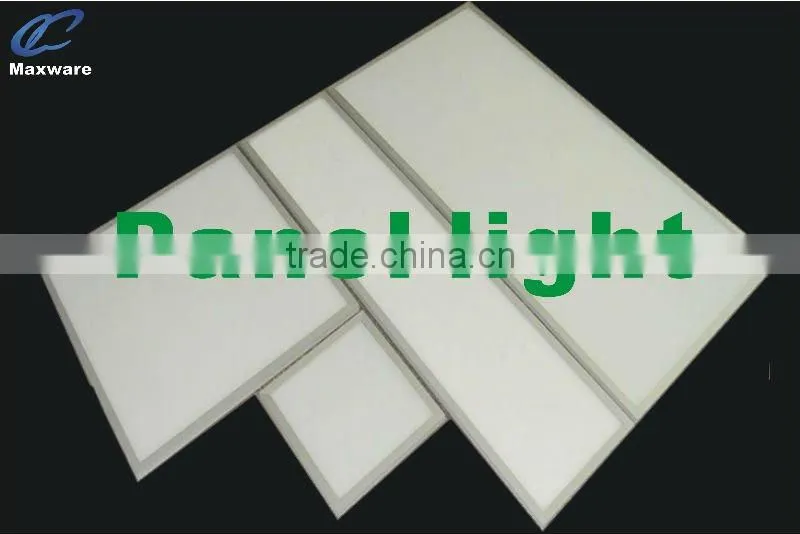

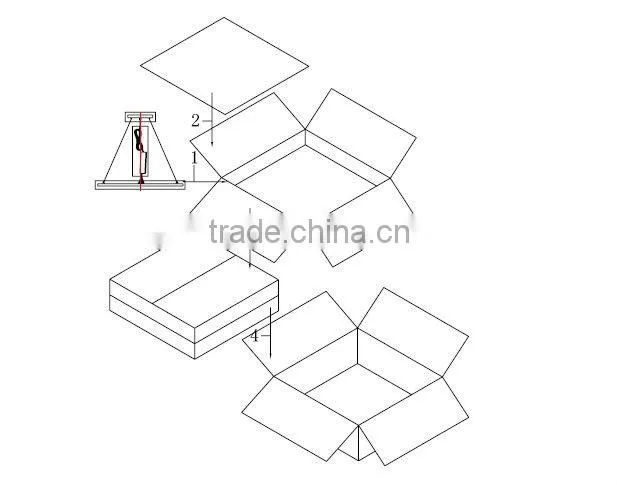

5.physical Product and Packing Show:

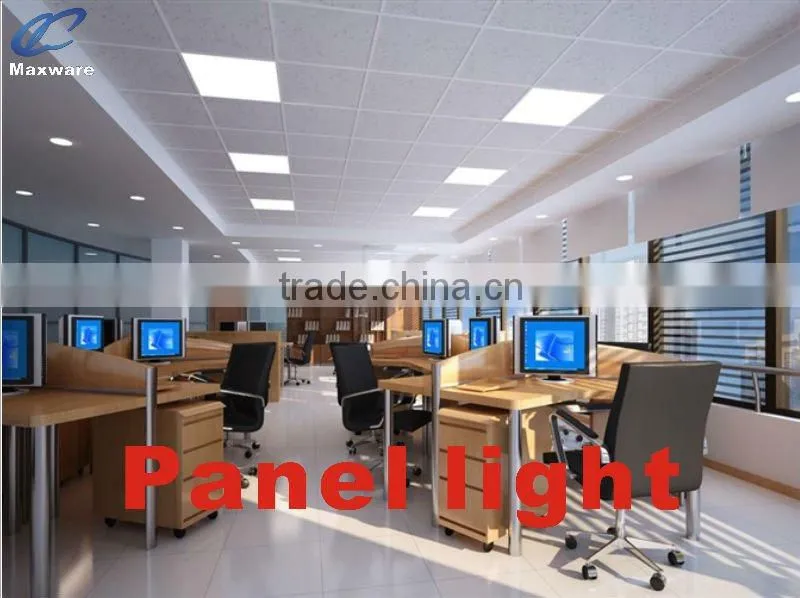

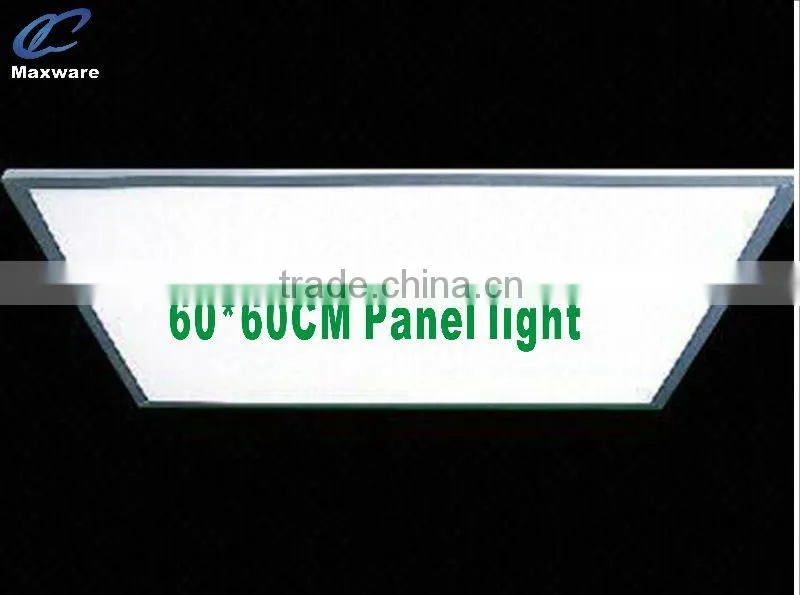

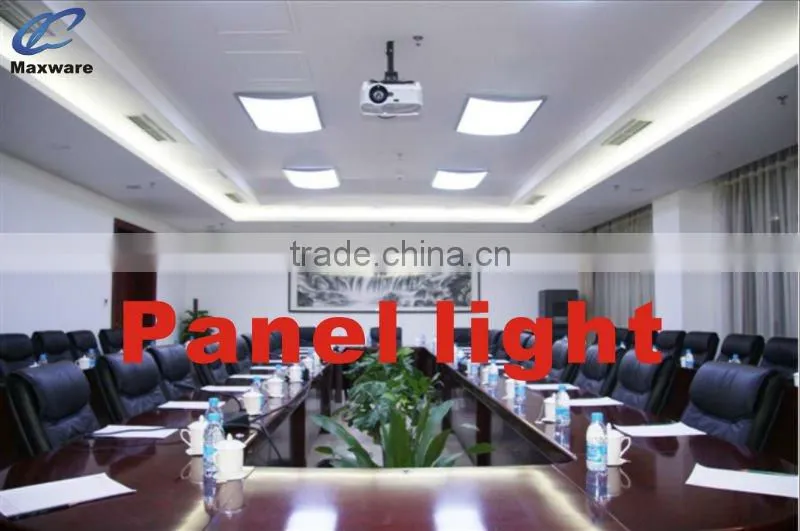

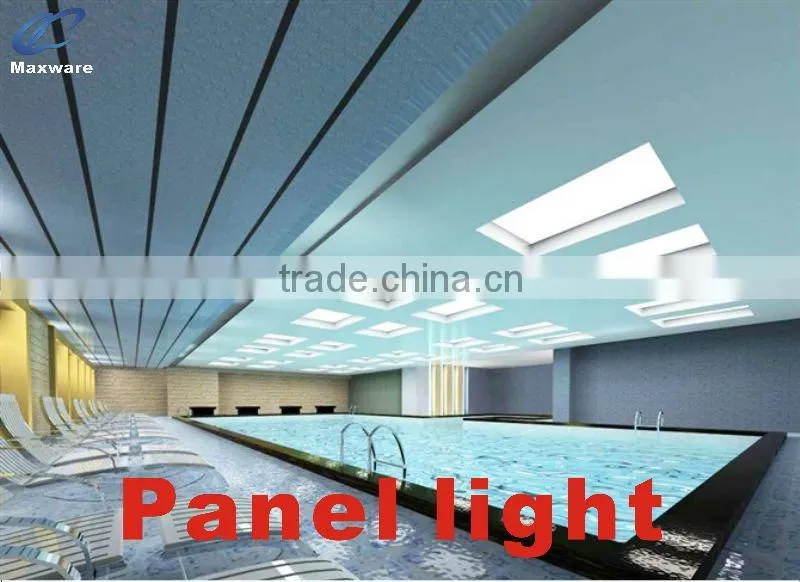

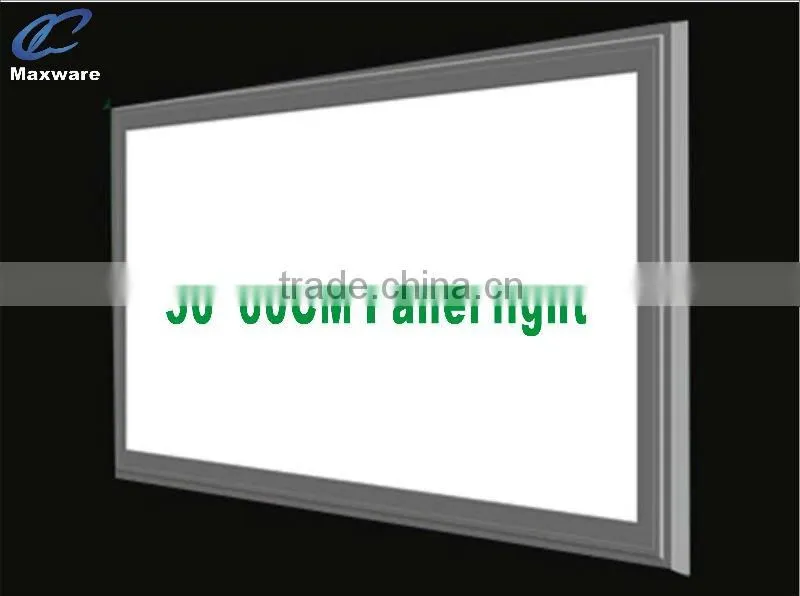

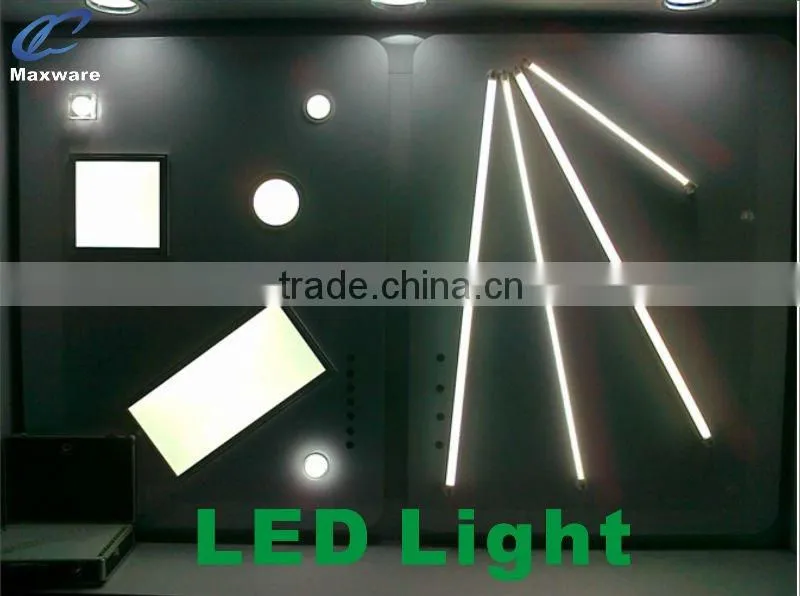

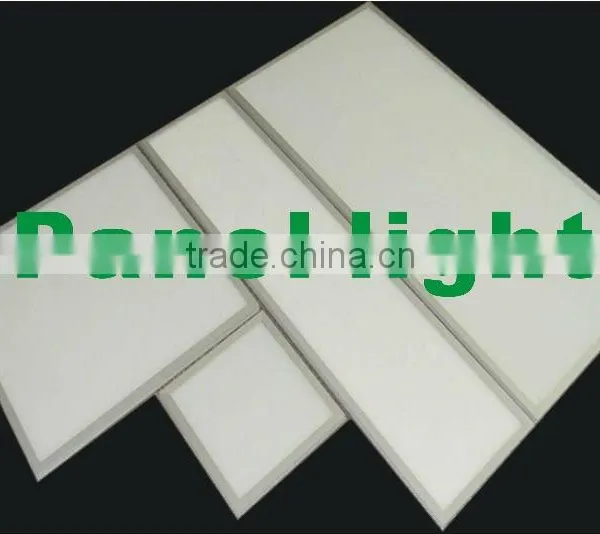

6.More picture show the Product:
