Specifications
4 in 1 Multi Gas Detector for CH4/LEL, CO, O2, H2SLarge LCD display
Sound & Light alarm
PL123450 battery
OEM/ODM service

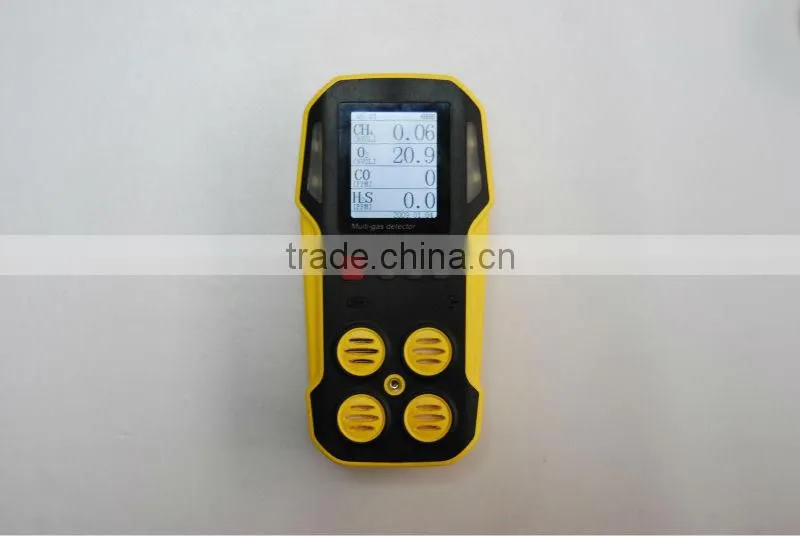

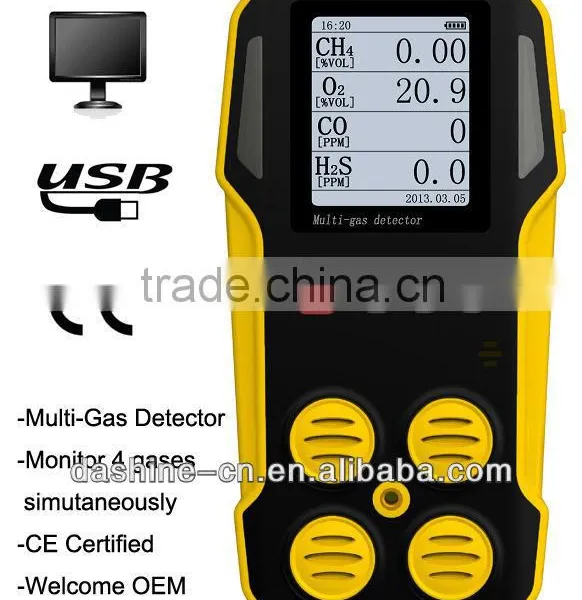

4 in 1 Multi Gas Detector for CH4/LEL, CO, O2, H2S
Besides our own gas detectors, we have customized many kinds of gas detectors for our customers from all over the world. We can customize plastic enclosure, pcb and the whole gas detector according to customer's requirements.
Application:
it’s used in industrial or mining applications, including underground Coal Mine, petrochemical, metallurgical, chemical, municipal gas, and other places at the scene detection.
Technical specification: ( 1ppm=1X 10-6 )
Model NO. |
DSW4 |
Measuring range |
CH4: (0.00—5.00)%Vol LEL: (0 ~ 100)%LEL O2: (0~30.0)%vol, (0~100)%vol H2S: (0 ~ 100)ppm CO: (0~1000) ppm |
Resolution ratio |
CH4: 0.01%vol LEL: 1%LEL O2: 0.1%vol H2S:1ppm CO: 1ppm |
Display |
Liquid Crystal Display(LCD) |
Response time |
CH4: ≤20S ( T90 ) LEL: ≤20S ( T90 ) O2: ≤35s(T90) H2S: ≤45S ( T90 ) CO: ≤45s (T90) |
Alarm way |
Sound, light/Audible & Visual |
Alarm sound & light |
≥75dB; ≥20M visible |
Alarm point |
can be set in full proceed |
Continuous working time |
≥12hours |
Working current |
95mA |
Sensor lifetime |
≥2year( CO, O2, H2S ) ≥1year( LEL,CH4 ) |
Battery model |
PL123450 |
Charging time |
4-5 hours |
Protection degree |
IP65 |
Size & Weight |
130*66*30mm, 500g |
