Hand Held CO Gas Meter With High Quality, Long Lifetime and Battery Operation

This vehicle co gas alarm can detect the co gas concentration in the car environment, and make sound and light alarms when the ambient concentration is over the warning values, then prevent users from co gas damages. ( detailed alarm values, please see the Alarm concentration)

This device couldn’t be used to detect the natural gas (methane ), propane, butane or other combustible materials.  Designed by professional engineers, its unique and attractive appearance is harmonious with the whole vehicle cars.

     Technical specification

n   Gas sensor:

Japan’s NEMOTO sensor, good quality, more 5 years lifetime, and replaceable

n   Power and Battery:

Using 2 CR2032 button cells for the power, save energy and freely to load.

n   Battery/cell lifetime :  6—8 months in the state of open mode.

n   LCD Display:  show the power situation and co concentration value

n   LED light:  blue power indicator and red alarm light

n   Buzzer:  sound alarm. 75dB/1m

n   Other parameter:

u  static current: < 90uA     alarm current: < 25mA

u  Working state:  temperature: 4℃-38℃, humidity: 25%--85%

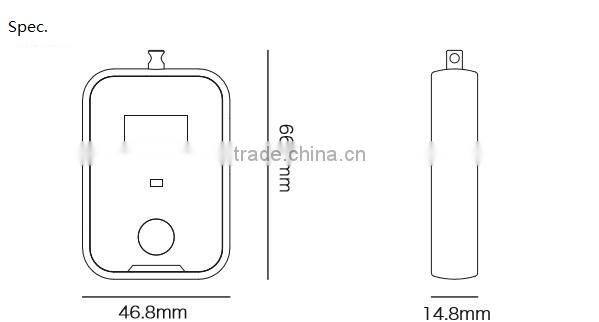

n   Appearance Size : 66.8*46.8*14.8 mm

n  Weight :  50.8g (with battery); 45g (without battery)

n  Packing list:

n  Suggestion for the using place:

Can be hang on the car rearview mirror or fixed to other places which is out of driver’s slight.

    The treatment and attention after alarm is making

 Alarm concentration reference

Using tips:

n  This device’s accuracy will be influenced by itself body, installation environment’s temperature, humidity and other factors. So the best installation environment is:

n  temperature: 20°C±5°C;

n  humidity: 50%, don’t put in the air of the humidity is over 80%

n  far away from the places where it has phone and other electromagnetic interference;

n  Keep it away from the corrosive or harmful substances;

n  Don’t put it in high co concentration environment in order to save its lifetime.
