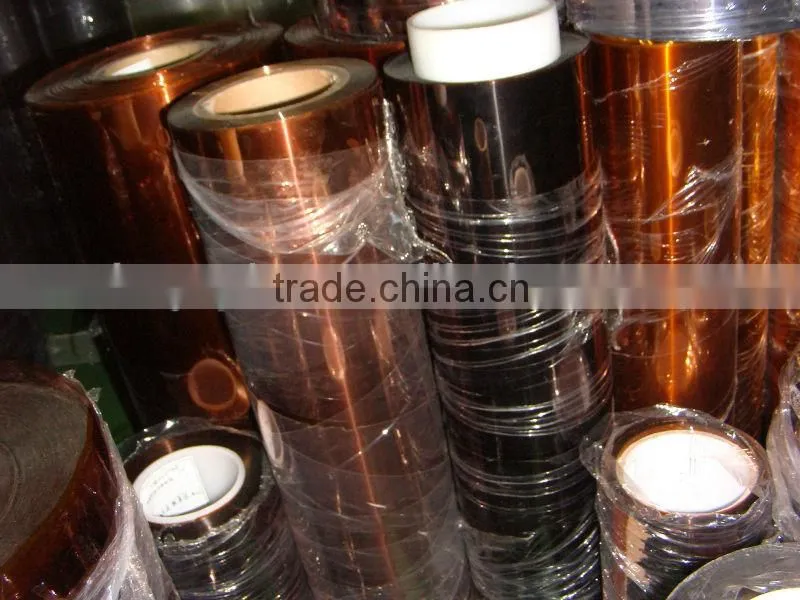

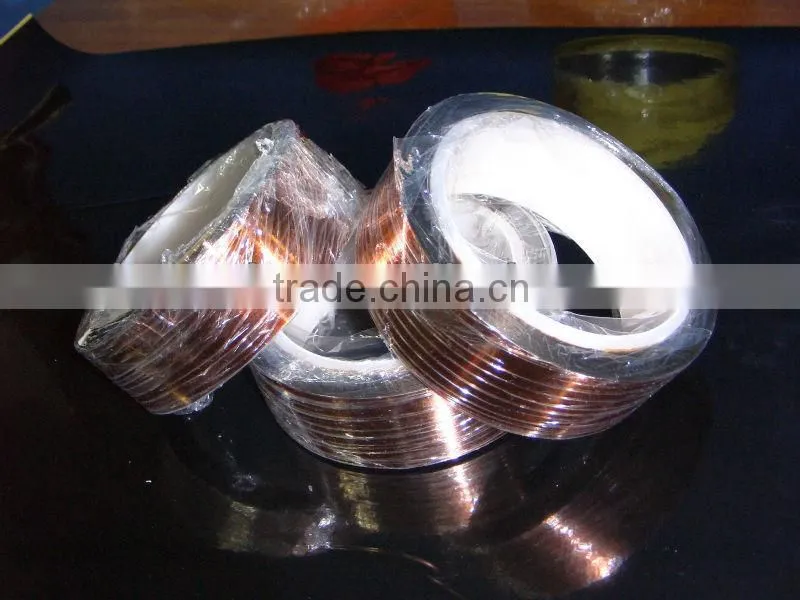

Polyimide Tape for 3D Printer

Name: Polyimide Tape for 3D Printer
Brand: Renhe Brand
SKU: 120047537
Availability: InStock

Negotiable MOQ: 1 Roll (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Polyimide

Use:

Masking

Adhesive Side:

Single Sided

Kunshan Yuli Electronic Materials Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Material Polyimide

Use Masking

Adhesive Side Single Sided

Adhesive Silicone

Adhesive Type Pressure Sensitive

Feature Heat-Resistant

Design Printing No Printing

Place of Origin Jiangsu, China

Brand Name Renhe Brand

Specifications

PI tape/Polyimide Silicone tape/high temperature adhesive tape
for 3D printers,E-Insulation transformer,PCB. roll & die cutting

PI tape/Polyimide Silicone tape/high temperature adhesive tape
High temperature&Voltage

for 3D printers, E-Insulation
transformer manufacture, PCB gold finger protect

Specification: 1. Polyimide base film coating with high temperature Silicone adhesive;

2. High temperature and corrosion resistance;

3. Strong adhesion;

4. Soft and proper and no residue after peeling off.

5. For electronic manufacturing industry.

Backing	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide	Polyimide
Adhesive type	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone	Silicone
Backing Thickness(mm)	0.02	0.025	0.025	0.025	0.05	0.05	0.075	0.1	0.125
Adhesive thickness(mm)	0.025	0.025	0.035	0.045	0.03	0.05	0.045	0.05	0.055
Total Thickness(mm)	0.045	0.05	0.06	0.07	0.08	0.1	0.12	0.15	0.18
Color	amber	amber	amber	amber	amber	amber	amber	amber	amber
Adhesive strength(kg/25mm)	0.5~0.6	0.6 ~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7
Elongation (%)	14	14	14	14	26	26	40	68	85
Corrosion resistance	1	1	1	1	1	1	1	1	1
Heat resistance(°C)	258°C	258°C	258°C	258°C	258°C	258°C	258°C	258°C	258°C
Length(m)	50	50	33	50	33	33	33	33	33
Width(mm)	2~500 according to the customers’ requirement
