DS907A 3 Phase Latching Relay,120A Phases Relay

DS907A 3 Phase Latching Relay,120A Phases Relay thumbnail-1
DS907A 3 Phase Latching Relay,120A Phases Relay photo-1
US$ 12.58 - 14.18 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Ramway
Model Number:
DS907A 120A
Contact Supplier Request Quote Chat Now
Guangxi Ramway Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name Ramway
Model Number DS907A 120A
Theory Electromagnetic Relay
Usage Other, Electrical Meter,Compound Switch,AMR System, Electrical Meter,Compound Switch,AMR System
Size Miniature
Protect Feature Epoxy
Contact Load High Power

DS907A 3 phase latching relay,120A phases relay

DS907A 3 phase latching relay,120A phases relay



Product Description





Relay 120A ,double coils for Electrical Meter

Specifiaction

Contact Current

120A/250VAC

Contact Form

3A,3B

Contact Resistance

Max.1mΩ(12VDC 1A)

Max.Switching Current

120A

Max.Switching Voltage

440VAC/110VDC

Max.Switching Power

30000VA

Electrical Life

1x104 OPS

Mechanical Life

1x106 OPS

Insulation Resistance

1000MΩ(at 500VDC)

Dielectric Strength

Between Contact &coil

5000VAC 1min

Between Contacts

2500VAC 1min

Operation Time

Max.20ms

Comeback Time

Max.20ms

Ambient Temp.

-40~+70°C

Humudity

98%RH,+40°C

Vibration Resistance

10-55HZ,1.5mm(DA)

Termination

quick connect

Weight

248g





















































Coil Data

Nominal Coil Voltage

Single Coil Resistance

Dual Coil Voltage

6VDC

15Ω

2x7.5Ω

9 VDC

28Ω

2x14Ω

12VDC

45Ω

2x22.5Ω

24VDC

200Ω

2x100Ω



































Ordering info

DS907A

Relay model

                        A

120A

12V

D

T



A,B,C,D,E etc.



Connecting form

Terminal type

40A,50A,60A,70A,80A,90A,100A,120A

Coil voltage

6,9,12,18,24,48VDC

Coil type

S=single,D=double

Contact material

D-AgCdO(12)   T-AgSnO2



Shipping&payment

1.MOQ:1 PCS

2.Samples:(1)1 PCS Free.

                    (2)samples freinght should be paid by buyers.

3.Packing detail:(1)100 PCS per carton

                       (2)carton size:40x35x35(cm)

                       (3)gross weight:26kg

4.Lead time:35 days after sample confirmed and deposit paid(sample will be sent within 7 workdays).

5.Delivery:FOB Shenzhen

6.Payment details:30% T/T deposit,balance paid by copy of B/L.West Union



Usage:Prepayment energy meter,AMR system,Compound switch,Power compensation devices,Smart meter(Smart grid)

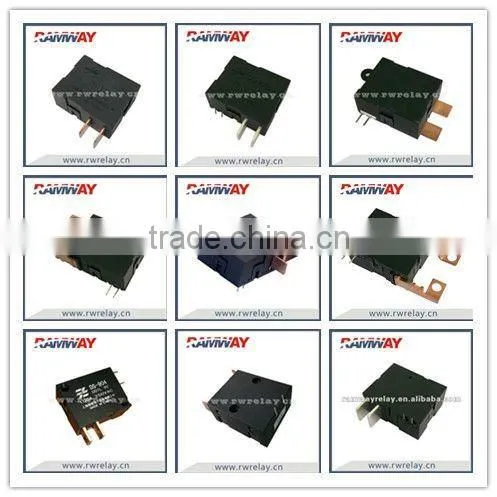

Latching Relay Models

DS907A 3 phase latching relay,120A phases relay

Packaging & Shipping

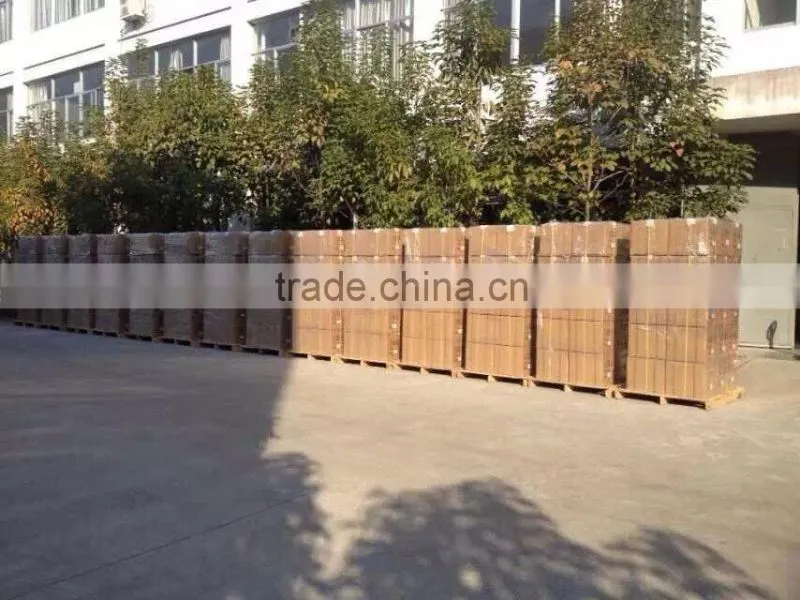

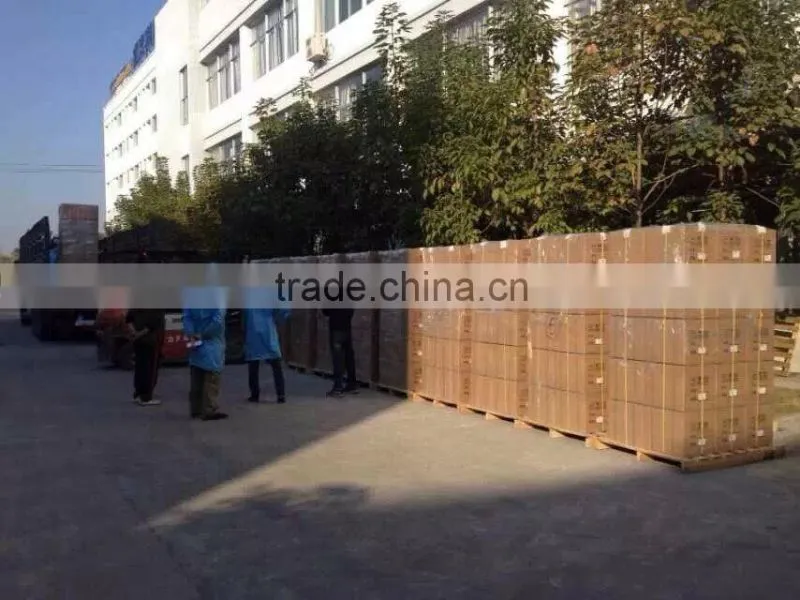

 Packaging

DS907A 3 phase latching relay,120A phases relay

DS907A 3 phase latching relay,120A phases relayDS907A 3 phase latching relay,120A phases relay

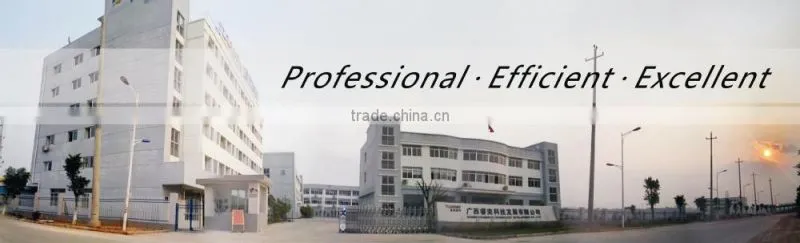

Company Information

 DS907A 3 phase latching relay,120A phases relayDS907A 3 phase latching relay,120A phases relayDS907A 3 phase latching relay,120A phases relayDS907A 3 phase latching relay,120A phases relay
